Rod Set, Hurricane, 144mm 20mm pin, 4-cyl - Hurricane Speed&Performance

  • Competitive Price
  • Quality Assurance
  • MOQ：100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Key Words:VW 1.8T 144x20mm Forged connecting rods
  •           Connecting rod i-beam vw 1.8t
  •           Forged 4340 steel connecting rod for vw
  •           VW Audi 144mm race connecting rod manufacturer
  •           VW car engine performance connecting rods factory in China
  • Product Details
Brand: Hurricane
Engine: VW Scirocco/Jetta/Golf 1.8L/1.8T
Part Type: Connecting Rods
Center to Center Length: 144mm/5.670"

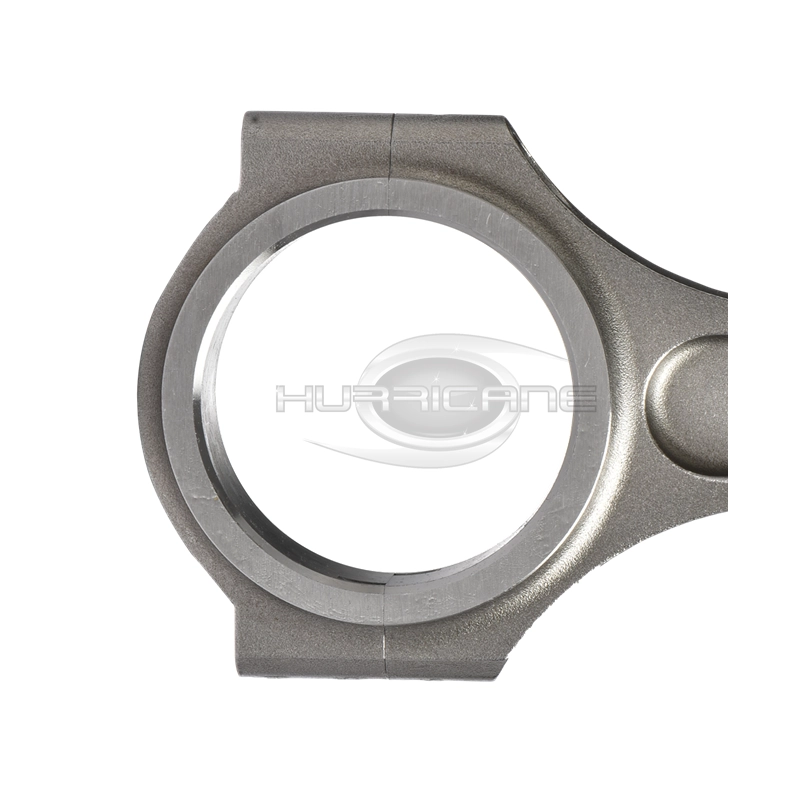

Big End Bore Diameter: 50.60mm/1.992"
Big End Width: 24.89mm/0.980"
Small End Bore Diameter: 20mm /0.787"
Small End Width: 21mm/0.827"
Beam Style: I-beam
Connecting Rod Bolt Diameter: 3/8"
Quantity :4pcs/set
Approximate Connecting Rod Weight: 600g/piece
Advertised Horsepower Rating: 750hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

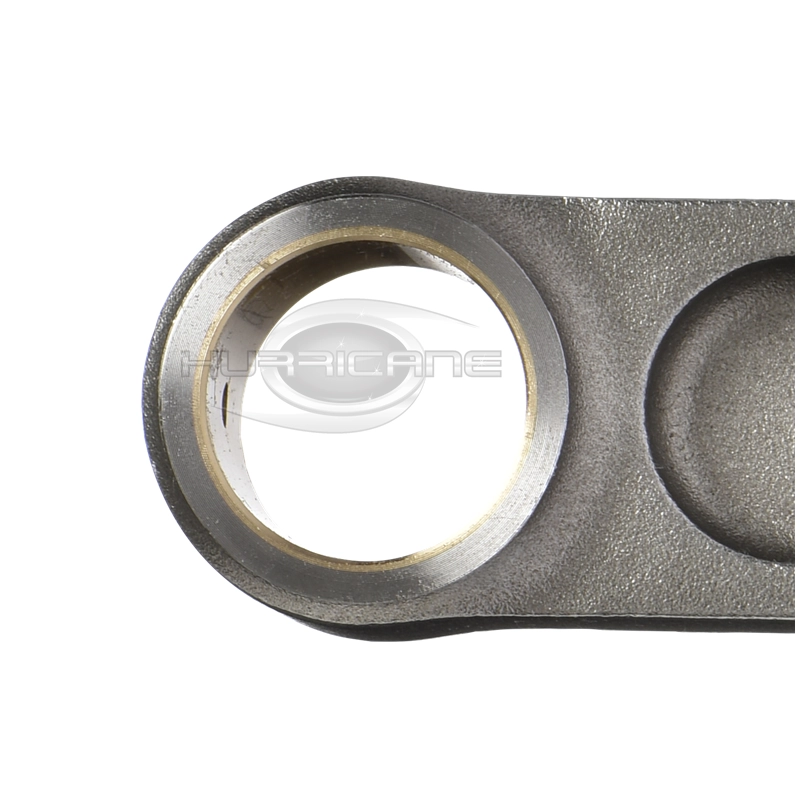

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

VW 1.8T 144x20mm Forged connecting rods Description

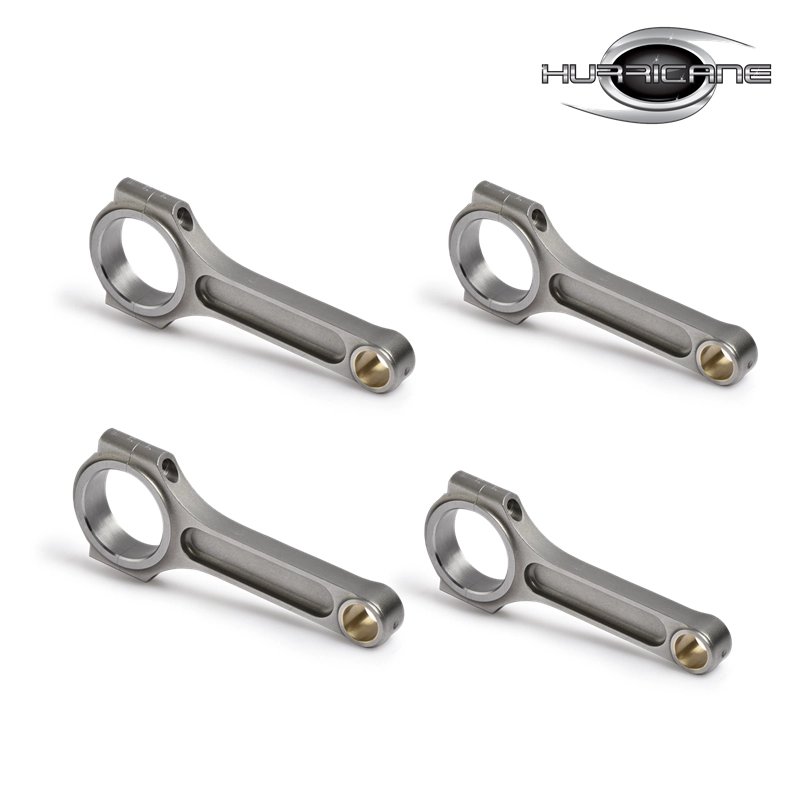

Forged Hurricane customs connecting rod set for 4-cyl VW/Audi motors with 144mm length and 20mm wrist pin, The small end width is 21.9mm.

Hurricane fully finish all rods with advanced CNC machine in China.  Don't accept inferior quality rods machined overseas to unknown tolerances. All tolerances will be noted on drawing when you make order, included:
Main size: Center to center length: +/- 0.05mm;
Big end bore:+ 0.013mm;
Small end bore:+ 0.005mm;
Shoulder width:+/- 0.03mm;
No note tolerance:+/-0.15mm.

These rods engineered from high tensile 4340 steel material , per rod installed with bronzed bushing for floating piston pin . Built with I-beam shape to handly high horsepower , forged with raised caps to reduce stress better .



Per set rods weight matched within 2 gram , and sold as 4 pieces per set.

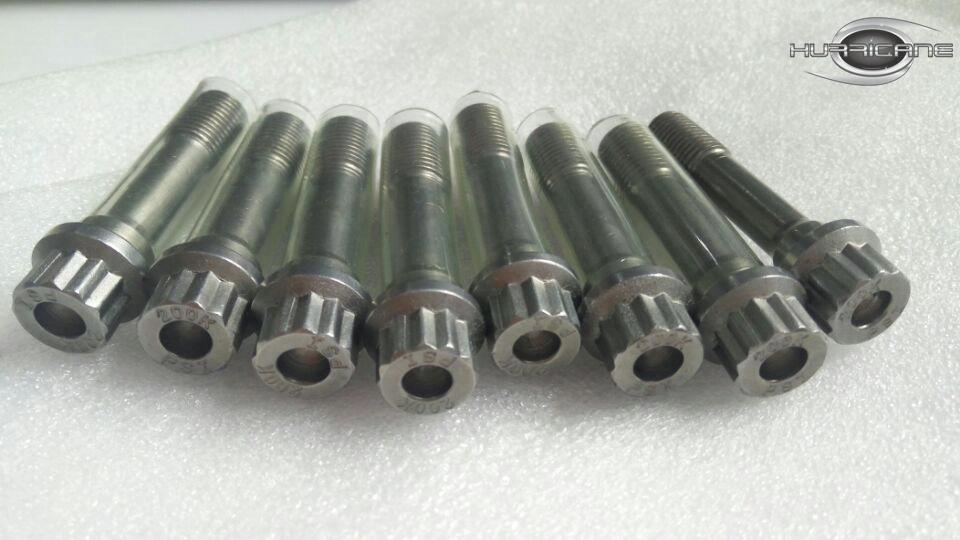

Hurricane can supply replacement bolts as well, no moq limits,  welcome to contact us to learn about more details .



If you have more questions, you could find on FAQ, or leave an message .
Hot Tags : connecting rod i-beam vw 144mm Audi/VW 1.8T Connecting Rods forged 4340 steel connecting rod for vw HUR34-001Y5670 VW 1.8t 144mm forged rods
