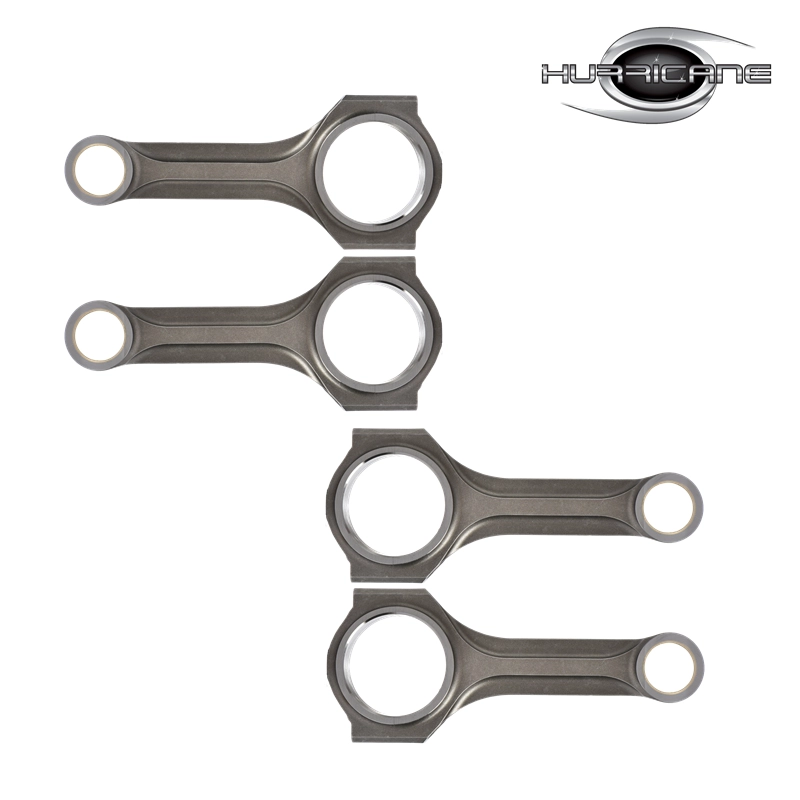

Renault Clio Sport F7P F4R F4R X beam Connecting Rods

Renault Clio Sport F7P F4R F4R X beam Connecting Rods

  • Engine Model: Renault Clio 1.8-2.0 F7P F7R F4R
  • Forged 4340 steel
  • 100% CNC Machined
  • Design: X-beam
  • MOQ: 80 pieces/20 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: Renault Clio F4R 144mm connecting rods
  •           X-Beam Connecting Rods (4 PCS) for Renault F4R F7R
  •           Forged con rods for Renault F4R & F4R-T
  •           Renault Clio RS 2.0Ltr 16V F4R connecting rods
  •           Performance F4r Connecting Rods Supplier Hurricane factory

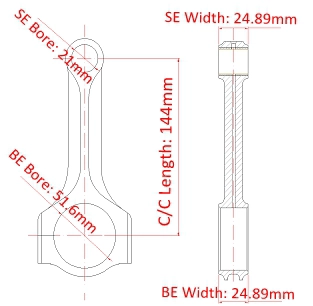

Renault Clio F4R 144mm Connecting Rods  Main Sizes

 Brand: Hurricane*
 Center to Center Length: 144mm/5.670"
 Big End Bore Diameter: 51.6mm/2.031"
 Big End Width: 24.89mm/0.980"
 Small End Bore Diameter: 21mm /0.827"
 Small End Width:  24.89mm/0.980"
 Beam Style: X-beam

Renault Clio RS 2.0Ltr 16V F4R connecting rods Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  700HP
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

X-Beam Connecting Rods (4 PCS) for Renault F4R F7R Descripition

The connecting rod is the vital link between the piston and power. When engine output is increased, the demands placed on the connecting rod increase as well. To ensure engine reliability in all conditions, original connecting rods should be replaced with performance specification parts. Renault Clio F4R 144mm connecting rods are manufactured from high strength One-piece 4340 (EN24) steel and machined to exacting tolerances. The Renault Clio RS 2.0Ltr 16V F4R connecting rods are Multi Stage Heat Treated, CNC machined and Shot Peened for maximum strength, dimensional stability, and fatigue life.

Hurricane 144x21mm connecting rods fits for:

Renault Clio, Megane, Laguna, Scenic, Espace, engine code F7P, F7R, F4R.

Our forged con rods for Renault F4R & F4R-T delivery time may depending on stock and hurricane current production order situation, so please feel free to confirm with hurricane team.

Renault Clio Red Car
