Pontiac 455 6,625" 4340 I Beam Connecting Rod

Pontiac 455 6,625" 4340 I Beam Connecting Rod

  • Forged 4340 steel
  • Fully CNC Machine
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Pontiac Connecting Rods
  •             Pontiac 6.625" Forged Rods
  •             Forged I-Beam Connecting Rods
  •             High Performance I Beam Pontiac Rods

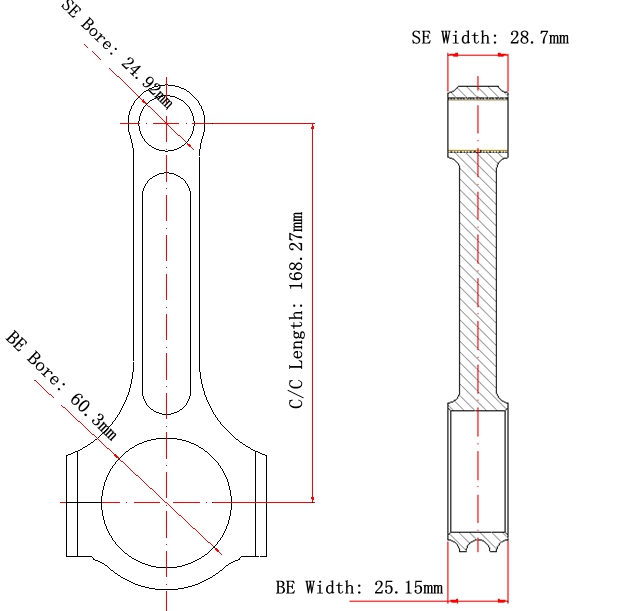

Pontiac 455 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 168.27mm/6.625"
 Big End Bore Diameter: 60.3mm/2.374"
 Big End Width: 25.15mm/0.990"
 Small End Bore Diameter: 24.92mm /0.981"
 Small End Width: 28.7mm/1.130"
 Beam Style: I-beam

Pontiac 455 Connecting Rods Features

 Connecting Rod Bolt Diameter  7/16"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 8 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Pontiac 455 Connecting Rods Description

Pontiac 455 Connecting Rods engineered from high tensile forged 4340 steel material, and built by I-beam shape for high strength , weight matched and packed with 8pcs/set .



All the Pontiac 455 forged rods 100% finished by CNC machine ,fully shot peened and honed to meet high quality standard .

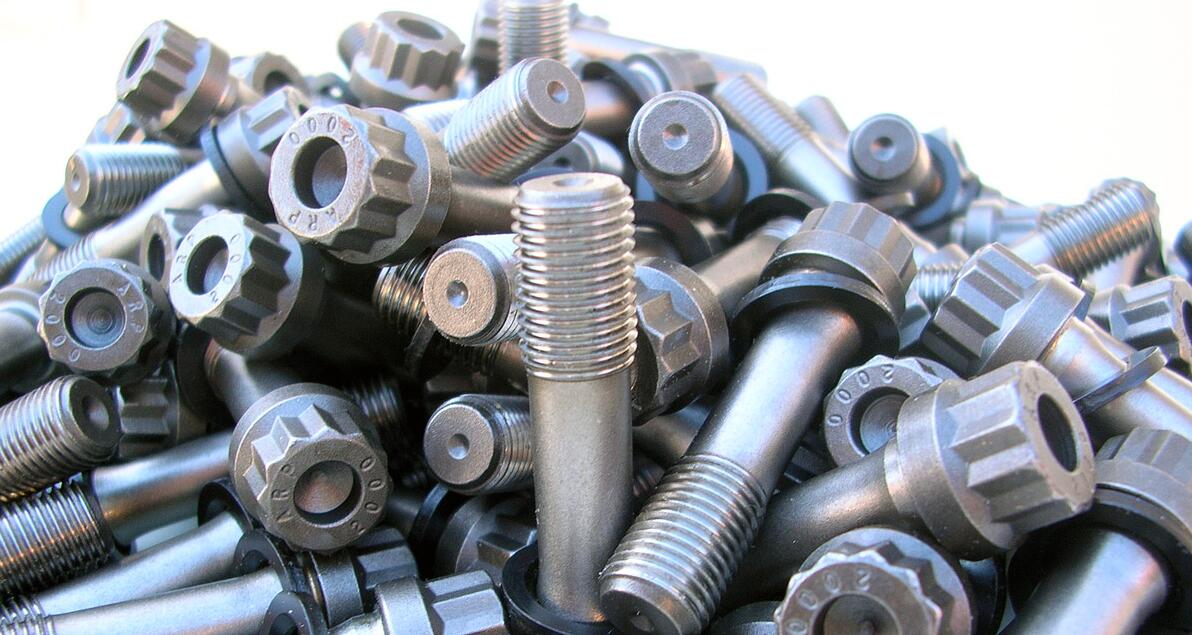

All these rods are suitable for standard genuine ARP 7/16" bolts . 

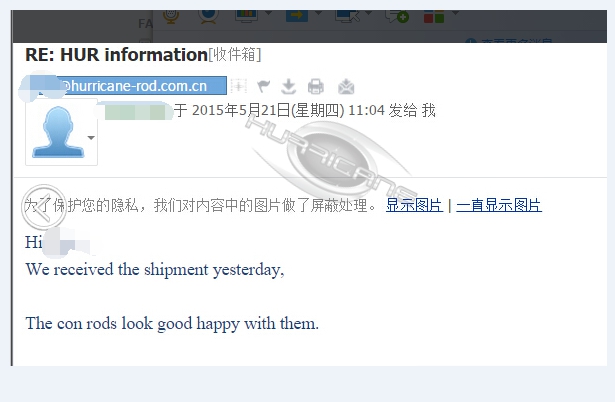

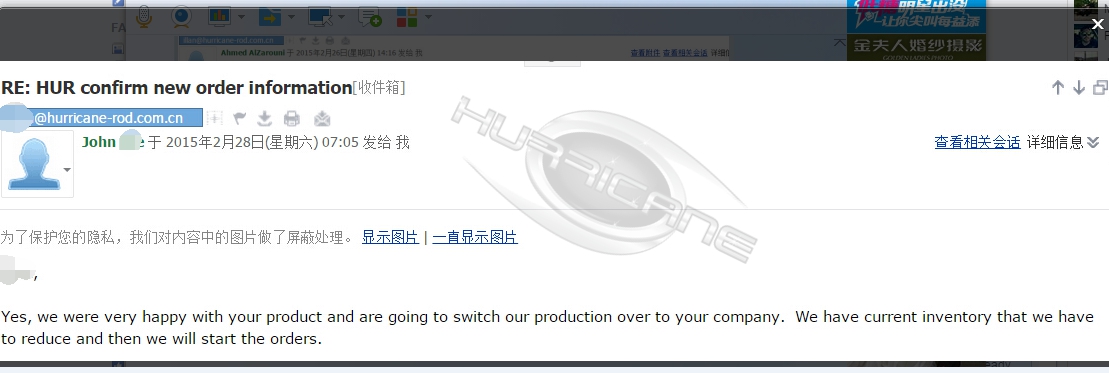

Customer Feedback for Connecting Rods 




We are looking forward to receiving the quality feedback from you .

Chengdu hurricane speed and performance co., ltd
