Peugeot 106 GTI S16 TU5J4 4340 (40CrNiMoA) Forged Steel I-Beam Conrod

Peugeot 106 GTI S16 TU5J4 4340 (40CrNiMoA) Forged Steel I-Beam Conrod

  • Vehicle : Peugeot 106 GTI S16
  • Material : 40CrNiMoA(4340) Forged Steel
  • Bolts : 3/8"
  • Competitive Price
  • High Performance
  • Beam Style : I-beam
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Peugeot 106 Engine Connecting Rods
  •            Peugeot 106 C/C 137.75mm Steel Rods
  •            Peugeot 106 GTI S16 4340 Forged Conrods

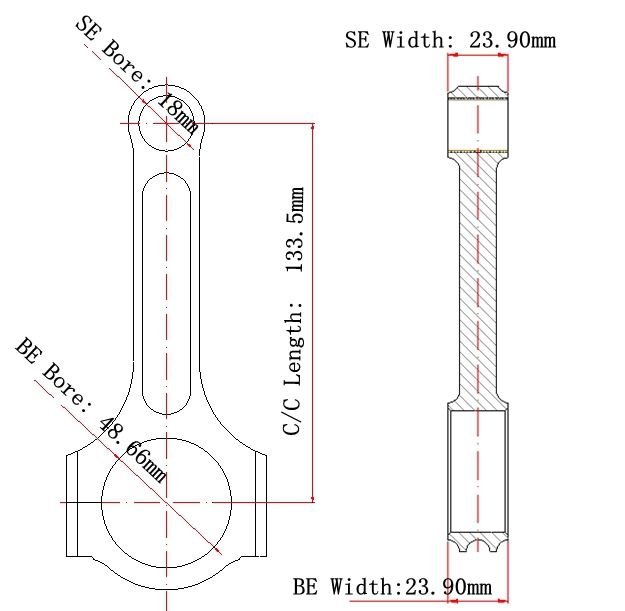

Peugeot 106 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 133.5mm/5.256"
 Big End Bore Diameter: 48.66mm/1.916"
 Big End Width: 23.90mm/0.941"
 Small End Bore Diameter: 18mm /0.709"
 Small End Width: 23.90mm/0.941"
 Beam Style: I-beam

Peugeot 106 Connecting Rods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  750hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Peugeot 106 Connecting Rods Description

Firstly , these connecting rods forged from high tensile 4340 steel material , engineered for high performance Peugeot 106 GTI S16 applications . Secondly , Per rod finished with polishing and shot peen to improve fatigue life , and also help to make the rods look more smooth and beautiful . Thirdly , Per small end installed high quality cooper bushing for floating pins, big end fitted with high strength dowels to keep the cap and beam can connect precisely . Finally , honed small end bore and big end bore to achieve high tolerance standard .

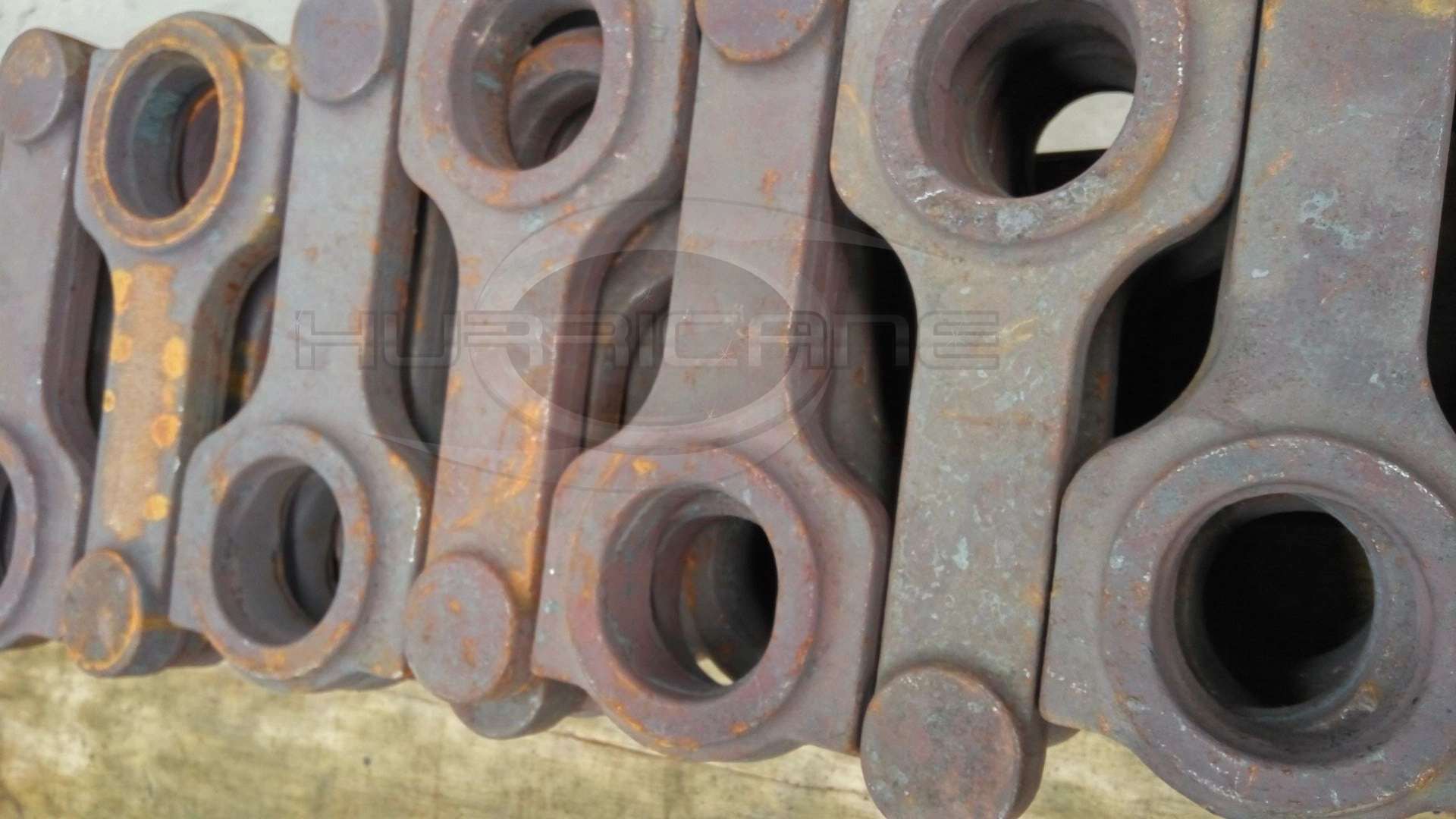

Peugeot 106 Connecting Rods 4340 Forgings

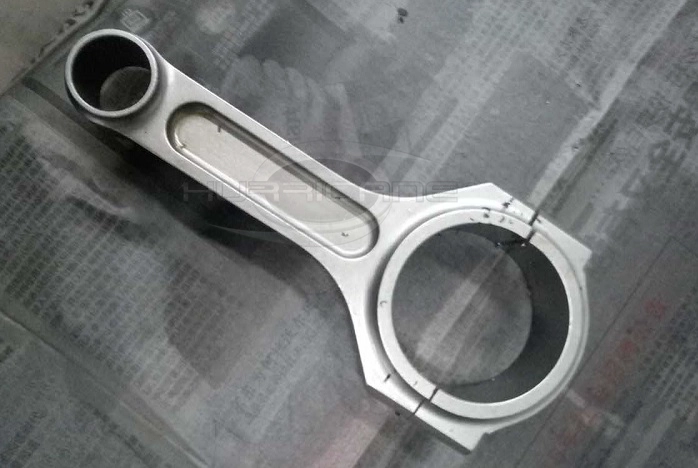

After Polishing



Those Forged Steel I Beam Conrod Set Valid For Models:

Peugeot 106 GTI 1.6 16v
Peugeot 206 1.6 16v
Peugeot 207 1.6 16v
Citroen Saxo 1,6 16V, C2 1.6 16V, C3 1,6 16v, C4 1.6 16V
Engine TU5J4, TU5JP4

FAQ :

Q:  Do you offer OVERSIZED RODS ?

A: Yes, Rods which are larger than our forging either in length or width, can develop a new die to suit your requirements, or also can be made from billet material. If you are interested in oversized rods , please feel free contact out experience staff to learn about more details .

Q: What is your balancing weight on big end and small end ?

A: Packed in balanced sets +/- 1 gram
