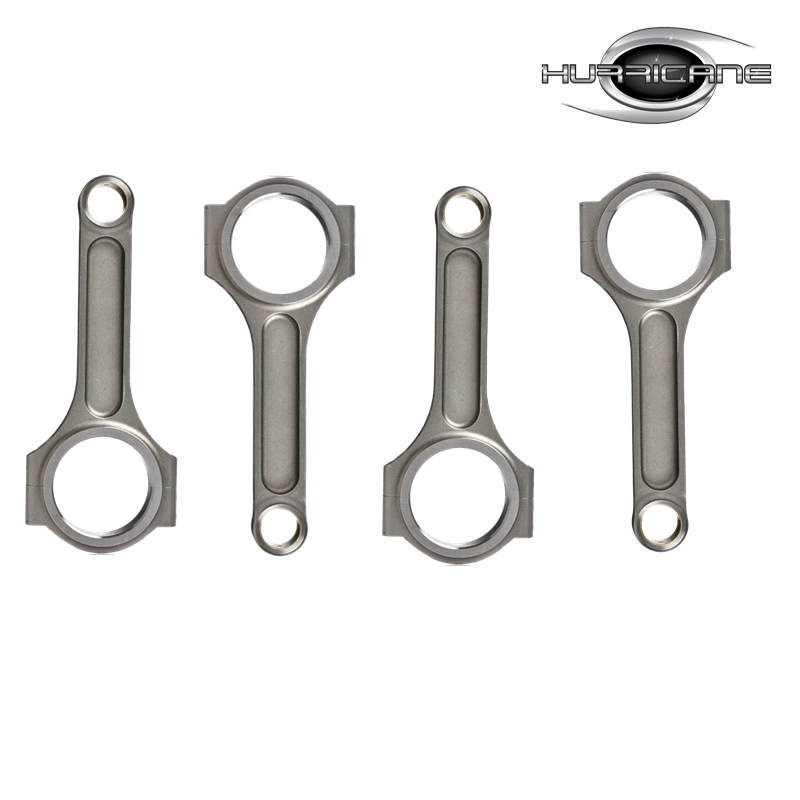

Opel/Vauxhall C20XE 2.0 Ltr 16V I beam connecting rods

Opel/Vauxhall C20XE 2.0 Ltr 16V I beam connecting rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Engine components manufactuer China
  •               Opel connecting rods
  •               143mm Connecting Rod
  •               Opel Vauxhall C20XE I beam conrods
  •               Forged 4340 Steel I-Beam Opel C20XE connecting rods

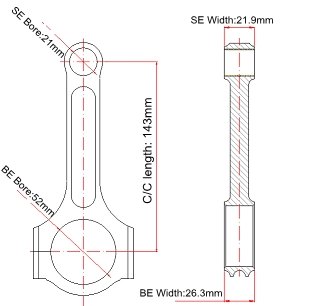

Forged 4340 Steel I-Beam Opel C20XE Main Sizes


 Brand: Hurricane
 Center to Center Length: 143mm/5.630"
 Big End Bore Diameter: 52mm/2.047"
 Big End Width: 26.3mm/1.035"
 Small End Bore Diameter: 21mm /0.827"
 Small End Width: 21.9mm/0.862"
 Beam Style: I-beam

Opel Vauxhall C20XE I beam Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  600g
 Advertised Horsepower Rating  750hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Opel Vauxhall 143mm Connecting Rods Description


Hurricane is a Engine components manufactuer in China, specialize in performance connecting rods for race engine applications. You can click our About us page to know more.
Those Opel Vauxhall 143mm "I" Beam connecting rods are manufactured from High quality 4340 forgings, closely monitored material mechanical properties for optimum performance and  finished in latest CNC machines. Forged 4340 Steel I-Beam Opel C20XE connecting rods install QAL10-3-1.5 Bronze wrist pin bushings, balance weight held to +/- 1 gram per set. Also perfectly fits for Opel Vauxhall Calibra Astra 2.0L C20XE C20LET Z20LET Y20LET VX220 engines.

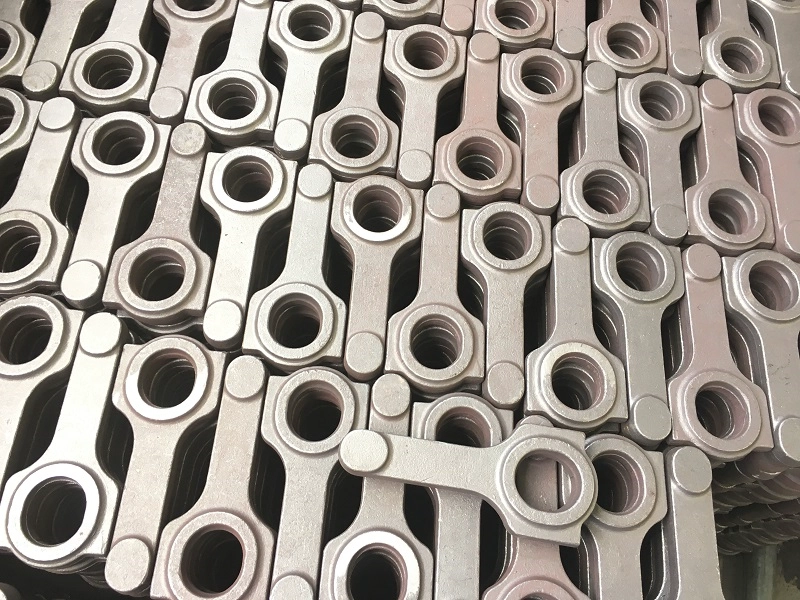

Note: Hurricane 4340 forgings/blanks



If you prefer H beam connecting rod design for Opel/Vauxhall C20XE 2.0 Ltr 16V engine application, click here to view H beam connecting rods for Vauxhall Opel C20LET/Z20LET/C20XE 2.0L, 21mm wrist pin.
Hurricane also suplly performance forged 4032 piston for Opel C20XE engine, Please check our product page: Forged pistons for the Vauxhall Opel C20XE 2.0ltr 16v engine, 86.5mm Pistons


Opel Vauxhall C20XE I beam conrods Package

Hurricane connecting rods are shipping by FedEx, DHL, TNT air-express, it is very fast and safe. delievry time aroud 3-7 days for most countries. for large quantity, we also provide shipping by sea services.



Welcome to leave us message  for any questions, or inquiry sample.
