Nissan forged 4340 steel H beam connecting rod for HR12 HR12DE engine

  • Competitive Price
  • Fully CNC Machine
  • Quality Assurance
  • Forged 4340 Steel or 4340 billet
  • MOQ：100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords:Nissan HR12DE connecting rods
  •          H-beam high performance conrods
  •          4340 forged stell hr12de rods
  •          Nissan performance connecting rod for hr12de engine
  • Product Details
Brand: Hurricane
Engine: Nissan HR12*
Part Type: Connecting Rods
Center to Center Length: 130mm/5.118"
Big End Bore Diameter: 43.00mm/1.693"
Big End Width: 18.72mm/0.737"
Small End Bore Diameter: 18.97mm /0.747"
Small End Width: 18.72mm/0.737"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 5/16"
Approximate Connecting Rod Weight: 387g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

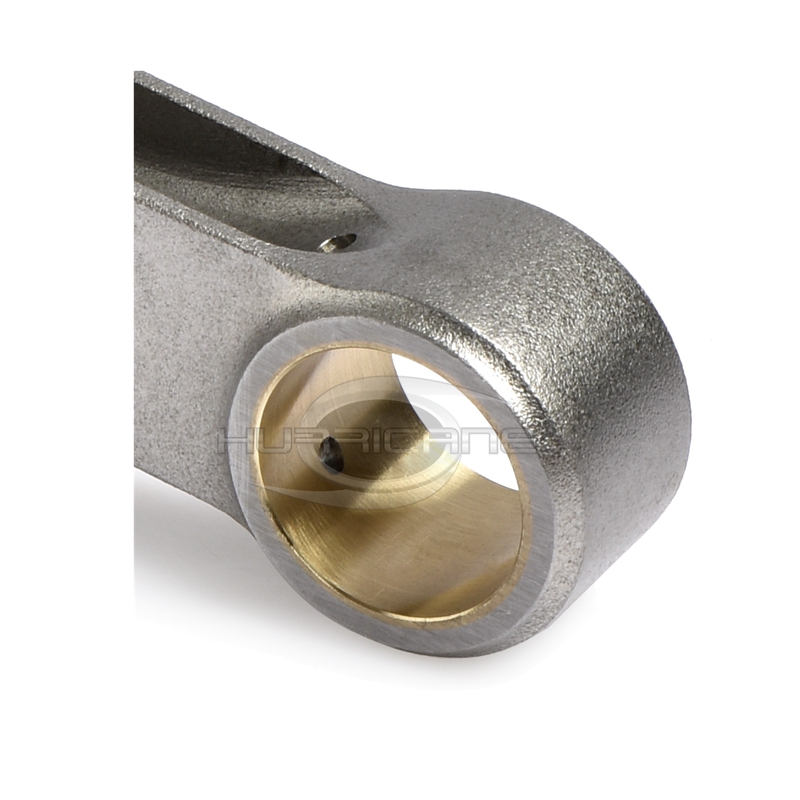

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Nissan HR12 H beam connecting rod is our newest rods which we are developing now ! Forged 4340 steel forgings with these specs:

1. material:40CrNiMoA   heat treatment:HRC34-38
2. copper bush:QAL10-3-1.5
3. dowel:40Cr,HRC40-42
4. surface:Extra shot peened non machined surfaces
5. no note tolerance:+/-0.15
6. bolt torque:5/16-48N*M
7. packing:4pcs/set,balance weight +/-1g

All Nissan connecting rods we produced before, includes:


Hurricane have decades of experience on designing and manufacturing racing connecting rods, and currently is known by more and more importers and purchasers around the world, such as USA, Canada, Australia, UK, Germany, France, Italy, Thailand, Singapore, Malaysia and so on. 



Welcome to click Nissan Connecting Rods series to explore more details .

If you can not find the ones which you are looking for, please feel free to contact us. 
Hot Tags : nissan forged rods h-beam rods nissan forged connecting rod nissan HUR42-001Z5118 Nissan HR12 connecting rods
