Nissan E15 137.14mm H beam Connecting Rod-High Performance 4340 EN24 H-Beam Conrod
- Forged 4340 steel
- Fully CNC machine
- Competitive Price
- Quality Assurance
- MOQ：100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 90-95 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords:NISSAN E15 Rods - Hurricanerods.com
- Nissan H beam forged 4340 connecting rod
- Forged conrods for Nissan E15
- E15 connecting rod forged 4340 h-beam
- Nissan E15 engine H-beam racing connecting rods
Brand: Hurricane*
Engine: Nissan E15
Part Type: Connecting Rods
Center to Center Length: 137.14mm/5.399"
Big End Bore Diameter: 43.01mm/1.693"
Big End Width: 21.84mm/0.860"
Small End Bore Diameter: 19.01mm /0.748"
Small End Width: 21.84mm/0.860"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: ~g per piece
Advertised Horsepower Rating: ~hp
Quantity: Sold as 4 pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

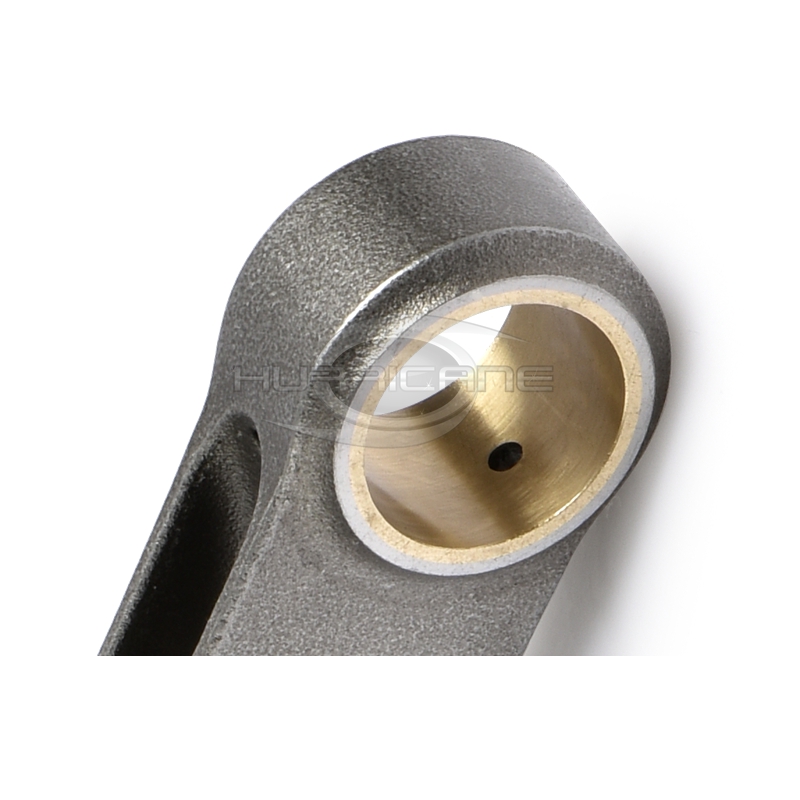

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
Engine: Nissan E15
Part Type: Connecting Rods
Center to Center Length: 137.14mm/5.399"
Big End Bore Diameter: 43.01mm/1.693"
Big End Width: 21.84mm/0.860"
Small End Bore Diameter: 19.01mm /0.748"
Small End Width: 21.84mm/0.860"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: ~g per piece
Advertised Horsepower Rating: ~hp
Quantity: Sold as 4 pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
Nissan E15 H beam Forged 4340 Connecting Rods Description

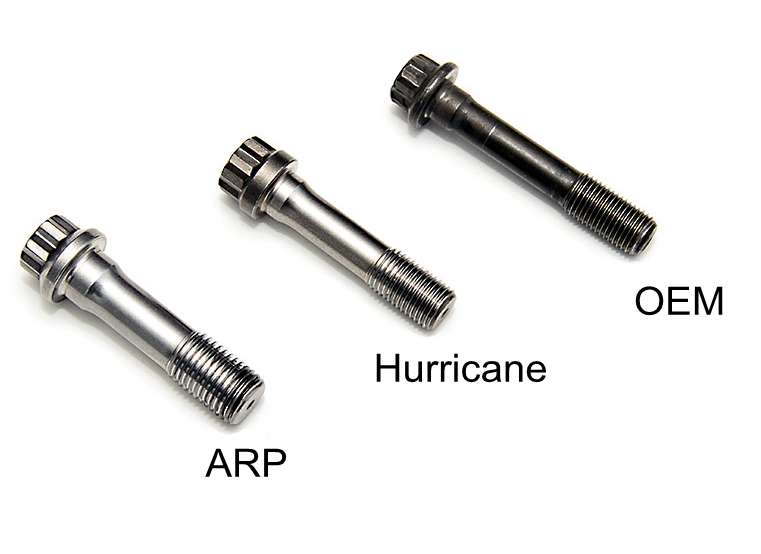

You can Customs Connecting Rods for your Nissan E15. These H-beam connecting rods are great for up to applications you want. Comes with ARP bolt, Hurricane bolt or OEM bolt.
Hurricane Conrods Features
Hurricane's H-beam connecting rods are made from 4340 steel, x-rayed, magnafluxed, sonic tested, and shot-peened to ensure optimal quality and strength. They are packaged in weight-matched sets that are within +/- 1 gram end to end.
The Hurricane all connecting rods undergo a 1-piece forging process in China and produce well which you can install on your engine directly; making for a cheaper rod that is durable and precise.
Applications:
E15/E15S:
Nissan AD van (VB11)
Nissan Cherry (N12)
Nissan Prairie (M10)[4]
Nissan Pulsar/Cherry/Datsun 310 (N10)
Nissan Pulsar (N12)
Nissan Sentra (B11)
Nissan Sunny (B11)
Nissan S-Cargo
Nissan Cherry (N12)
Nissan Prairie (M10)[4]
Nissan Pulsar/Cherry/Datsun 310 (N10)
Nissan Pulsar (N12)
Nissan Sentra (B11)
Nissan Sunny (B11)
Nissan S-Cargo
E15ET: Nissan Pulsar ET/EXA/Cherry/Langley GT/Sunny LePrix Turbo
All Nissan rods that Hurricane produced like:
1. Nissan QR25 Rods
2. Nissan 2.0 SR20DE, SR20DET Rods
3. Nissan 240SX-KA24DE Rods
4. Nissan RB30 Rods
5. Nissan RB26/RB25 Rods
6. Nissan TB48 Rods
2. Nissan 2.0 SR20DE, SR20DET Rods
3. Nissan 240SX-KA24DE Rods
4. Nissan RB30 Rods
5. Nissan RB26/RB25 Rods
6. Nissan TB48 Rods
Nissan Sunny B11 Car
Note: Picture from Wikimdedia commons.
