Mitsubishi  EVO X 4B11T H beam connecting rods set

Mitsubishi EVO X 4B11T H beam connecting rods set

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Engine components factory China
  •               Evo X (4B11T) Connecting Rods
  •               Mitsubishi EVO X 4B11T H Beam Connecting Rod Set
  •               H-Beam Forged Connecting Rods for the 4B11T
  •               Mitsubishi Lancer Evolution X 4B11T 4B11 connecting rods

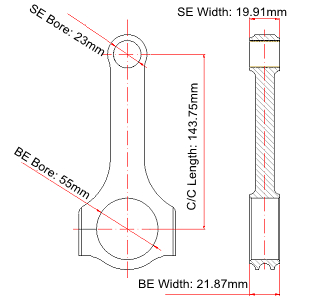

Evo X (4B11T) Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 143.75mm/5.659"
 Big End Bore Diameter: 55mm/2.165"
 Big End Width: 21.87mm/0.861"
 Small End Bore Diameter: 23mm /0.906"
 Small End Width: 19.91mm/0.784"
 Beam Style: H-beam

Mitsubishi EVO X 4B11T H Beam Connecting Rod Set Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  550g
 Advertised Horsepower Rating  550hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Mitsubishi Lancer Evolution X 4B11T 4B11 connecting rods Description

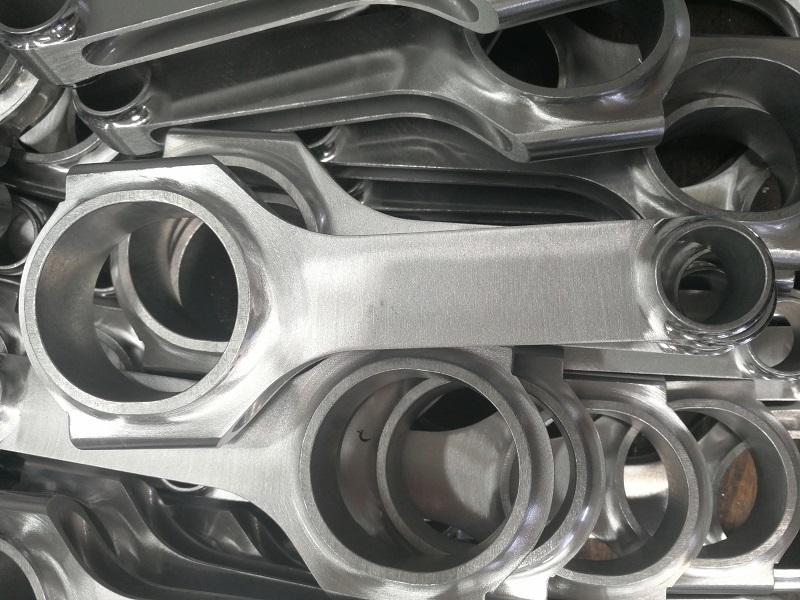

Hurricane Mitsubishi Lancer Evolution X 4B11T 4B11 connecting rods are manufactured from 4340 forgings to hold massive amounts of power. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and Twist is tightly controlled. Weight matched to +/- 1g. The H-beam connecting rod has become the industy standard design for high-performance applications. Considering the best overall performance of the part, combined with the least amount of weight, the H-beam is strongest, most durable design available. Hurricane H-Beam Evo X (4B11T) Connecting Rods are recommended for race applications. These H-Beam Forged Connecting Rods for the Evo X 4B11T come with 3/8th inch race spec rod bolts. Check more at:  Hurricane Connecting Rod Bolt Information





For more compare pictures of our Mirco polished progress. Please check our NEWS PAGEConnecting rods Shot Peening and Mirco-Polishing, Special A-level appearance

Hurricane Also offer custom design, if you do not find what you want from our website,  You can fill in Hurricane Speed & Performance - Custom Connecting Rod Form. Our skiiled staff will contact and help you within 24 hours.

Here are some useful link about connecting rods designs:


Hurricane Speed & Performance is a Engine components factory in China. Performance connecting rods are our mature products. Here are some useful informations to know more about us:


H-Beam Forged Connecting Rods for the 4B11T FAQ

Q: What is the bolt torque required on rods?
A:  Hurricane Race Spec  ARP2000 5/16-1.500”    45N*m
     Hurricane Race Spec ARP2000 3/8 -1.600”    75N*m
     Hurricane Race Spec ARP2000 7/16-1.600”    95N*m

Q: Can I order a single connecting rod as sample to check quality first before cooperation?
A: Yes, Of course. Please leave us message with your requirements.

Q: What’s your rods material and hardness?
A: Material: 4340 forged steel/40CrNiMoA/EN24. Heat Treatment: HRC34-38

Q: Could you provide logo printing(private label) service on connecting rods?
A: Yes.
