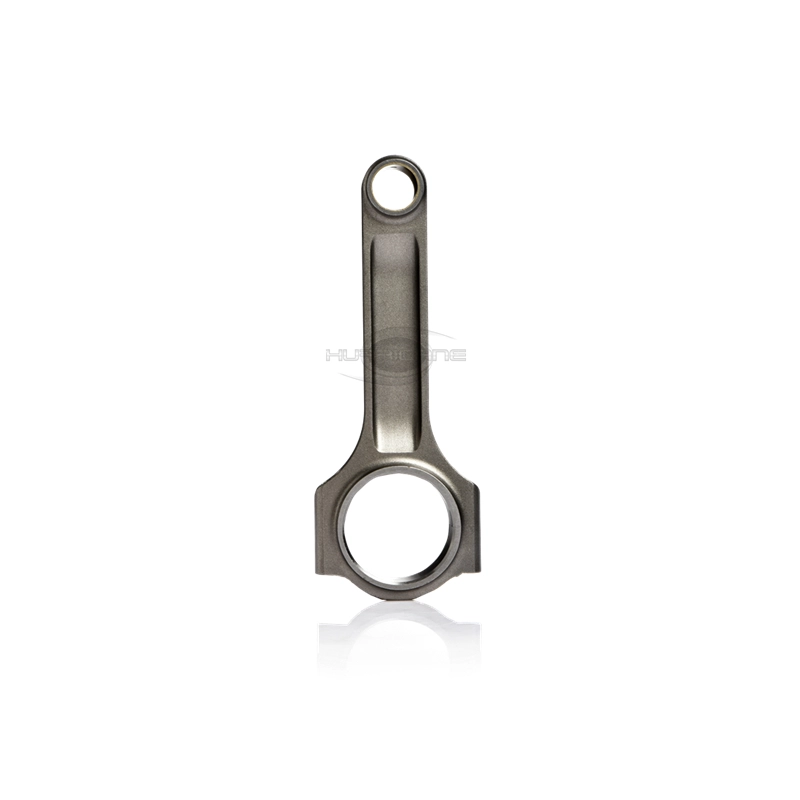

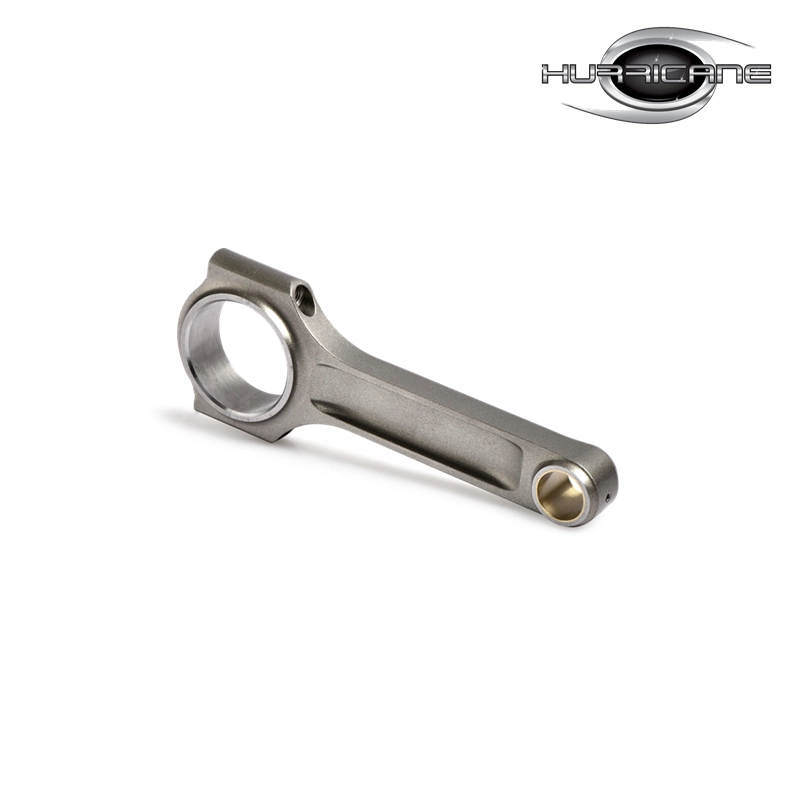

I-beam rods for Audi/VW 2.0L ABF/ABA/AAD/2E,159mm rod length
- Competitive Price
- Quality Assurance
- MOQ:100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Key Words: Volkswagen 159mm forged 4340 steel conrods
- Audi VW 2.0L I beam connecting rods
- Forged 4340 steel connecting rod for vw
- Audi VW 2.0L 159x20mm ABA ABF connecting rods
- Hurricane forged 4340 steel connecting rod for vw audi 2.0L
Brand: Hurricane
Engine: VW/AUDI 2.0L ABF/ABA/AAD/2E
Part Type: Connecting Rods
Center to Center Length: 159mm/6.260"
Big End Bore Diameter: 50.6mm /1.992"
Big End Width: 24.9mm/0.9803"
Small End Bore Diameter: 20mm/0.787"
Small End Width: 24.9mm/0.980"



Engine: VW/AUDI 2.0L ABF/ABA/AAD/2E
Part Type: Connecting Rods
Center to Center Length: 159mm/6.260"
Big End Bore Diameter: 50.6mm /1.992"
Big End Width: 24.9mm/0.9803"
Small End Bore Diameter: 20mm/0.787"
Small End Width: 24.9mm/0.980"
Beam Style: I-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 585g/piece
Advertised Horsepower Rating: 800hp
Quantity: Sold as 4 pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design:Yes, accept
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design:Yes, accept
Audi VW 2.0L 159x20mm ABA ABF connecting rods Description

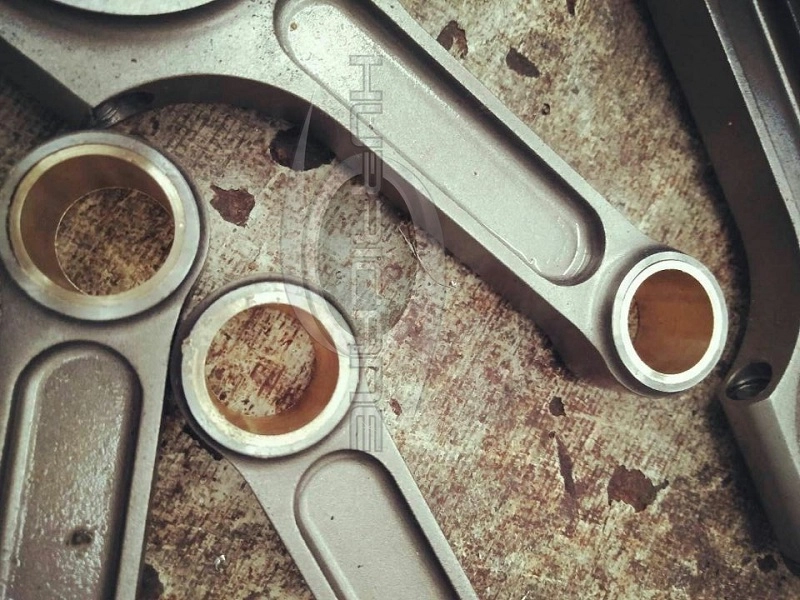

Audi/VW connecting rods are very popular at the market, Hurricane I-Beam VW/Audi 2.0L 159mm connecting rods are made from 1-piece chromoly steel forging to ensure maximum strength and durability. All Hurricane connecting rod are burnished, with this progress, the rod appearance looks more beautiful and shinny. Micro-polishing treatments can also enhance a rod's durability while leaving a great-looking appearance.
Our Volkswagen 159mm forged 4340 steel conrods are with special I beam design, if you need other I beam design, we can still offer, please kindly check more designs picture at our News Page:

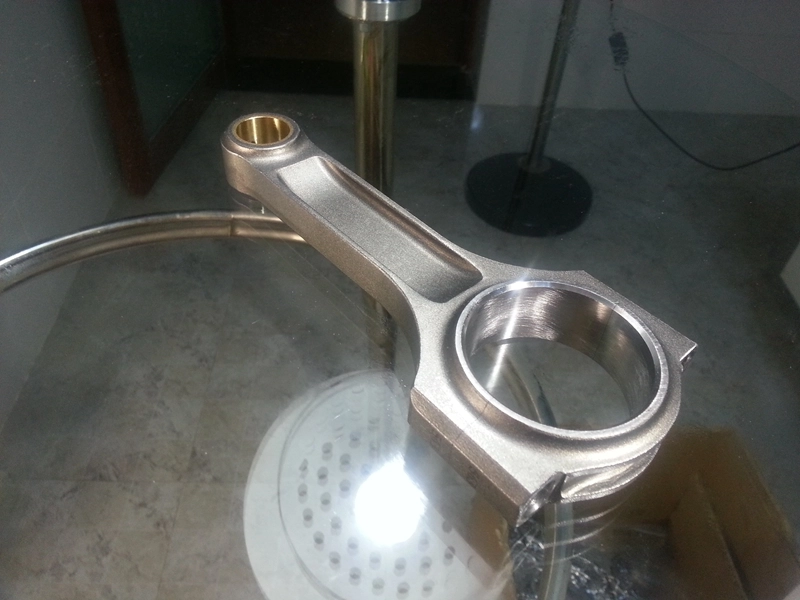

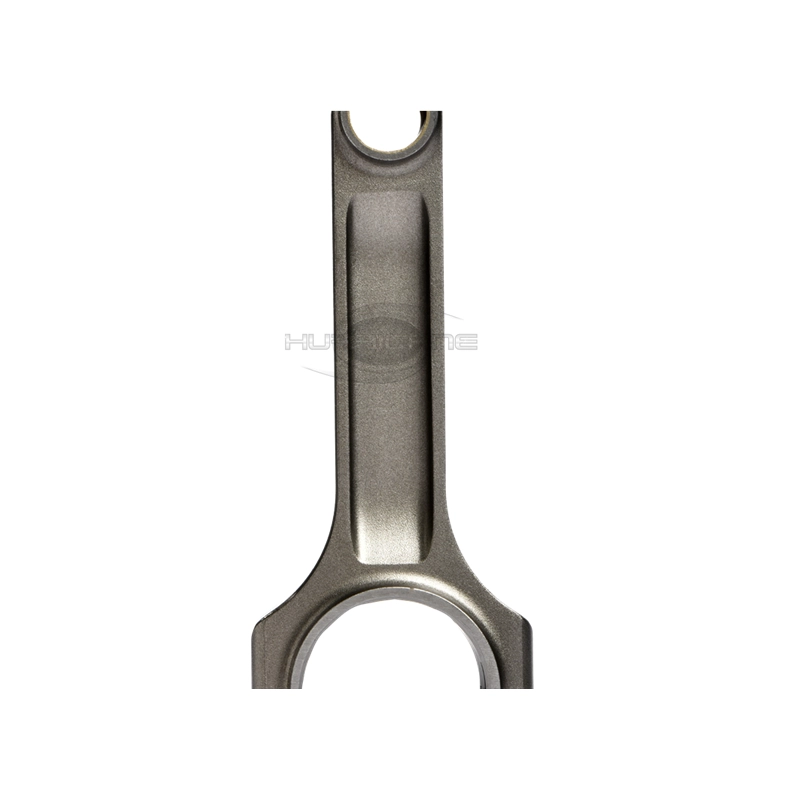

Audi VW 2.0L I beam connecting rods with Normal I beam design, please check below picture and VW 2.0L ABA 159mm forged I beam connecting rod, 6.260 inch Length

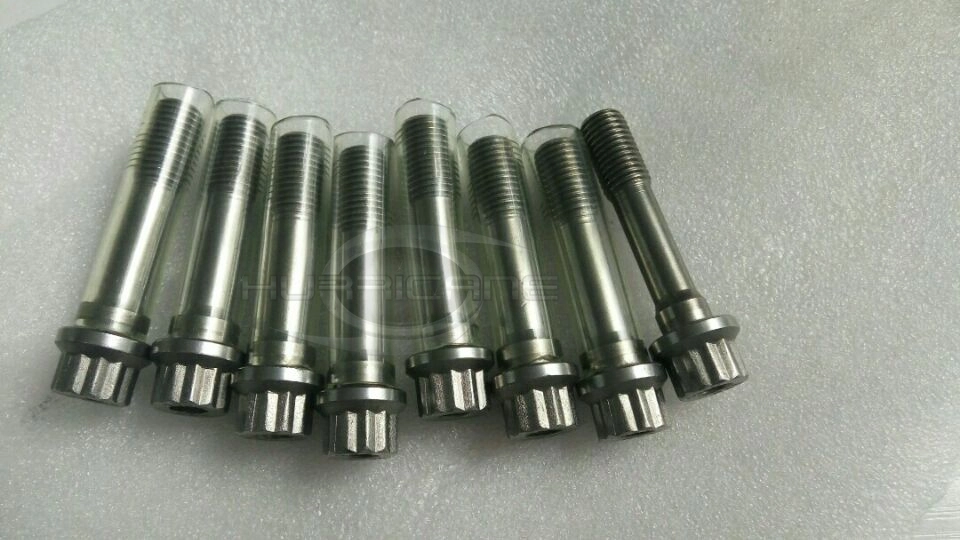

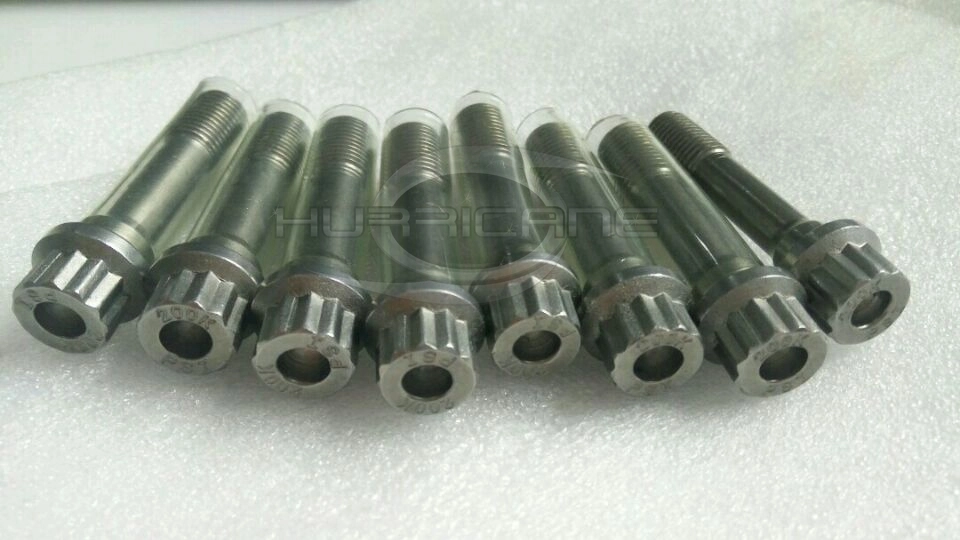

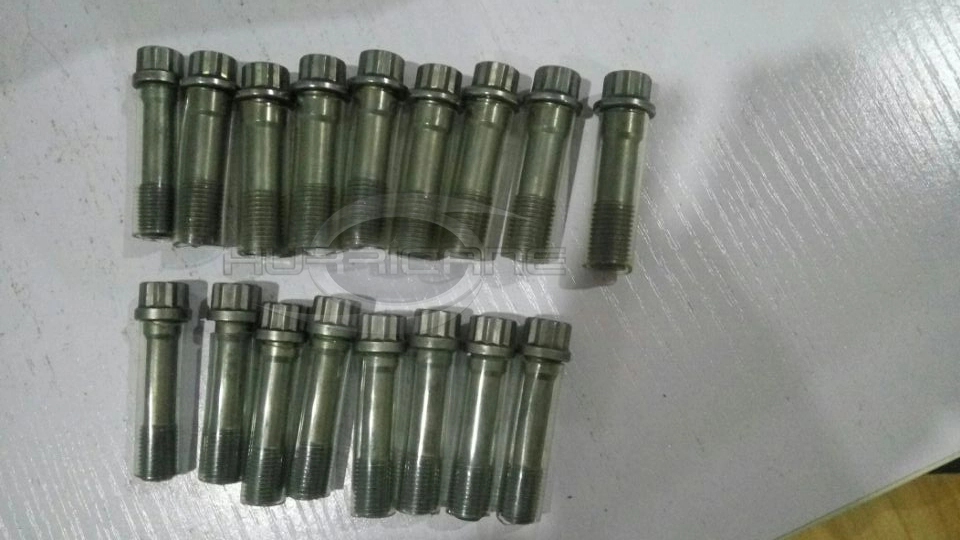

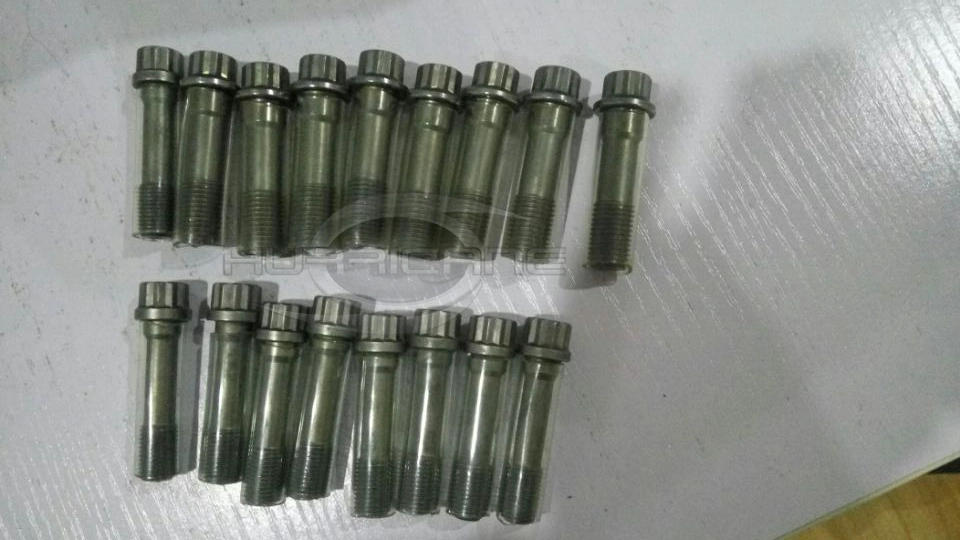

Hurricane factory also supply 5/16, 3/8 and 7/16 race spec replacement bolts, Hurricane bolts PSI could reach 211,000 which is close to ARP2000.
