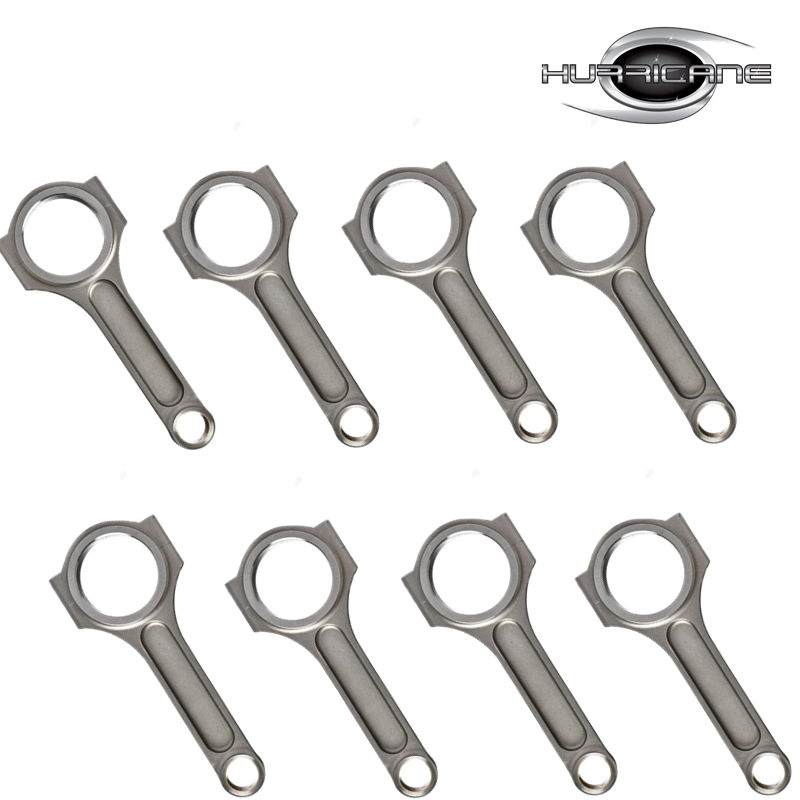

I-beam Forged Connecting Rods for Chevy Big Block V8 6.385" Center Length
- Application: Chevy Big Block V8
- Material : 40CrNiMoA(4340) Forged Steel
- Bolt Size : 7/16"
- Competitive Price
- High Strength
- Beam Style : I-beam
- MOQ: 80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : BBC Forged Connecting Rods
- V8 Engine Connecting Rods
- Chevy Big Block 4340 Connecting Rod
| Brand: Hurricane |  |

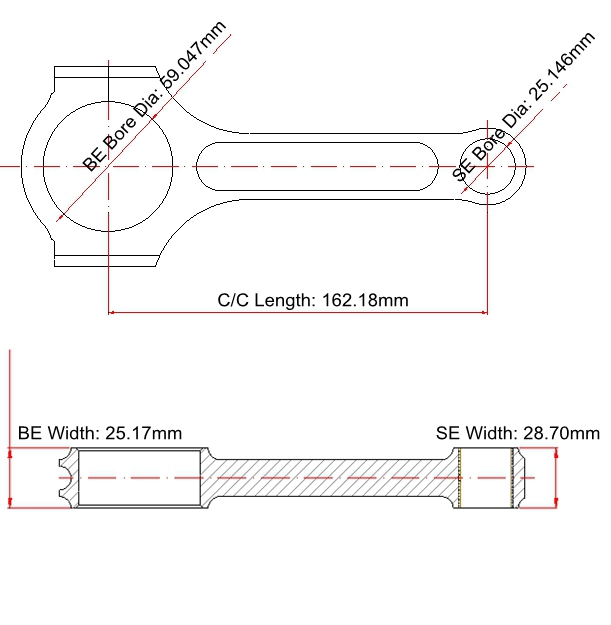

| Center to Center Length: 162.18mm/6.385" | |
| Big End Bore Diameter: 59.047mm/2.325" | |
| Big End Width: 25.17mm/0.991" | |
| Small End Bore Diameter: 25.146mm /0.990" | |
| Small End Width: 28.70mm/1.130" | |
| Beam Style: I-beam |
Chevy Big Block V8 Connecting Rods Features
| Connecting Rod Bolt Diameter | 7/16 " |
| Approximate Connecting Rod Weight | xxx |
| Advertised Horsepower Rating | 1000+hp |
| Quantity | Sold as 8 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
Per bbc connecting rod machined from quality 4340 steel material , per rod designed and tested by 3D software before production , and then 100% engineered by advanced CNC equipments , each rod shot peened for added fatigue life and honed to meet high tolerance standard.
After finished all production processes , all rods will be weight matched sets +/- 1 grams to keep balance well .

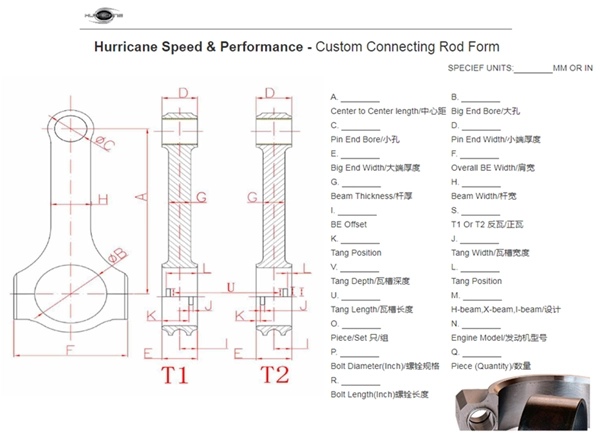

Hurricane also provide various Center to Center length connecting rods for SBC and BBC applications , include 6.100”, 6.123”, 6.125”, 6.200” , 6.135” 6.385” , 6.760” ,6.800” etc . In addition, custom or special connecting rods could be produced as long as sample, drawing or detailed specifications provided .
If you can not find what you need on our websites or any needs for custom connecting rods, please feel free contact us .
