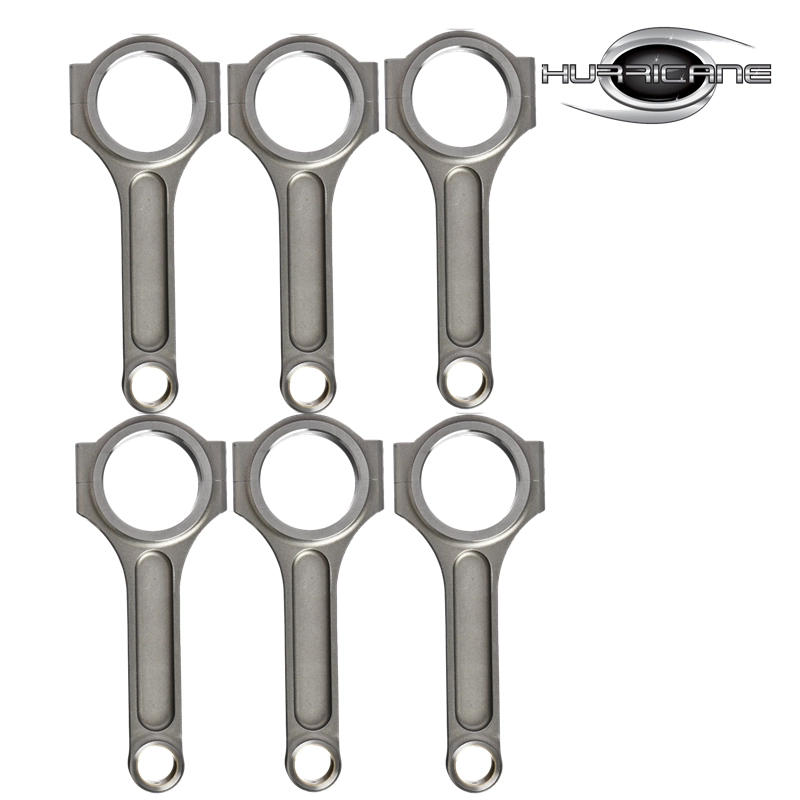

I beam Forged 4340 Racing conrods for OPEL VAUXHALL OMEGA 3.0I

I beam Forged 4340 Racing conrods for OPEL VAUXHALL OMEGA 3.0I

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :    Opel Vauxhall Conrods
  •               I beam conrods for VAUXHALL OMEGA
  •               4340 Forged Conrods For Opel Omega
  •               Connecting Rods for Opel Vauxhall Omega 3.0I
  •               I beam racing forged connecting rod

Opel Vauxhall Conrods Main Sizes

 Brand: Hurricane*
 Center to Center Length: 147.98mm/5.826"
 Big End Bore Diameter: 57mm/2.244"
 Big End Width: 19.86mm/0.782"
 Small End Bore Diameter: 20mm/0.787"
 Small End Width:21mm /0.827"

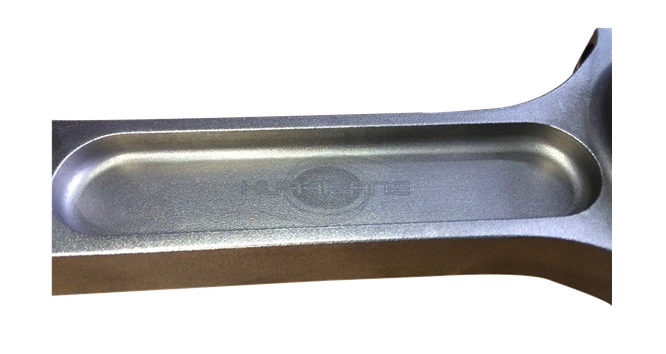

 Beam Style: I-beam

4340 Forged Conrods For Opel Omega Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

I beam conrods for VAUXHALL OMEGA Description

#1, Fully CNC machine and shot peened for higher fatigue strength

#2, Standard equipped with the Hurricane Race Specs bolts (210,000PSI) or ARP2000 rod bolts (220,000PSI) for extra cost.

Note: You can check the following News link to know more details:  Hurricane Connecting Rod Bolt Information

#3,  3X45° Shoulder Design

Note: Hurricane can also provide Round Shoulder design and  Square Shoulder design.  for more info, please check atHurricane Connecting Rod Shoulder Design

#4, Sunnen hone solution for all big bore and pin bore finishing

#5,  I-beam rods are typically lighter than H-beam rods, and I-beam rods are better for high revving engines.

View H beam Opel Vauxhall Omega 3.0I conrods, please click: Set Of 6,OPEL VAUXHALL OMEGA 3.0I H beam Forged Connecting Rods

Connecting Rods for Opel Vauxhall Omega 3.0I FAQs

Q: How to connect cap with rods?

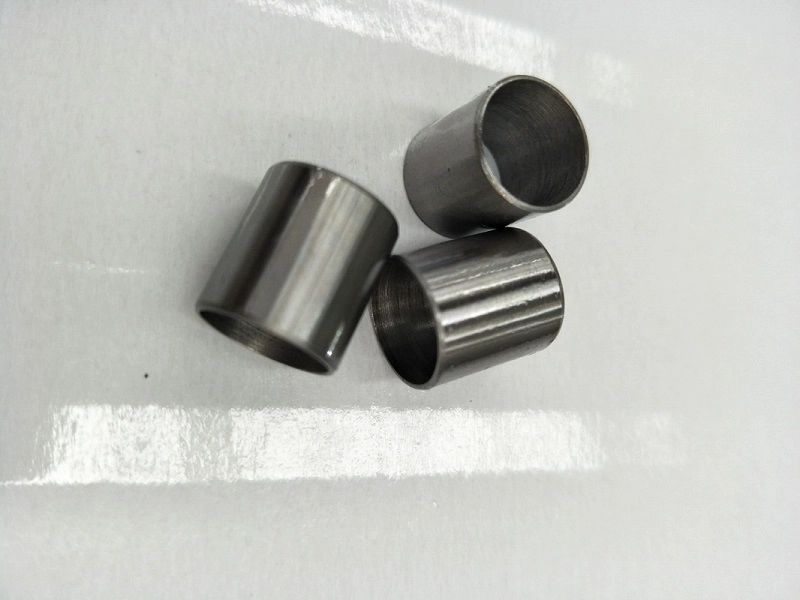

A: We use precision alignment sleeves dowel. material:40Cr, HRC40-42

Q: How long does it take to get a response?

A: We will respond to you in a timely manner,welcome to leave message at contact us page.

Q: Will you do inspection on CNC machining processes?

A: Yes, For connecting rod, we will do  blank dimension Inspection, Tolerance Inspection, Machining Precision Inspection and Balance Weight Inspection.
