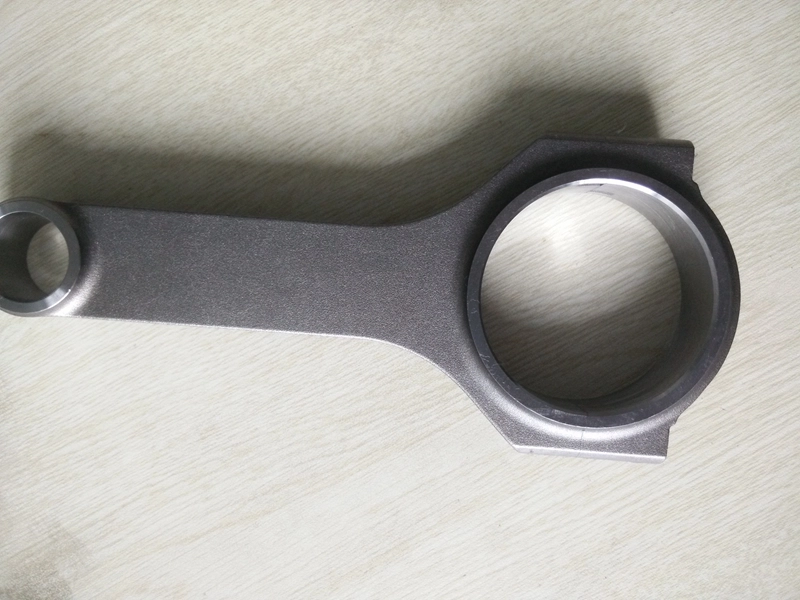

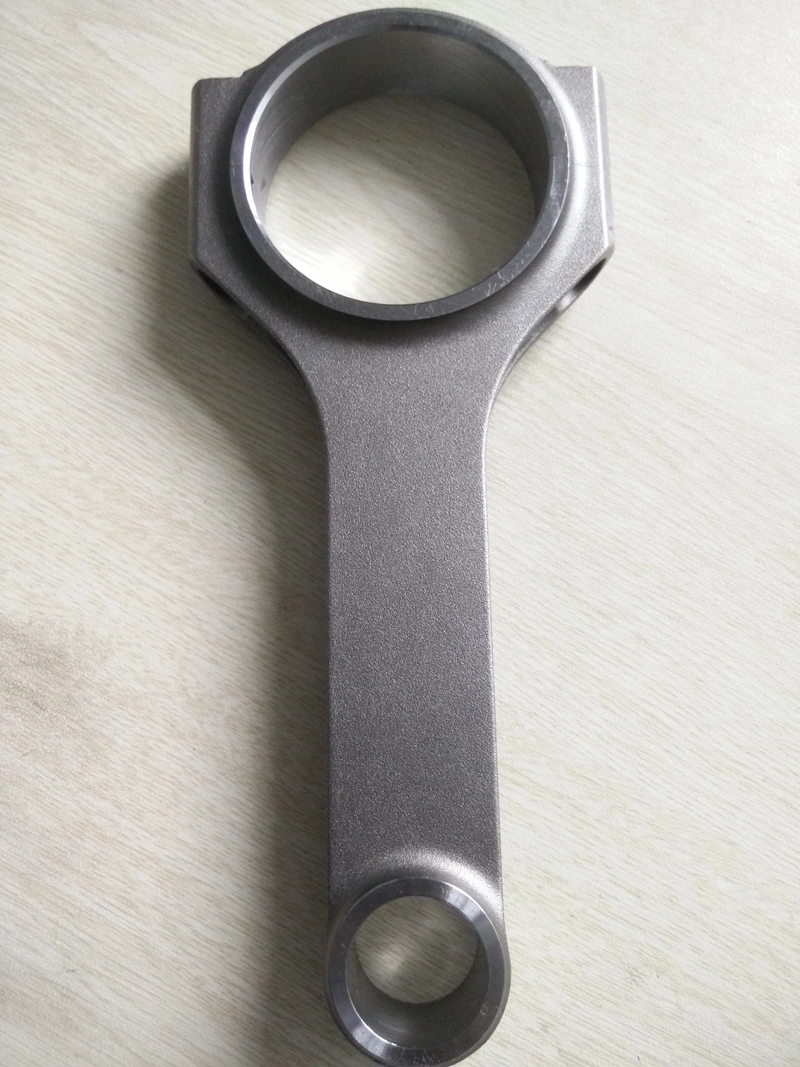

Hurricane Forged Steel H beam Ford 7.5L/460 6.605

Hurricane Forged Steel H beam Ford 7.5L/460 6.605" Connecting Rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 7/16"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Ford 7.5L/460 Connecting Rods
  •               connecting rods ford 460
  •               Ford 460 Rods
  •               Ford V8 connecting rods
  •               Ford 6605 Connecting Rods

Ford 7.5L/460 Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 167.77mm/6.605"
 Big End Bore Diameter: 67.37mm/2.652"
 Big End Width: 25.3mm/0.996"
 Small End Bore Diameter: 26.385mm /1.039"
 Small End Width: 25.3mm/0.996"
 Beam Style: H-beam

Ford 7.5L/460 Connecting Rods Features


 Connecting Rod Bolt Diameter  7/16 "
 Approximate Connecting Rod Weight  750g
 Advertised Horsepower Rating  1200hp
 Quantity  Sold as 8 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Ford 7.5L/460 Connecting Rods Description

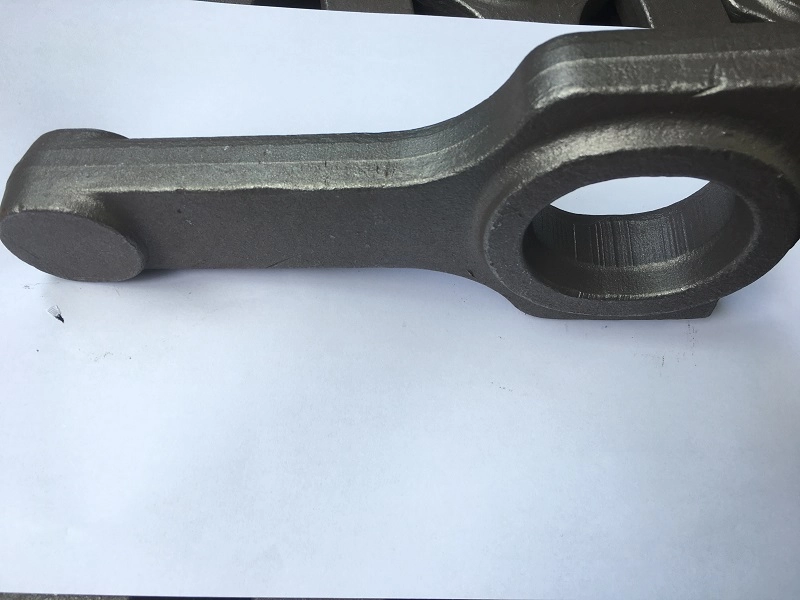

Hurricane Ford 6605 connecting rods are made from 1-piece chromoly 4340 steel to ensure maximum strength and durability, finished in the CNC advance machinery.

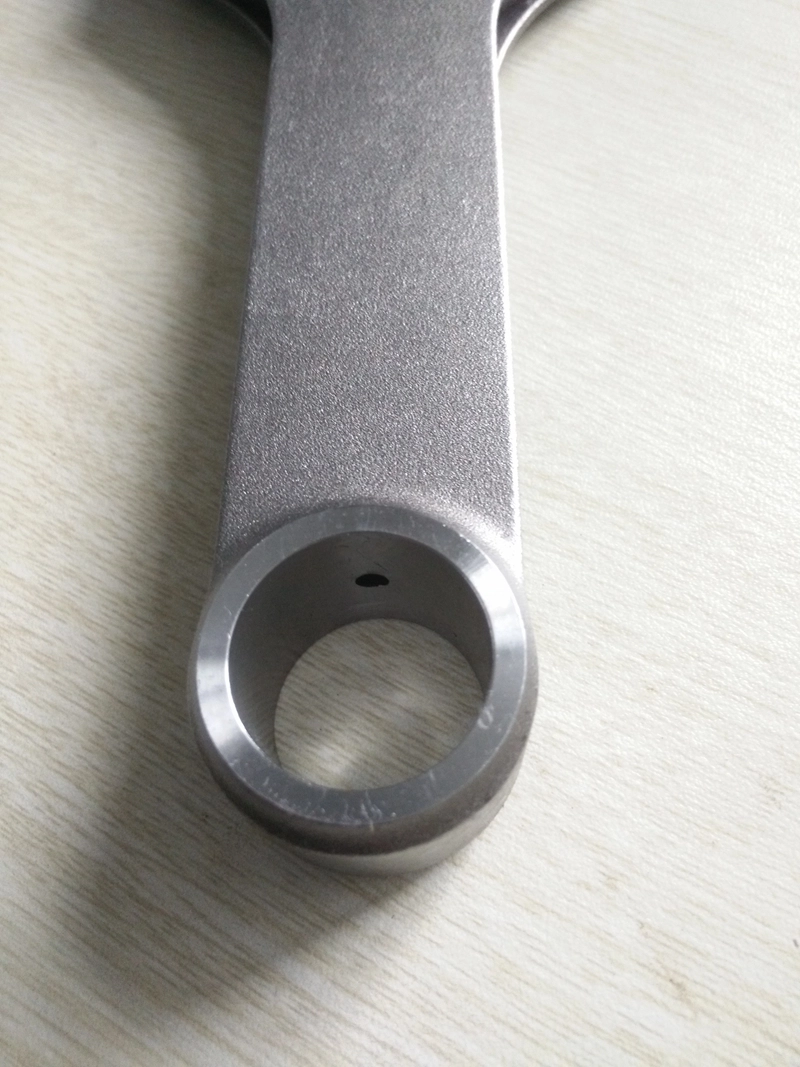

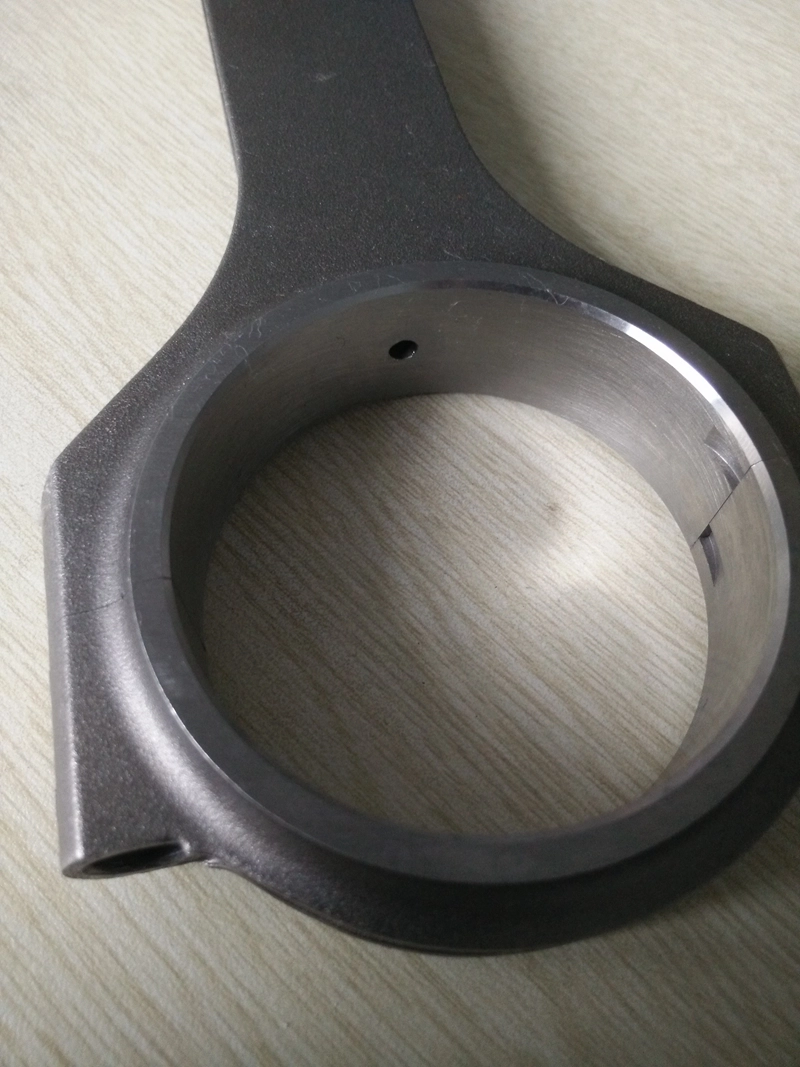

Rifle Drilled(oiling channel from big end to piston pin), Also referred to as Forced Pin Oiling(FPO), rifle drilling increases wrist pin longevity by providing additional lubrication, this upgrade is highly recommended for street-driven cars that see mileage put on them, this kind of rifle drilling application is sold separately and available for all hurricane connecting rods, if you do not want this design on your Ford 7.5L/460 connecting rods, no problem, just feel free to let us know your requirements.

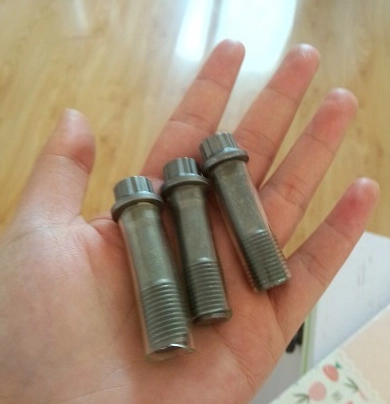

The bolt hole and thread are made by CNC and Precise cutting-tool. You can't find any tool vestige even on the bolt hole surface. Hurricane connecting rods ford 460 use ARP2000 7/16 bolts. take our 3/8 rod bolts as reference, PSI could reach 211,829. We do not supply original ARP bolts, but if you ship us original ARP bolts to us, we can help installed on connecting rods before packing.



Ford 7.5L/460 Connecting Rods FAQs


1,What is the difference between COPY ARP2000 bolt and Original ARP bolt
Bolts                            YIELD STRENGTH         TENSILE STRENGTH
ARP8740                      180,000PSI                       220,000PSI
Hurricane COPY ARP2000 3/8                              211,829PSI
ARP 2000                     200,000PSI                      220,000PSI
ARP L19                       220-230,000PSI               260,000PSI
CUSTOM AGE 625+    235-255,000PSI                260,000 PSI
ARP AERMET              260-280,000PSI                290-310,000PSI

2,What is the bolt torque required on rods?
Copy ARP2000 7/16-1.600”    95N*m

For more information, please visit our FAQs page

If you do not find what you want through our website, welcome to leave us message and send your inquiry, if you are looking for a high performance custom connecting rods, welcome to fill in our custom connecting rod order form, our skilled staff will contact you shortly.
