Hurricane 5.600

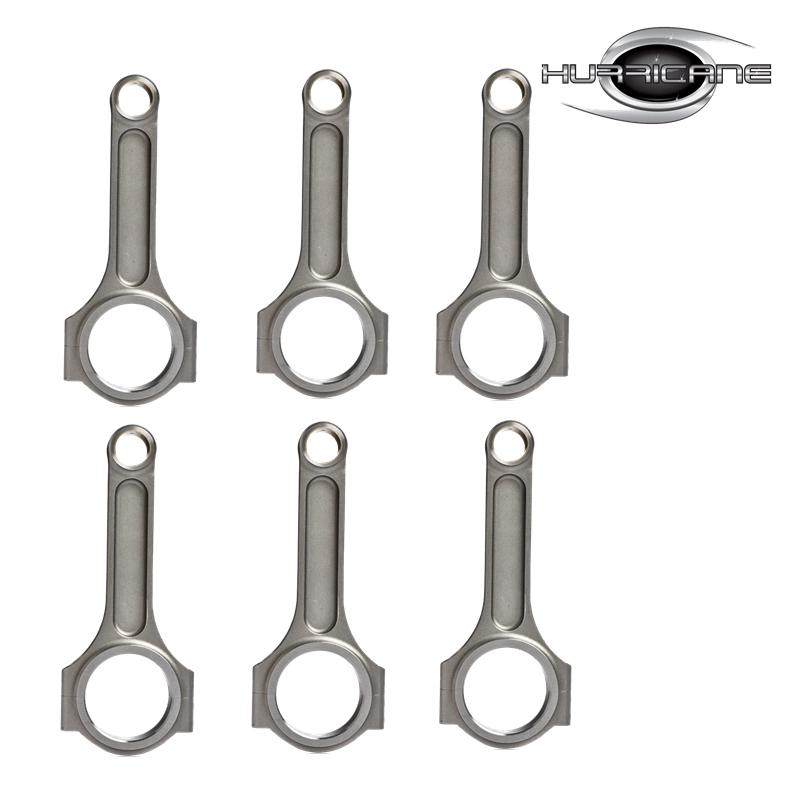

Hurricane 5.600" Buick Turbo V6 I beam Forged Steel ConRods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Hurricane 5.600 I-Beam Connecting Rod
  •               Buick V6 connecting rods
  •               Buick V6 I beam forged steel connecting rods
  •               BUICK 3.8L/231 GM V6 Connecting Rods
  •               Performance Replacement Forged Steel Connecting Rods for Buick engines

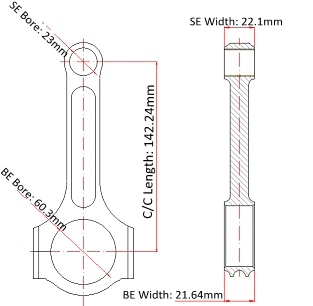

Buick V6 connecting rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 142.24mm/5.600"
 Big End Bore Diameter: 60.3mm/2.374"
 Big End Width:21.64mm/0.852"
 Small End Bore Diameter: 23.012mm /0.866"
 Small End Width: 22.1mm/0.870"
 Beam Style: I-beam

Buick V6 I beam forged steel connecting rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


BUICK 3.8L/231 GM V6 Connecting Rods Description


The Hurricane 5.600 I-Beam Connecting Rod is built to support in excess of 1000 horsepower for Buick Grand National, Buick Turbo Regal and turbo Buick Regal T-Type vehicles. the I beam forged steel connecting rods are also designed for maximum abuse from high cylinder pressure and minimum distortion under high inertial load from high speed engine use. All Buick V6 connecting rods are developed and produced in our factory on advanced CNC machinery, some pictures and progress introduction at below:

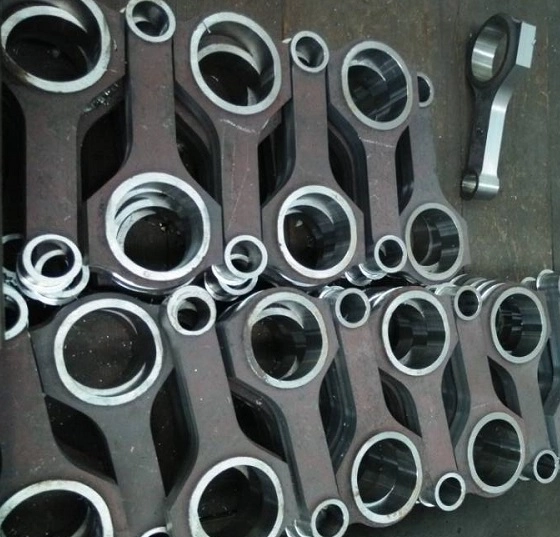

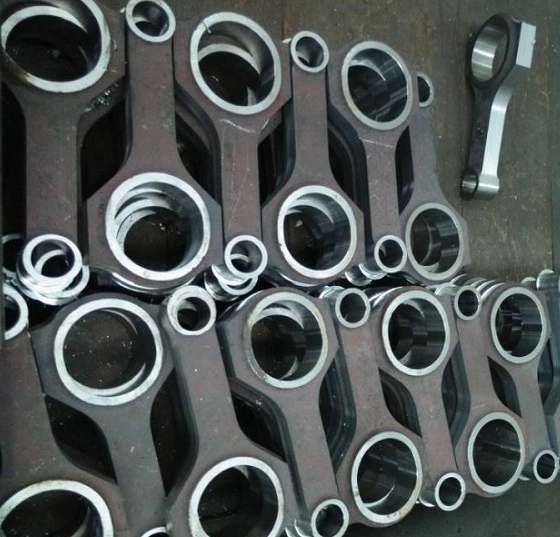

Note: This is a progress of drill Performance Replacement Forged Steel Connecting Rods for Buick engines big and small ends bore, which acts as a reliable locator in all process.

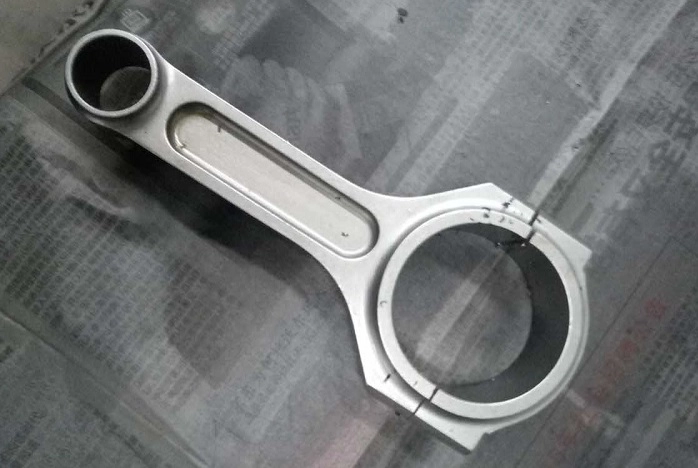

Note:  Burring, polishing, and shot blasting are all crucial operations in the making of a competition connecting rod. You can check What is shot peening?  page to get more information.

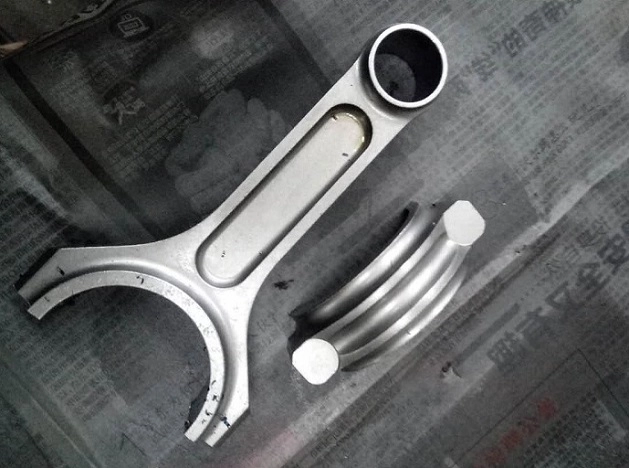

Note:  This is a step of separate the beam from its cap.  For more progress introduction please check: Hurricane High Performance connecting rods - Process of machining rods


If you prefer H beam connecting rod design for Buick V6 engine application, Please click here to view Buick V6 Connecting Rods Hurricane Buick Turbo V6 Rods

Please feel free to contact us or inquiry sample,  Please leave us message here.
