Honda Prelude VTEC H22 H22A H22A1 H22A4 X beam Connecting Rods

Honda Prelude VTEC H22 H22A H22A1 H22A4 X beam Connecting Rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces, 20 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Honda h22 X beam steel connecting rods
  •             Connecting Rods for Honda H22 2.2L Engine
  •             Honda Prelude H22 forged steel connecting rods
  •             4340 Connecting Rods Honda Prelude & Accord H22
  •             Forged connecting rods for Honda Prelude VTEC H22A H22A1 H22A4

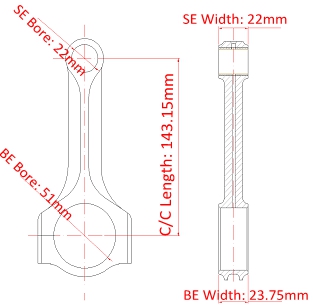

Honda h22 X beam Steel Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 143.15mm/5.636"
 Big End Bore Diameter: 51mm/2.008"
 Big End Width: 23.75mm/0.935"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 22mm/0.866"
 Beam Style: X-beam

Connecting Rods for Honda H22 2.2L Engine Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  650hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


4340 Connecting Rods Honda Prelude & Accord H22 Description

Connecting Rods for Honda H22 2.2L Engine fitted with Doweled Cap for Superior Alignment and Silicone Bronze Pin End Bushes for reliability. honda h22 X beam steel connecting rods are also shot peened and polished for reduced fatigue, 100% CNC Profiling & 100% CNC Drilling & Tapping, these con-rods are made of the highest quality and built to be abused.

Hurricane Honda Prelude H22 forged steel connecting rods Application

 Make  Vehicle Model  Engine
 Honda / Acura  4th gen Prelude Si VTEC (2WS BB4 & 4WS BB1)
 5th gen Prelude SiR (2WS BB6 & 4WS BB8)
 5th gen Prelude Type-S and SiR S-Spec (BB6)
 6th gen Accord/Torneo Euro-R (CL1)
 5th gen Accord SiR Sedan (CD6)
 5th gen Accord SiR Coupe (CD8)
 5th gen Accord SiR Wagon (CF2)
 H22A
 Honda / Acura  4th gen Prelude VTEC (BB1)
 4th gen Prelude SR-V (BB1)
 4th gen VTi-R (BB1)
 H22A1
 Honda / Acura  Prelude 2.2i VTEC (BB1)  H22A2
 Honda / Acura  Honda Accord Coupe SiR  H22A3
 Honda / Acura  5th gen Prelude Base and Type-SH (BB6)
 5th gen Prelude Base, Type-SH, and SE (BB6)
 H22A4
 Honda / Acura  1997-1998 Prelude 2.2VTi/VTi-S (2WS BB6 & 4WS BB8)  H22A5
 Honda / Acura  1998-2002 Accord Type-R (CH1)  H22A7
 Honda / Acura  1999-2001 Prelude 2.2VTi/VTi-S (2WS BB6 & 4WS BB8)  H22A8


OTHER CUSTOMERS ALSO BOUGHT

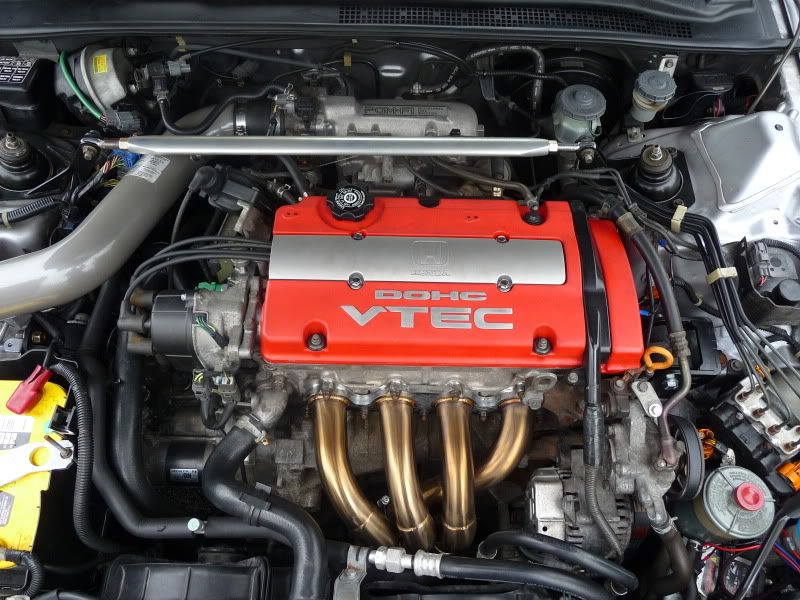

Honda Prelude H22 Engine


Note: Picture from Pinterest.
