Honda Acura RSX 2.0 VTEC K20A2/K20A I-beam connecting rods,Set of 4
- Competitive Price
- Valid Lead Time
- Professional Team
- Quality Assurance
- Forging or Billet
- MOQ：100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords: Honda K20A engine connecting rods
- Forged Connecting Rods - Honda K20A/K20A2
- Acura Honda K20A I-Beam Rod 3/8 Carr Bolt
- Honda K20A Engine Build I High Performance Assembly
Brand: Hurricane
Engine: Honda / Acura RSX 2.0 VTEC K20A2/K20A
Part Type: Connecting Rods
Center to Center Length: 138.98mm/5.472"
Big End Bore Diameter: 51mm/2.008"
Big End Width: 19.8mm/0.7795"
Small End Bore Diameter: 22mm /0.8661"
Small End Width: 19.8mm/0.7795"
Beam Style: I-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 600g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
Engine: Honda / Acura RSX 2.0 VTEC K20A2/K20A
Part Type: Connecting Rods
Center to Center Length: 138.98mm/5.472"
Big End Bore Diameter: 51mm/2.008"
Big End Width: 19.8mm/0.7795"
Small End Bore Diameter: 22mm /0.8661"
Small End Width: 19.8mm/0.7795"
Beam Style: I-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 600g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

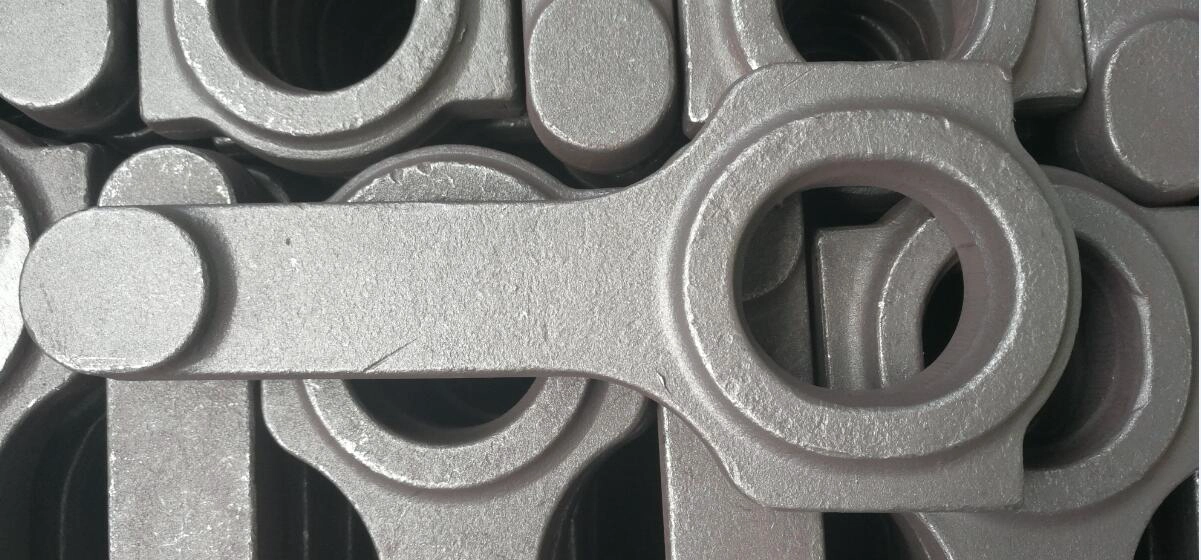

Hurricane finished I-beam race rods fits HONDA / Acura RSX 2.0 VTEC K20A2/K20A engine, made from 1-piece 4340 forging (A chrome moly alloy with high tensile and compressive strength) to ensure maximum strength and durability.
Note: forging 4340 steel, heat treatment: HRC34-38
Also this I beam rods can handle high rpm tension forces well.

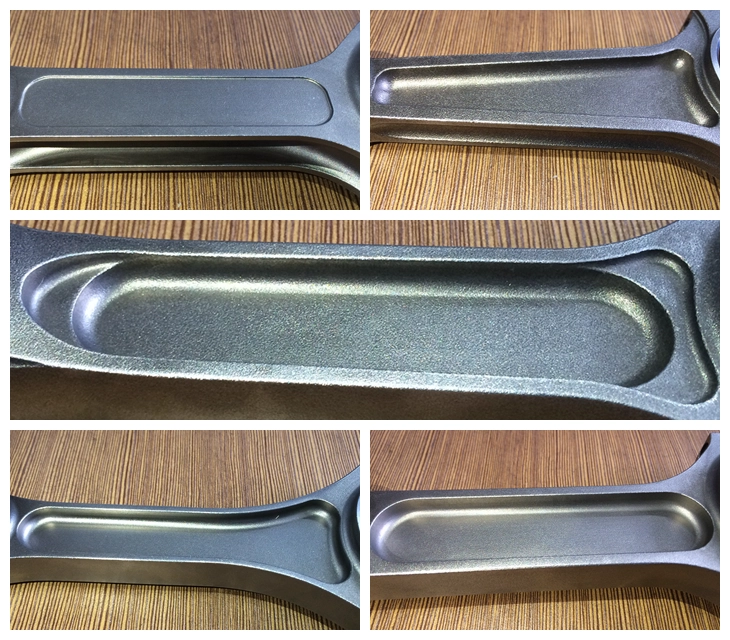

Note: Various I-beam that Hurricane provided and machined before, more design on beam, please kindly explore
If you prefer H beam connecting rod design on this engine application, please leave message to our skilled staffs.
FAQ
A: What package is avaible?
B: Package: Step 1: anti-tarnish paper and bag
Step 2: Foam internal
Step 3: White Box
Step 4: Carton
Step 5: Seal and shipp by air
Step 2: Foam internal
Step 3: White Box
Step 4: Carton
Step 5: Seal and shipp by air
