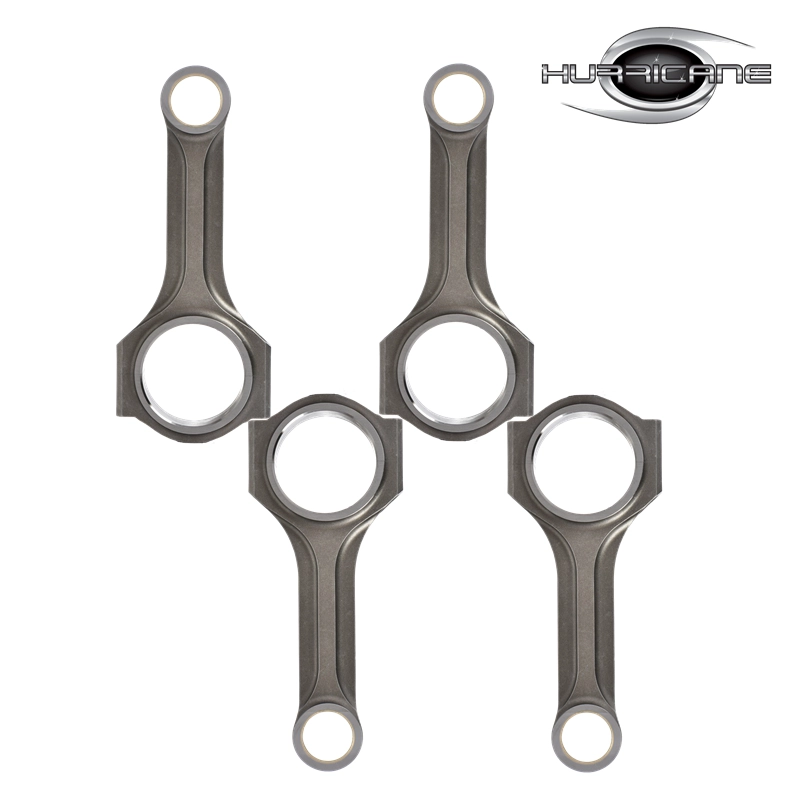

Honda Accord F23 F23A1 X beam 4340 Chrome Moly Connecting Rods

Honda Accord F23 F23A1 X beam 4340 Chrome Moly Connecting Rods

  • Engine Model: Honda Accord F23 F23A1
  • Bolts Size : 3/8"
  • 4340 Forged Steel
  • Beam Style: X-beam
  • MOQ: 80 pieces, 20 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Honda f23 connecting rods
  •            F23A Connecting Rods
  •            X beam Honda F23 Connecting Rods
  •            4340 Chrome Moly Connecting Rods for HONDA F23
  •            Forged 4340 Steel Connecting Rod For Honda Accord F23

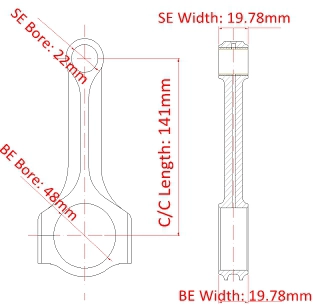

Honda F23 Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 141mm/5.551"
 Big End Bore Diameter: 48.01mm/1.890"
 Big End Width: 19.78mm/0.779"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width:  19.78mm/0.779"
 Beam Style: X-beam

F23A Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  700hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


X beam Honda F23 Connecting Rods Description


Hurricane honda f23 connecting rods are forged from 4340 Chrome Moly steel and CNC machined to our strict tolerances. Those Forged 4340 Steel Connecting Rod For Honda Accord F23 feature quality hurricane 3/8 rod bolts and silicone bronze wrist pin bushes to ensure reliability. Our F23A Connecting Rod is also weight-matched to +/-1 gram per set.  This combination of stringent material selection, quality components, and precise tolerances ensures that you are offered one of the highest quality connecting rods on the market.  Our X beam Honda F23 Connecting Rods are rated to 700HP and are designed specifically for high RPM, and boosted applications.



4340 Chrome Moly Connecting Rods for HONDA F23 is ready for honing.

Forged 4340 Steel Connecting Rod For Honda Accord F23 Application:

 Engine  Year  Model
 F23A1  1998-2002 Honda Accord LX, EX, and SE, LEV
 F23A4 1998-2002 Honda Accord ULEV
 F23A5  1998-2002 Honda Accord DX, Honda Accord LXi, Honda Accord LX VP
  F23A7  1998-1999 Honda Odyssey,  Isuzu Oasis, and EUDM Honda Shuttle
 F23Z5  2001-2003  Honda Accord Type V

Hurricane factory produced high performance H beam, X beam and I beam connecting rods for Honda B,D,K,F,H engines, for more product, please check our catalog.  Please contact us, we are waiting your comments, inquiry.

1999 Honda Accord Race Car



Note: Picture from Pinterest.
