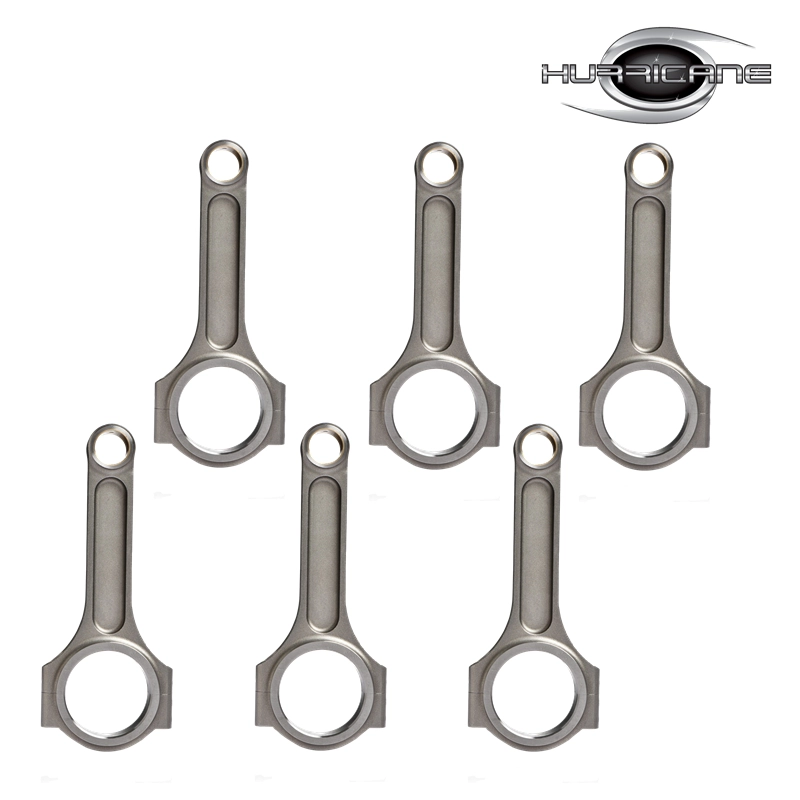

Holden 3.8l V6 L67 I-beam 5.742" Connecting Rod
- Material : 40CrNiMoA/4340/EN24
- Copper bush : QAL10-3-1.5
- Bolts Threads : 3/8"
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords:ecotec 3.8l v6 connecting rod
- Holden Race Conrods
- L67 Engine Connecting Rpd
- 4340 Forged Conrods Holden V6
- Holden 4340 steel forged conrod

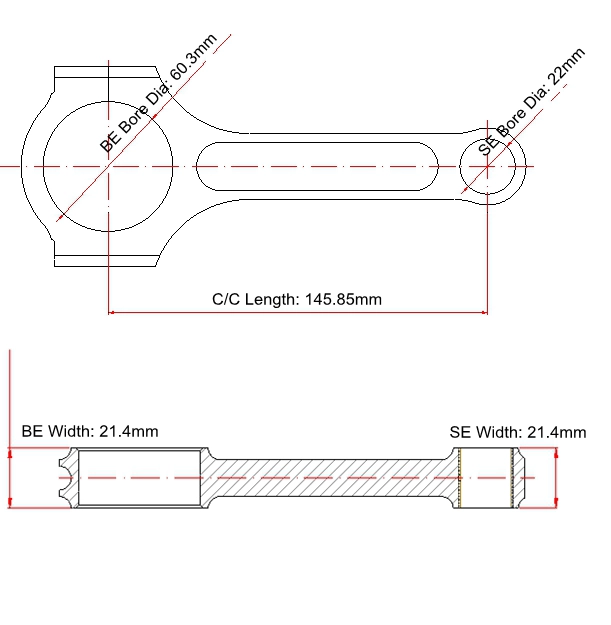

Holden 3.8l V6 L67 I-beam Connecting Rods Main Sizes
| Brand: Hurricane |  |
| Center to Center Length: 145.85mm/5.742" | |
| Big End Bore Diameter: 60.3mm/2.374" | |
| Big End Width: 21.4mm/0.843" | |
| Small End Bore Diameter: 22mm/0.866" | |
| Small End Width:21.4mm /0.843" | |
| Beam Style: I-beam |
Holden 3.8l V6 I-beam Connecting Rods Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | XXXg |
| Advertised Horsepower Rating | 1000hp |
| Quantity | Sold as 6 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
Additional Description :
1. 100% CNC Machined
2. All processes finished at Hurricane factory in China
3. Tight tolerances
4. Different material can be provided , include 4340 Steel, Aluminum or 300M
5. Designed for high strength applications
6. Magna-flux inspected
7. Heat-treated in 34-38HRC
8. Fully stress relieved

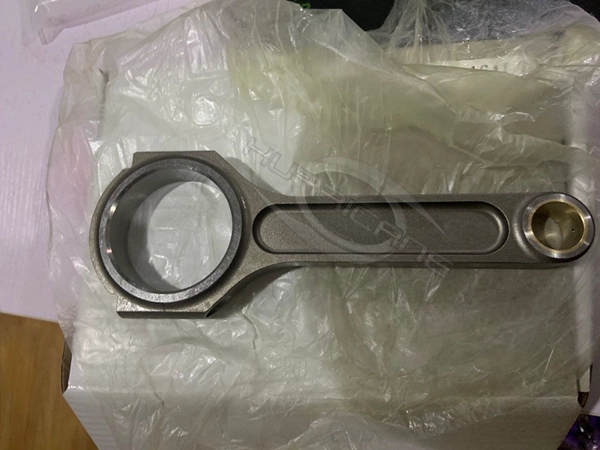

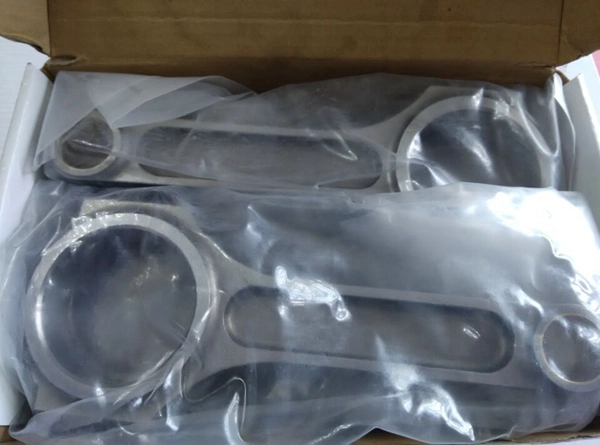

Finished I-beam Connecting Rod
Welcome to contact us if any further question .
