China High performance forged 4340 steel connecting rod for Subaru EJ20/25 manufacturer

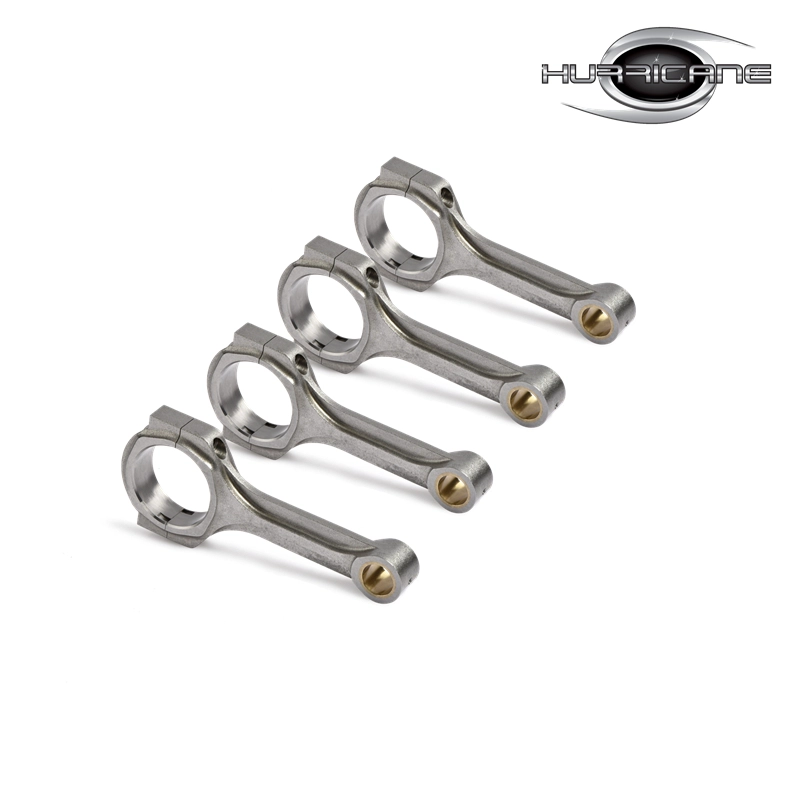

High performance forged 4340 steel connecting rod for Subaru EJ20/25

  • Material : 4340 Steel
  • Subaru EJ Application
  • Quality Assurance
  • Competitive Price
  • High Strength
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Subaru Connecting rod
  •            Subaru EJ20/25 4340 Steel rods
  •            Subaru EJ20/25 4340 Forged Rods
  •            Subaru EJ20/25 X-beam Rods Conrod
  • Product Details

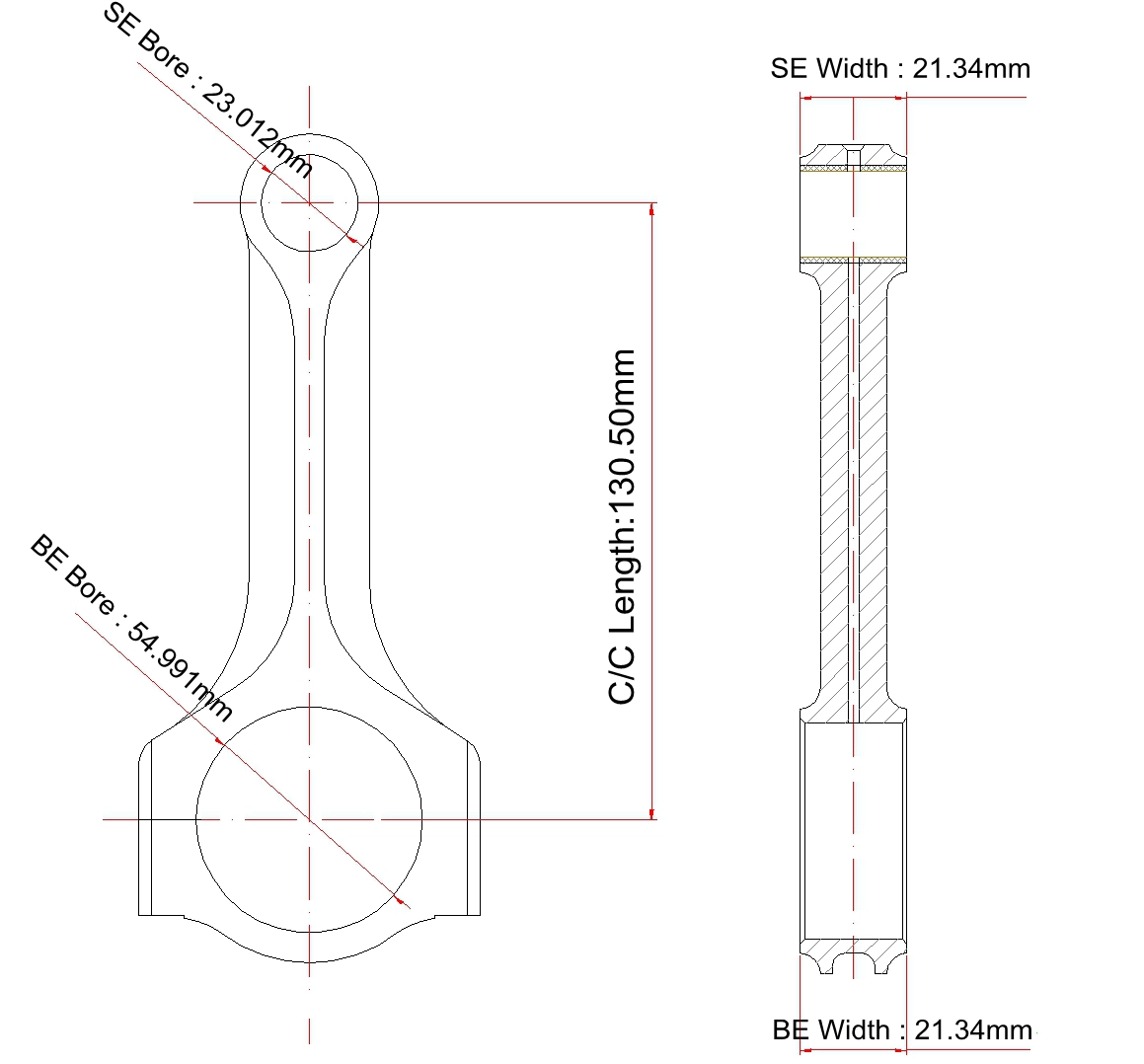

Subaru EJ20/25 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 130.50mm/5.137"
 Big End Bore Diameter: 54.991mm/2.165"
 Big End Width: 21.34mm/0.840"
 Small End Bore Diameter: 23.012mm /0.906"
 Small End Width: 21.34mm/0.840"
 Beam Style: X-beam


 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  750hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


1.100% machined from premium 4340 chrome moly forged steel
2.Aluminum-bronze wrist pin bushings are inserted for floating piston pin
3.Inspected and magnaflux inspected to ensure extreme reliability
4.Designed specifically for high horsepower forced induction and nitrous applications
5.Weight matched sets +/- 1 gram
6.Heat treated, shot peened to improve fatigue life
7.Engineered for engines up to 750 HP



Fitting information:

All Impreza's 1992 To 2014 EJ20 EJ25 Plus 2.1 And 2.3 Conversions. Suitable for the following vehicles:

• EJ20 Impreza WRX & STI 1992-2014 (Including all JDM turbo models).

• EJ25 Impreza WRX & STI 1992-2014 (Including all JDM turbo models).

• EJ25 Impreza WRX & STI 2001-2014 (USDM models).

• EJ20 Forester Turbo 1992-2003 (Including JDM models).

• EJ25 Forester Turbo 2004-2007(including JDM models).

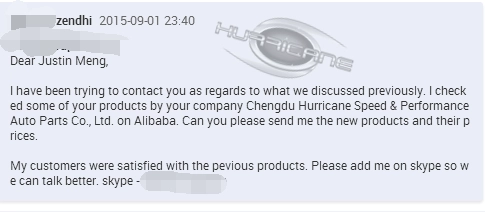

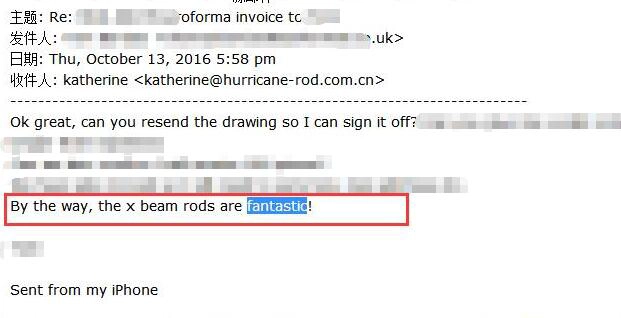

Customer Feedback For Hurricane Connecting Rods







Any inquiry for this rod, please feel free email us .

Hot Tags : race rod Performance rods conrod material connecting rod honda HUR26-001Y5137 Subaru EJ20 /25 Connecting Rods Subaru forged connecting rods Connecting Rods for Subaru EJ25 engines
