High performance X-beam connecting rods for Toyota 4AG 4AGE Corolla GTS 1.6L

High performance X-beam connecting rods for Toyota 4AG 4AGE Corolla GTS 1.6L

  • Material: forged 4340 Steel
  • 100% CNC Machine
  • Toyota 4age Engine
  • X-beam Design
  • High Strength
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock, the delivery time is 1-3 days.
  •              If the goods are not in stock, the delivery time is 90-95 days.
  • Payment Terms: T/T, Paypal, Western Union
  • Keywords: 4AGE X-beam Connecting Rods
  •           Toyota Engine Connecting Rod
  •           4AGE Forged X-beam Connecting Rods
  •           Toyota 4age high performance connecting rods
  •           Racing Toyota 4age Connecting Rod Manufacturer
Toyota 4AGE X-beam Connecting Rods Main Sizes

 Brand: Hurricane*         
 Center to Center Length: 122.00mm/4.803"
 Big End Bore Diameter: 44.98mm/1.771"
 Big End Width: 21.82mm/0.859"
 Small End Bore Diameter: 19.99mm /0.787"
 Small End Width: 21.82mm/0.859"
 Beam Style: X-beam

Toyota 4age high performance connecting rods Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  700hp
 Quantity  Sold as 4 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes,available
 Custom design  Yes, accept

4AGE Forged X-beam Connecting Rods Description:

1).These Toyota 4age connecting rods forged from 4340 EN24 aircraft chrome Moly quality steel material .

2). Designed and manufactured to X-beam for saving weight and superior strength and at economical price.

3). Per rod fully machined at Hurricane factory to meet high quality standard .

4). Shot Peening for improved fatigue life.

5). Dimensionally and magnaflux inspected to ensure extreme reliability .

6). Packed in balanced sets +/- 1 gram

  4A-GE (16-valve) Applications:  AA63 Carina 1983.06–1985 (Japan only)
 AT160 Carina 1985–1988 (Japan only)
 AT171 Carina 1988–1992 (Japan only)
 AA63 Celica 1983–1985
 AT160 Celica 1985–1989
 AE82 Corolla saloon, FX 1984.10–1987
 AE86 Corolla Levin 1983.05–1987
 AE92 Corolla 1987–1993
 AT141 Corona 1983.10–1985 (Japan only)
 AT160 Corona 1985–1988 (Japan only)
 AW11 MR2 1984.06–1989
 AE82 Sprinter 1984.10–1987 (Japan only)
 AE86 Sprinter Trueno 1983.05–1987 (Japan only)
 AE92 Sprinter 1987–1992 (Japan only)
 AE82/AE92 Corolla GLi Twincam/Conquest RSi 1986–1993 (South Africa)
 Chevrolet Nova (based on Corolla AE82)
 Geo Prizm GSi (based on Toyota AE92 chassis) 1990–1992
 4A-GE (20-valve) Fourth Generation "Silver Top" Applications:  AE101 Corolla Levin coupe 1991–1995 (Japan only)
 AE101 Sprinter Trueno coupe 1991–1995 (Japan only)
 AE101 Corolla Ceres hardtop 1992–1995 (Japan only)
 AE101 Sprinter Marino hardtop 1992–1995 (Japan only)
 AT210 Carina 1996–2001 (Japan only)
 AE101 Corolla 1991–2000 (Japan only)
 AE101 Sprinter 1991–2000 (Japan only)
 4A-GE(20-Valve) Fifth Generation "Black Top" Applications  AE111 Corolla Levin coupe 1995–2000 (Japan only)
 AE111 Sprinter Trueno coupe 1995–2000 (Japan only)
 AE101 Corolla Ceres hardtop 1995–1998 (Japan only)
 AE101 Sprinter Marino hardtop 1995–1998 (Japan only)
 AE101G Corolla BZ touring wagon 1995–1999 (Japan)
 AE111 Corolla 1995–2000 (Japan only)
 AE111 Sprinter 1995–1999 (Japan only)
 AE111 Sprinter Carib 1997–2000 (Japan only)
 AE111 Corolla RSi and RXi 1997–2002 (South Africa)
 AT210 Carina 1996-2001 (Japan only)

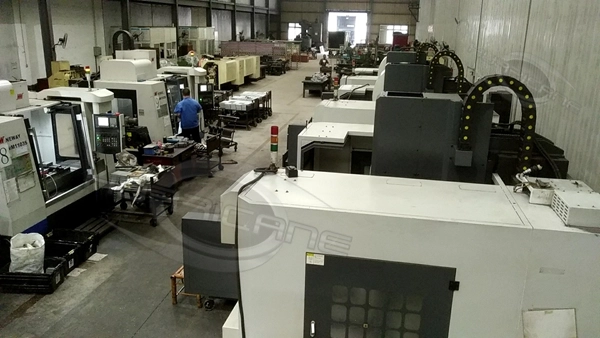

Hurricane CNC Workshop Picture 

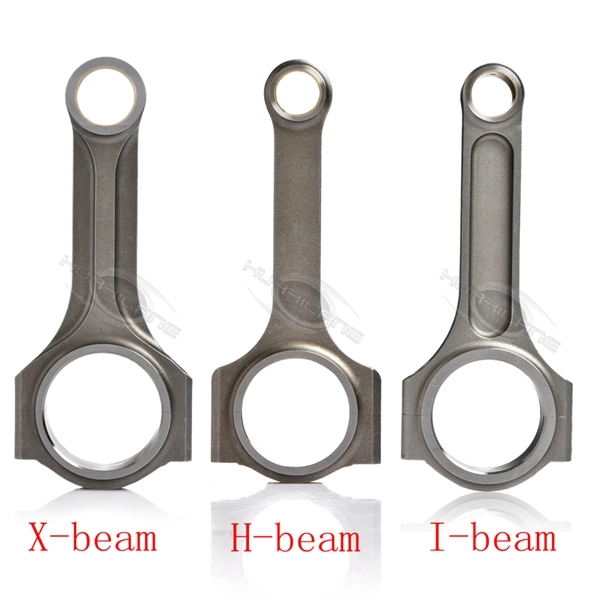

Hurricane produces connecting rods for a wide range of applications, include I-beam , H-beam , and X-beam styles , per rod can be made as specified request , dimensions and design included .

If  you can not find the connecting rod which you need on our website , please feel free send email tomarketing@hurricane-rod.com.cn or leave massage for us online.
