High Performance Steel Forged 4340 Connecting Rods Set for Toyota MR2 Turbo 3SGTE Engine , Set of 4High Performance Steel Forged 4340 Connecting Rods Set for Toyota MR2 Turbo 3SGTE Engine , Set of 4High Performance Steel Forged 4340 Connecting Rods Set for Toyota MR2 Turbo 3SGTE Engine , Set of 4

High Performance Steel Forged 4340 Connecting Rods Set for Toyota MR2 Turbo 3SGTE Engine , Set of 4

  • Competitive Price
  • Quality Assurance
  • High Performance
  • Racing Applications
  • MOQ:100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Toyota MR2 3SGTE
Part Type: Connecting Rods
Center to Center Length: 138mm/5.433"
Big End Bore Diameter: 51mm/2.008"
Big End Width: 26.8mm/1.055"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 26.8mm/1.055"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 610 gram per piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

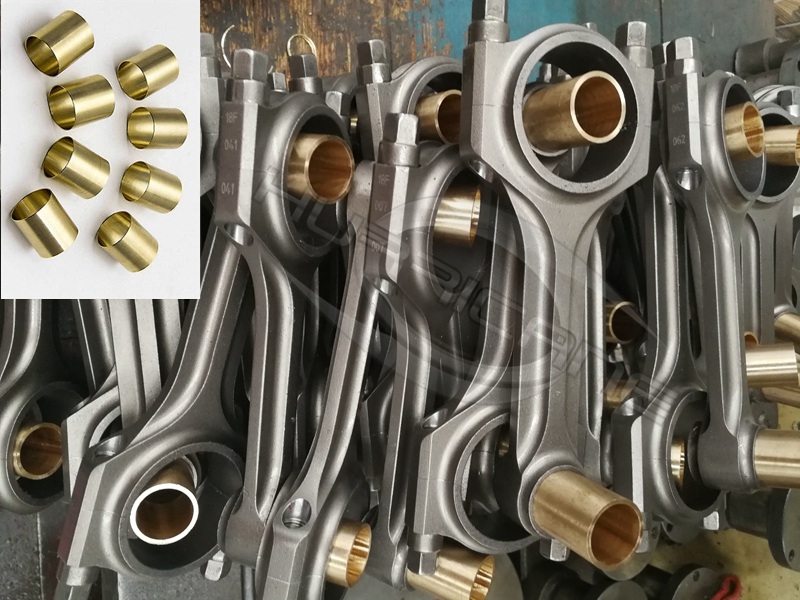

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept

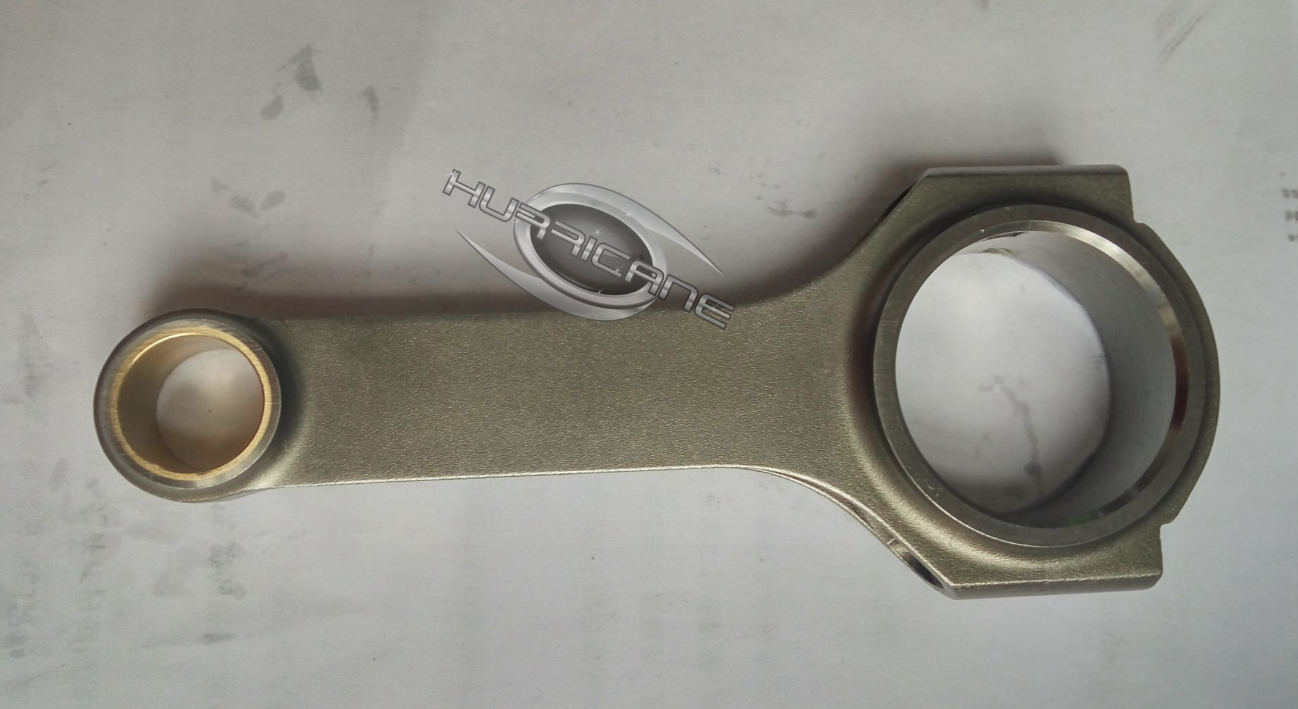

H Beam Connecting Rods Toyota MR2 Turbo 3SGTE Description

These H-beam connecting rods made for Toyota Celica MR2 2.0 16v 3SGTE Turbo engines , and forged from 4340 steel for superior strength, Sets are weight matched to +/- 1gram, these are the perfect choice for engines up to 550hp.



Hurricane performance Toyota MR2 2.0L Turbo 3SGTE connecting rods are direct fit for all 3S-GTE Engines:

Toyota Celica GT-Four ST165, ST185 and ST205
Toyota MR2 Turbo SW20
Toyota Caldina ST215 (GT-T)
Toyota Caldina ST246 (GT-Four)

Hurricane also supply I-beam and X-beam shape for these rods , you can choose different beam shapes based on your applications and customer's needs .




Hurricane X-beam design connecting rods



The other forged rods for toyota racing applications are available, such as Toyota 2jzgte rods, Toyota 1kd rods, Toyota 1uzfe rods and more, welcome to click here to look at more details.

Toyota MR2 Race Car


Note: Picture from Speedhunters.
