HOLDEN L67 SUPERCHARGED 3.8L V6 - forged 4340 steel H-beam connecting rods

Material : 40CrNiMoA/4340/EN24

Copper bush : QAL10-3-1.5

Bolts Threads : 3/8"

Delivery Time: If the goods are in stock , the delivery time is 1-3 days.

If the goods are not in stock , the delivery time is 60-65 days .

Payment Terms : T/T , Paypal , Western Union

Keywords:ecotec 3.8l v6 connecting rod

holden conrods

l67 engine connecting rpd

Holden 3.8L V6 Supercharged engines

Con rods Holden V6

4340 steel forged conrod

Display Parameters Contact Now

Product Details

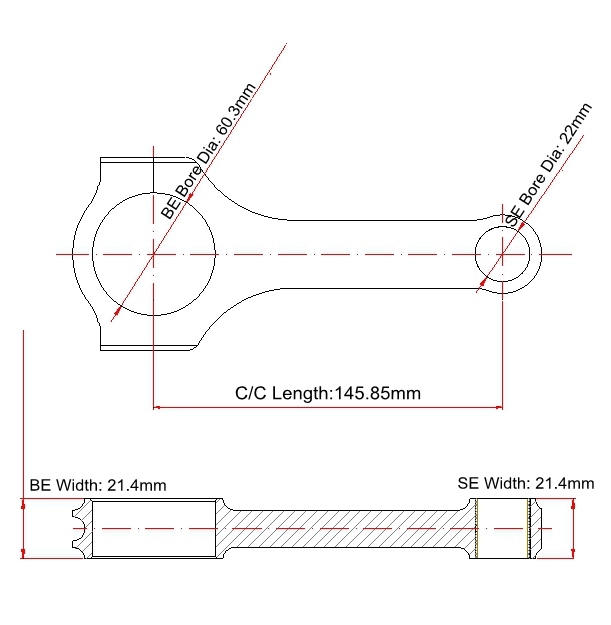

HOLDEN L67 SUPERCHARGED 3.8L V6 Main Sizes

Brand: Hurricane
Center to Center Length: 145.85mm/5.742"
Big End Bore Diameter: 60.3mm/2.374"
Big End Width: 21.4mm/0.843"
Small End Bore Diameter: 22mm/0.866"
Small End Width:21.4mm /0.843"
Beam Style: H-beam

3.8l v6 connecting rod 4340 steel connecting rod Features

Connecting Rod Bolt Diameter	3/8"
Approximate Connecting Rod Weight	XXXg
Advertised Horsepower Rating	900hp
Quantity	Sold as 6 pieces /set
Material	Forged 4340 steel
Connecting Rod Finish	Shot-peened, Polished
Pin	Bronze wrist pin bushings
Wrist Pin Style	Floating
Cap Retention Style	Cap screw
Weight Matched Set	Yes ,Balanced +/- 1g
Magnafluxed	Yes
Private Label	Yes ,available
Custom design	Yes, accept

Holden L67 V6 Conrods Description

Hurricane Speed and Performance is a leader in engineering con rods design, development, machine for the automotive OEM industry as well as the aftermarket industry. In addition to being a leading manufacturer of aftermarket conrods, we also offer piston and crankshaft for the engine building industry.

Features and Benefits include:
Manufactured from high quality durable materials since 2000
Professional and Precision engineers with 20 years experience
Designed for custom needs
Meets or exceeds original equipment specifications
Remanufactured premium and performance connecting rods are available for those applications that typically suffer from a broken, cracked or missing rod.

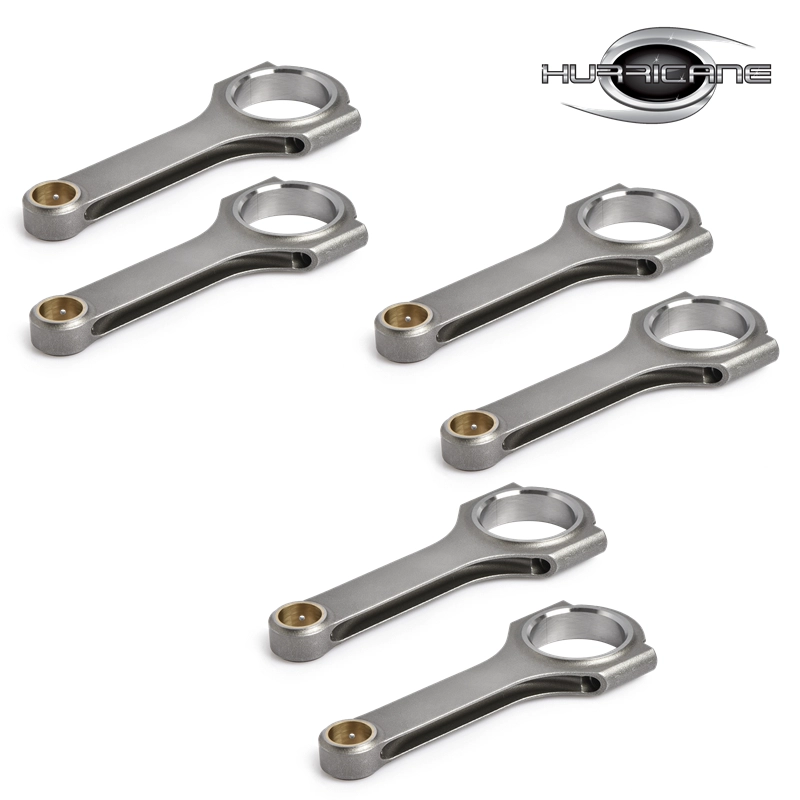

6x H-Beam connecting rods for Holden 3.8L V6 Supercharged engines.

All Hurricane Speed and Performance con rods feature:
Forged 4340 chrome alloy steel
Fully CNC machined
Heat-treated to Rockwell C34-38
Fully shot peening
Balanced weight:±1g
Connect with aluminum-bronze wrist pin bushings
Install copy ARP 2000 bolts, rated to 220,000psi tensile strength

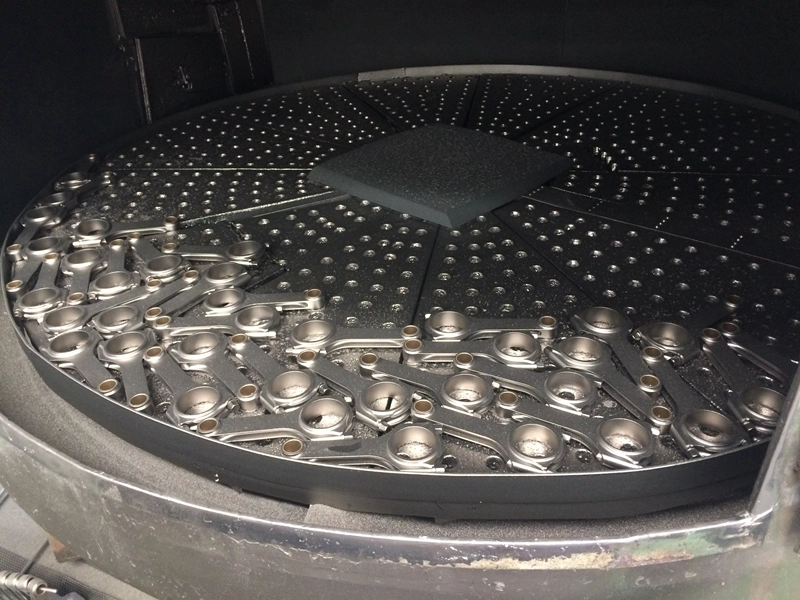

Note: As a quality rods manufacturer in racing industries, all the Hurricane connecting rods are shot peened fully with steel balls at factory to improve fatigue life to enhance strength , and also help to make the rods be more beautiful and smooth .

Hot Tags : Hurricane connecting rod Forged Aircraft 4340 Steel conrods Wholesale Various High Quality Conrods H-beam connecting rod HUR53-001Z5472 Holden 3.8L V6 conrods
