H beam connecting rods for Vauxhall Opel  C20LET/Z20LET/C20XE 2.0L, 21mm wrist pinH beam connecting rods for Vauxhall Opel  C20LET/Z20LET/C20XE 2.0L, 21mm wrist pinH beam connecting rods for Vauxhall Opel  C20LET/Z20LET/C20XE 2.0L, 21mm wrist pin

H beam connecting rods for Vauxhall Opel C20LET/Z20LET/C20XE 2.0L, 21mm wrist pin

  • Competitive Price
  • Quality Assurance
  • MOQ:100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Vauxhall Opel  C20LET/Z20LET/C20XE 2.0L
Part Type: Connecting Rods
Center to Center Length: 143mm/5.630"
Big End Bore Diameter: 52mm/2.047"
Big End Width: 26.3mm/1.035"
Small End Bore Diameter: 21mm /0.827"
Small End Width: 21.9mm/0.862"
Beam Style: H-beam
Connecting Rod Bolt Diameter:3/8"
Approximate Connecting Rod Weight: 575g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Hurricane connecting rods perfectly match Vauxhall Opel C20LET/Z20LET/C20XE 2.0L engine. Forged connecting rod Opel are fully machined and set balanced to + or – 1 gram.  H beam design greatly increases strength and durability. All rods are shot blasted, micro-polished to improve fatigue life. bronze wrist pin bushings are fitted to each rod to increased wear resistance.

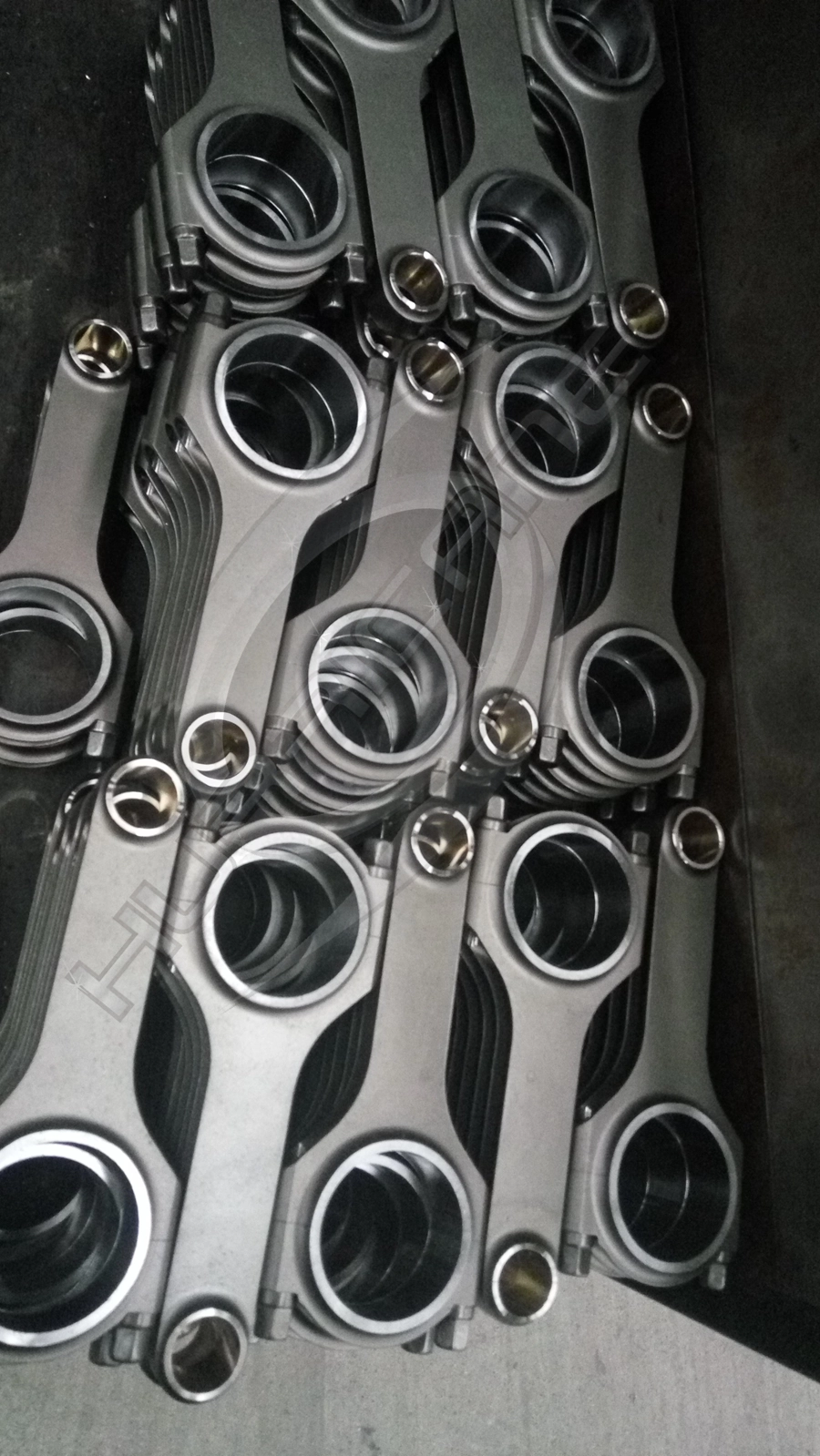

Below is Vauxhall Opel C20LET/Z20LET/C20XE 2.0L finished H-beam rods picture , except the high standard tolerance controled, the appearance looks very different with other rods in market . And they can hold about 600HP, it is a good choice for your high performance opel c20xe applications .

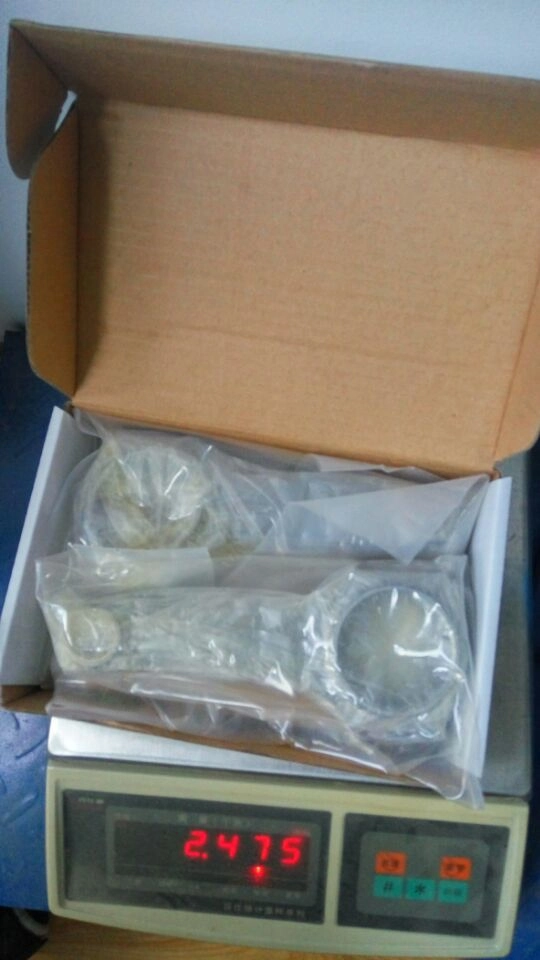

All the rods packaged well at Hurricane factory before shipping , here a Opel c20xe h-beam rods packing picture for your reference as below :



Rifle Drilled (Also called Optional forced pin oiling) or Logo printing service sold separately, please contact us for assistance. Hurricane Speed anmPerformance also provide a wide range of sizes for the most popular engine types. You can download our products catalog at this page.
