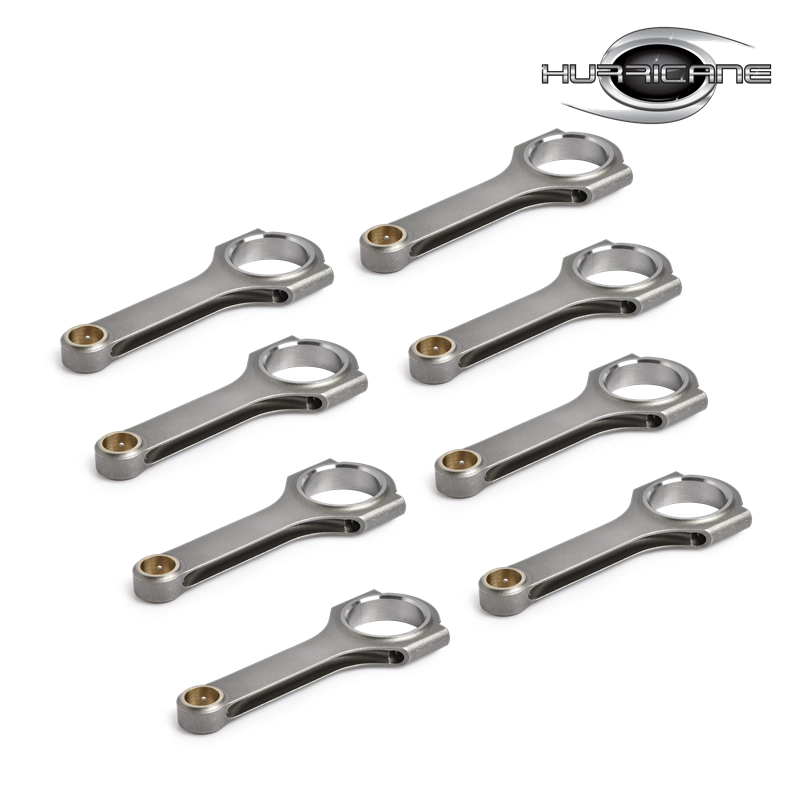

H beam connecting rods for Chrysler RB 426 440 HEMI, 6.860 rod length
- Competitive Price
- High Performance
- Quality Assurance
- MOQ：80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Chrysler RB 426 440 HEMI
Part Type: Connecting Rods
Center to Center Length: 174.24mm/6.860"
Big End Bore Diameter: 63.5mm/2.500"
Big End Width: 25.58mm/1.007"
Small End Bore Diameter: 26.16mm /1.030"
Small End Width: 25.4mm/1.250"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 800g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
1. Precision finished at Hurricane Speed&Performance on the newest and most modern machinery.
Engine: Chrysler RB 426 440 HEMI
Part Type: Connecting Rods
Center to Center Length: 174.24mm/6.860"
Big End Bore Diameter: 63.5mm/2.500"
Big End Width: 25.58mm/1.007"
Small End Bore Diameter: 26.16mm /1.030"
Small End Width: 25.4mm/1.250"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 800g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
2. Engineered and processed from high strength 4340 chromoly steel forgings
3. Micro-polished and shot blasted not only improve fatigue life, but also leave a smooth and beautiful appearance.
4. Per rod's small end bushed for floating piston pins.
5.Weight matched sets within 2gram for optimal balancing .

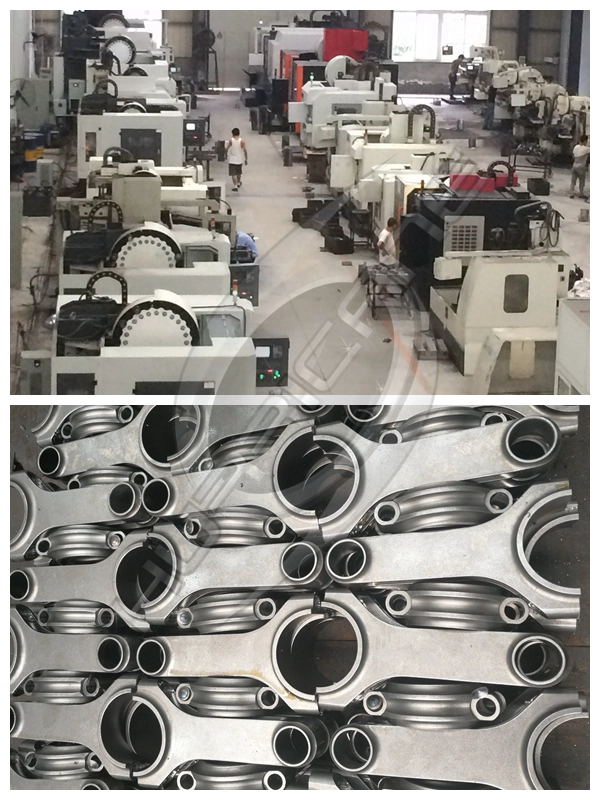

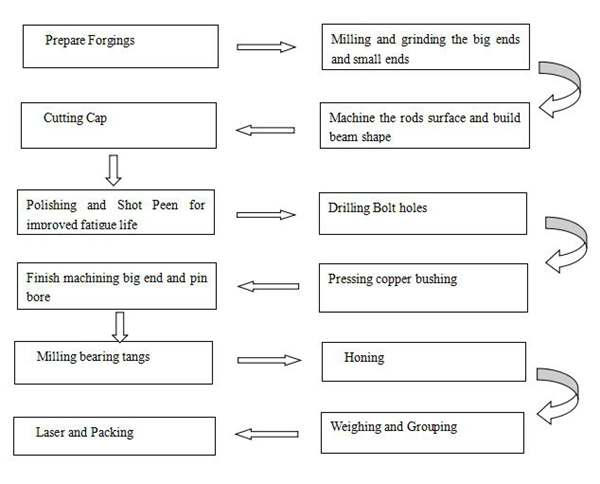

Process of finish connecting rod at Hurricane workshop
Hurricane connecting rods factory workshop
Hurricane also offer Ford H beam connecting rods, including Small Block, Big Block, 351 WINDSOR and so on. Visit Ford Rods Page for sizes and general information. You may also find FAQs and Video pages helpful.
