H beam Connecting Rods for Toyota Corolla 4AGE 4AGZE Engine - Hurricane Manufacturer

  • Competitive Price
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Toyota Celica Corolla ​MR2 4AG 4AGE AE86 GTS 1.6L
Part Type: Connecting Rods

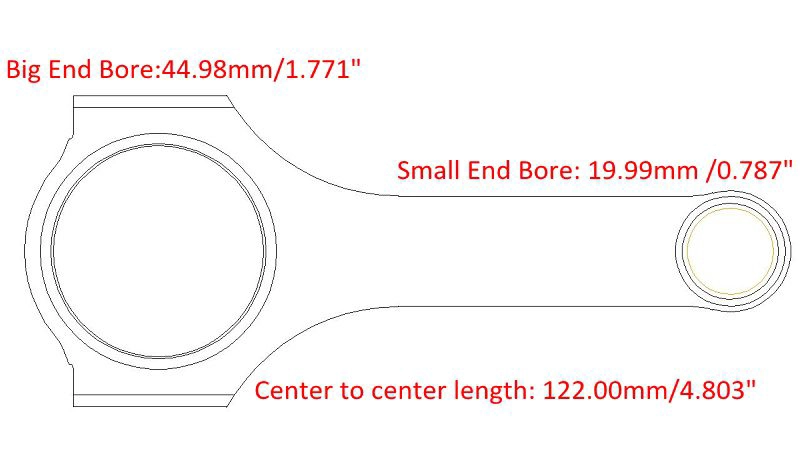

Center to Center Length: 122.00mm/4.803"
Big End Bore Diameter: 44.98mm/1.771"
Big End Width: 21.82mm/0.859"
Small End Bore Diameter: 19.99mm /0.787"
Small End Width: 21.82mm/0.859"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 490g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Chrome-Moly Connecting Rods for Toyota 4AGE & 4AGZE Engines Descripition


These forged 4340 steel connecting rod for Toyota 4AGZE engines, all these 4AGZE H-beam connecting rods are heat treated , shot peened , and small ends are bushed for a fully floating pin , Packaged in balanced per set +/- 1 g . This rod is an H-Beam construction giving it a very strong strength rating for its cost. We often use this rod in builds that will see high power, high abuse, or long periods of high output use.



Hurricane Manufacturer produced H beam connecting rods Fits for ToyotaCelica Corolla MR2 4AG 4AGE AE86 GTS 1.6L engines.
Year: 1988-1989 Celica, 1988-1989 MR2, 1988-1991 Corolla, 1991-1995 Corolla JDM
 Car model: Celica / MR2 / Corolla / Corolla JDM
 Engine Specification:  4A-GE 16V Gen 2 / Gen 3, 4A-GE 20V Gen 4 / Gen5, 4A-GZE 1.6L 16V



Hurricane Finished H beam Toyota Corolla 4AGE 16V forged conrods are perfectly machined, shot peened and honed to use size. Except H beam design, Hurricane also offer I beam design for 4AGE engine. check here to view more details: 4340 Forged Connecting Rods Toyota 4AGZE 122mm Rods Length. If you are unsure about which rod you should choose for your build, please dont hesitate to contact us now

The clean, windage-reducing configuration combined with the strength of the rod design, consistent high quality and excellent finish has proven to be extremely popular with racers or performance shop owners in all over the world.  please check Quality FeedBack to see what our customer said for hurricane connecting rods.

Toyota Corolla Car Picture Share
