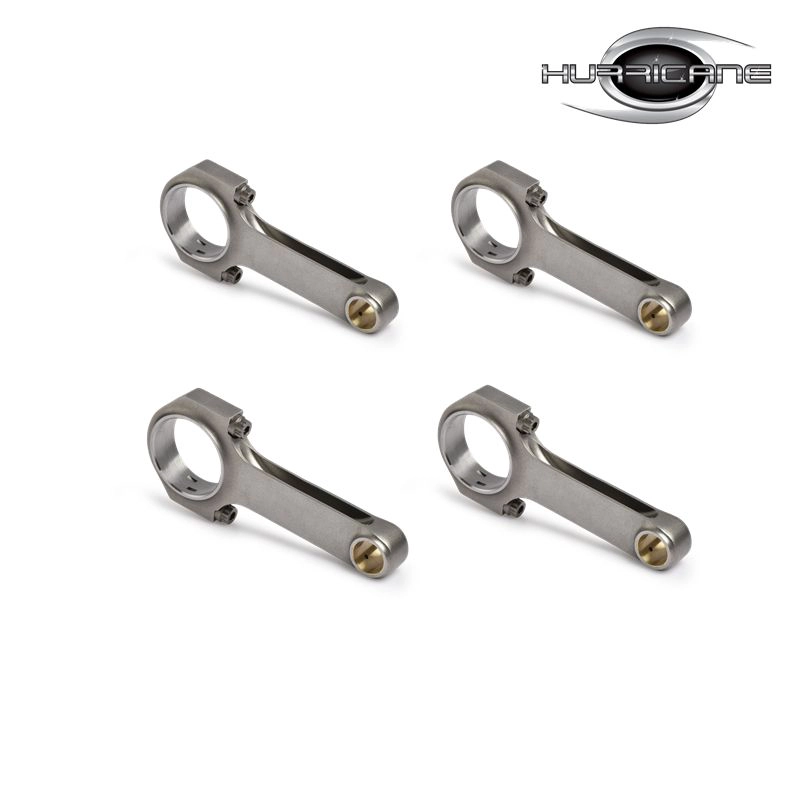

H-Beam Connecting Rods, 5.400" Length, VW Journal 2.165"/55mm

H-Beam Connecting Rods, 5.400" Length, VW Journal 2.165"/55mm

  • Forged 4340 Steel
  • 3/8 ARP2000 bolt
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : VW Air-Cooled connecting rod
  •            Air Cooled Engine
  •            5.400 vw connecting rods
  •            aircooled vw parts
  •            air cooled rods
  •            Hurricane race connecting rod for sale
  •            Forged 4340 steel performance rods

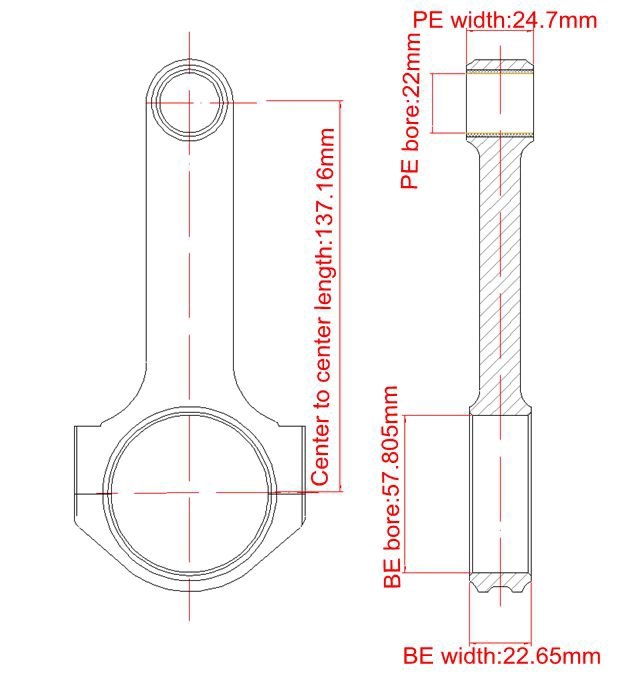

VW Air-Cooled connecting rod, 5.400" length Main Sizes


 Brand: Hurricane
 Center to Center Length: 137.16mm/5.400"
 Big End Bore Diameter: 57.805mm/2.276"
 Big End Width: 22.65mm/0.892"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 24.7mm/0.972"
 Beam Style: H beam

5.400" VW forged 4340 steel performance rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  580g
 Advertised Horsepower Rating  750hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

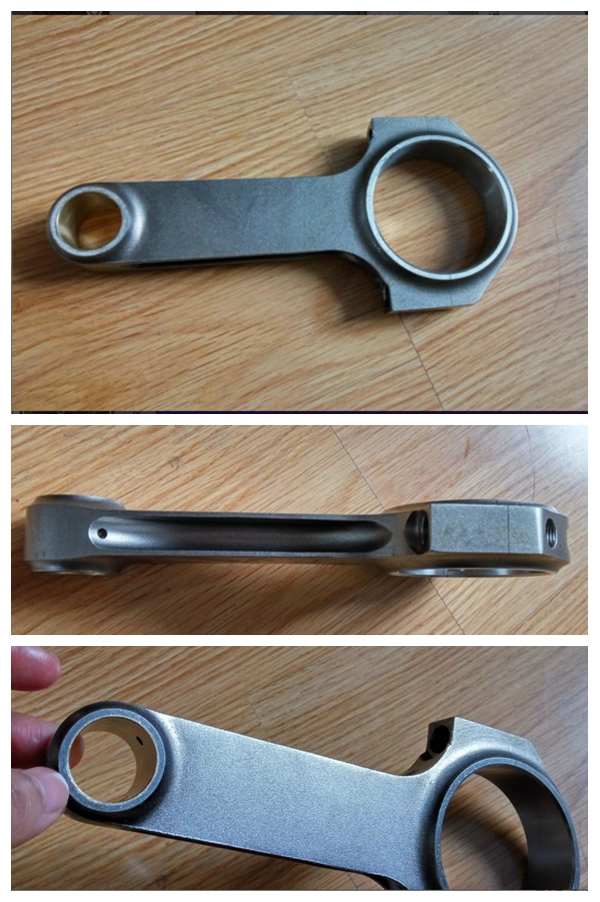

Hurricane air cooled connecting rods Description


As engine components manufacturer in china, Hurricane Speed and Performance forged 4340 chromoly H-Beam connecting rods are manufactured in a wide variety of lengths with either VW or Chevy journals to fit your exact engine configuration. Hurricane Speed and Performance only uses the strongest high quality chromoly for their forgings. Each Hurricane connecting rods set is CNC machined to precise tolerances and stroke clearanced for the largest stroker crankshafts. These rods are the perfect match for your next engine build.

These are produced in 5.392” 5.394", 5.400", 5.500" & 5.600" Lengths. Select VW (Type 1) journal on 5.400" rods OR Chevy journal on 5.400", 5.500", & 5.600" rods. All link as follows:

VW Journal


Specs of 5.400” forged 4340 steel, vw performance connecting rods :
Length: 5.400"
Rod Journal: VW (2.165"/55mm)
Wrist Pin: 22mm
Bolt Dia: 3/8" ARP 2000


Connecting Rods, 5.400" Length, 3/8" ARP Bolts, H-Beam, VW Journal, Hurricane Speed&Performance race connecting rods, Sold as Set. MOQ: 80PCS for new customers.


Call or email (marketing@hurricane-rod.com.cn) to order your first order. Of course, VW custom conrods can be provided also.
