GM Duramax Diesel forged H-beam connecting rod
- Fully CNC Machine
- Valid Lead Time
- Competitive Price
- 4340 forged steel
- Diesel Engine
- MOQ:100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords:Chevy 6.6L Duramax Diesel 6.420" Connecting Rods GM
- Hurricane 4340 GM 6.420" duramax diesel connecting rods
Brand: Hurricane
Engine: GM Duramax
Part Type: Connecting Rods
Center to Center Length: 163.07mm/6.420"
Big End Bore Diameter: 66.98mm/2.637"
Big End Width: 28.32mm/1.115"
Small End Bore Diameter: 34.49mm /1.358"
Small End Width: 38.99mm/1.535"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16 "
Approximate Connecting Rod Weight: 1225g/piece
Advertised Horsepower Rating: 1600hp
Quantity: Sold as 8pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/8b/20180502095342094.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/4c/20180502100111302.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/34/20180502100123411.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/6a/20180502100803982.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/4e/20200727150536607.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/c9/20200727150147729.jpg.webp)
Engine: GM Duramax
Part Type: Connecting Rods
Center to Center Length: 163.07mm/6.420"
Big End Bore Diameter: 66.98mm/2.637"
Big End Width: 28.32mm/1.115"
Small End Bore Diameter: 34.49mm /1.358"
Small End Width: 38.99mm/1.535"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16 "
Approximate Connecting Rod Weight: 1225g/piece
Advertised Horsepower Rating: 1600hp
Quantity: Sold as 8pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
These H-beam connecting rods , engineered for high performance Chevy (GM) Duramax diesel engine applications , are made using qualified 4340 forged steel , each rod is featured with an oil groove into pin end to improve pin lubrication, and machined to handle extreme engine loads , tapered on pin end to save weight on the reciprocation end and give increased clearance for fully boxed pistons, to offer exceptional strength for the rods .
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/8b/20180502095342094.jpg.webp)

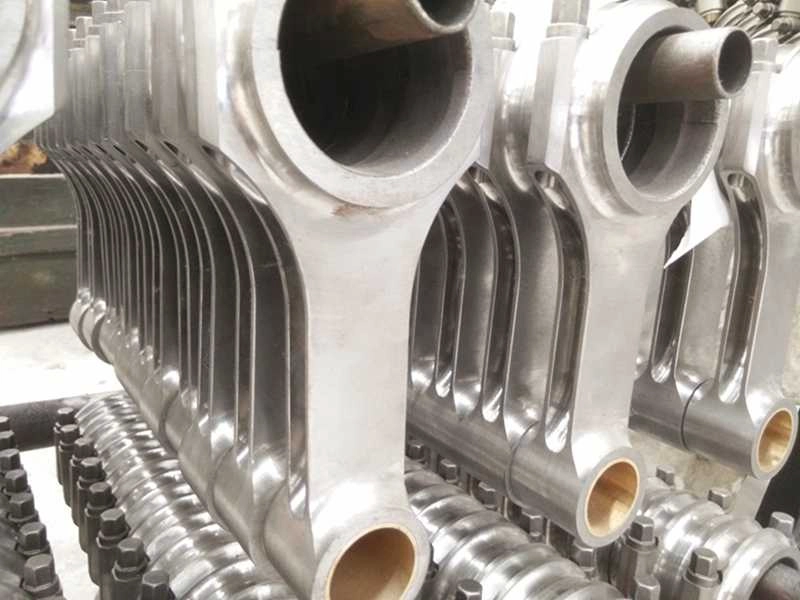

Note: Hurricane Connecting rod GM Duramax Diesel are all shot blasted and mico-polished. to view more of our conrods production process, please check:
#1, Youtube: How it's made: Connecting rod

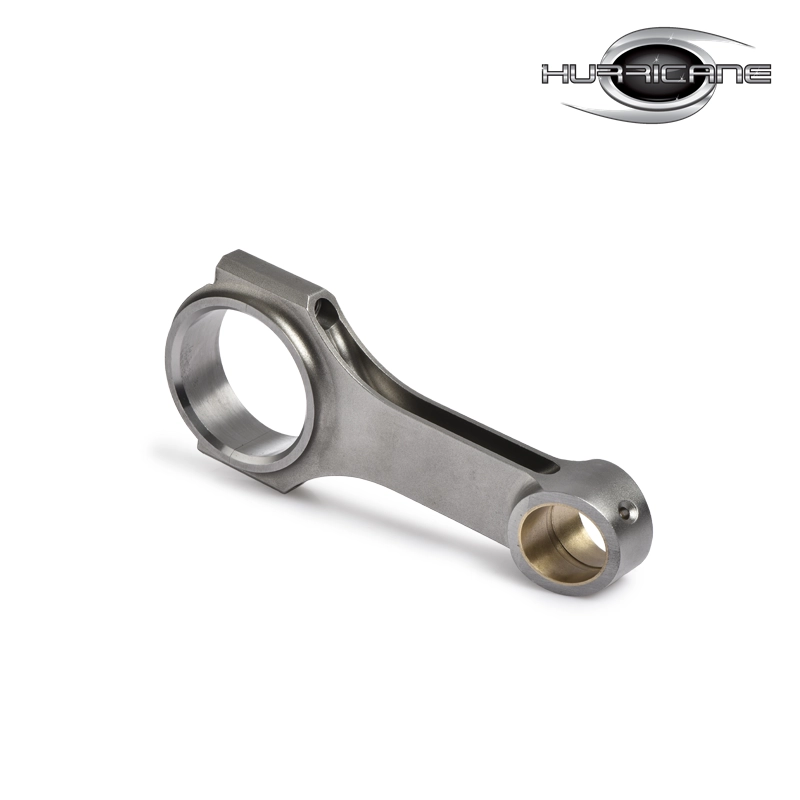

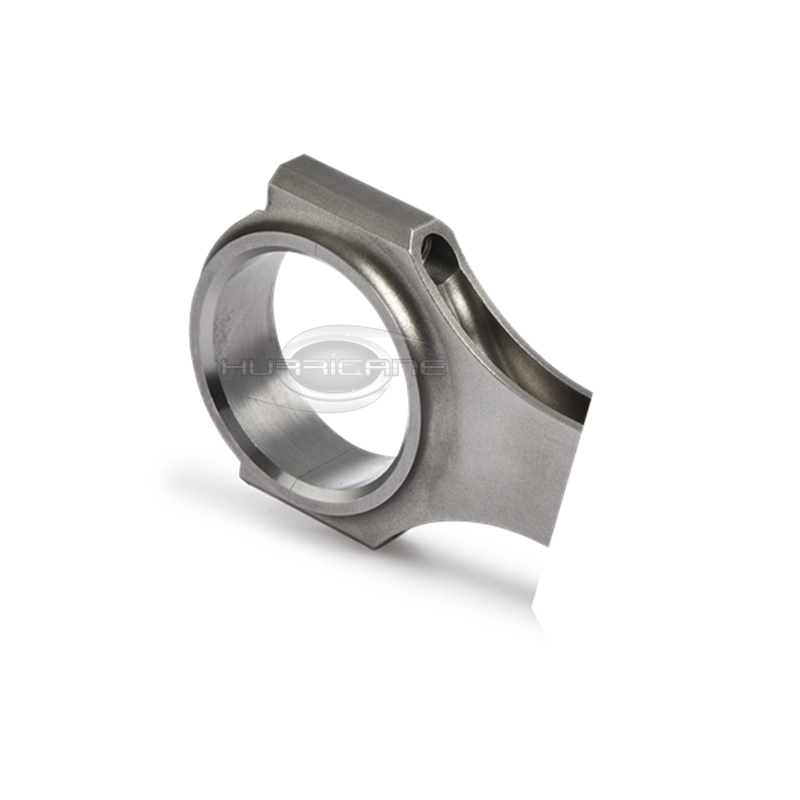

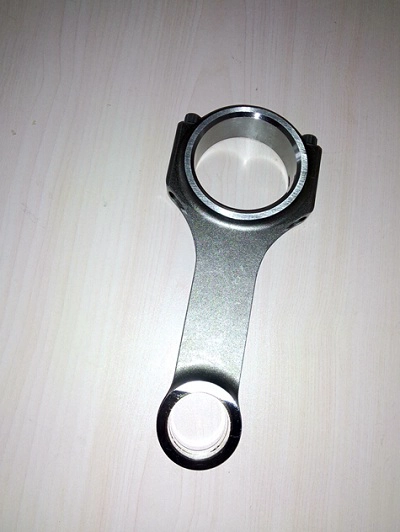

Hurricane H beam Duramax Diesel Rods Pictures
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/a6/20180502095806956.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/6c/20180502095820317.jpg.webp)

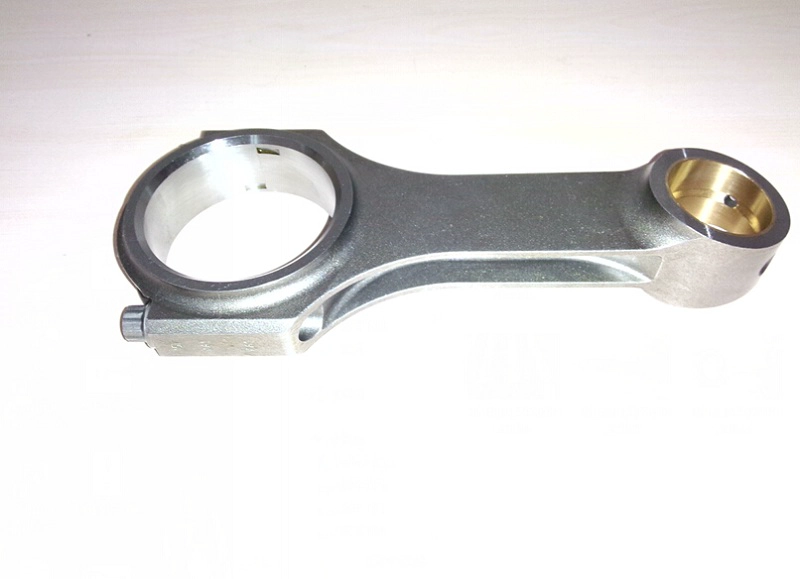

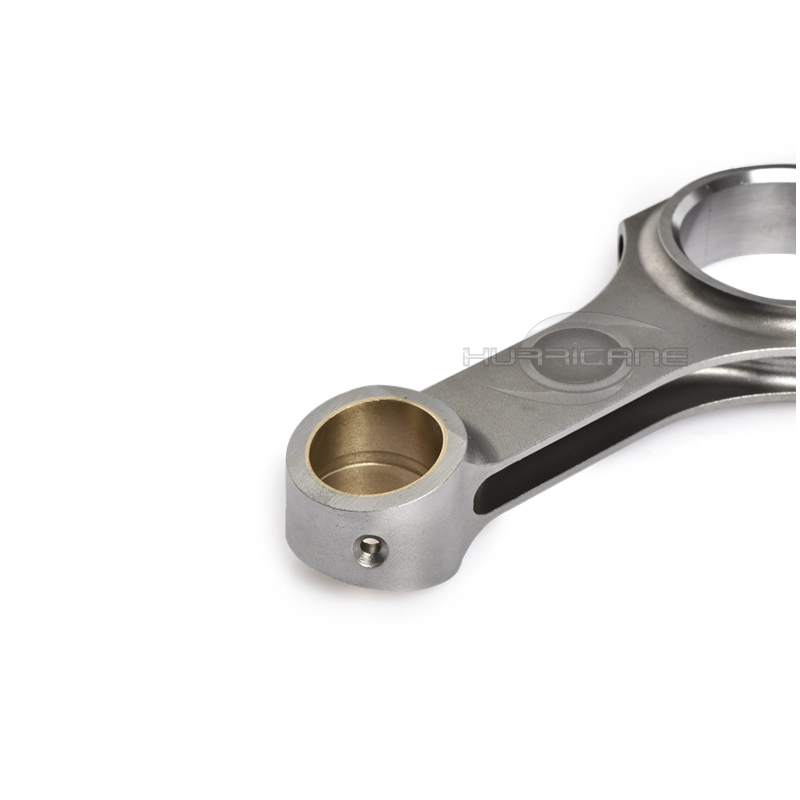

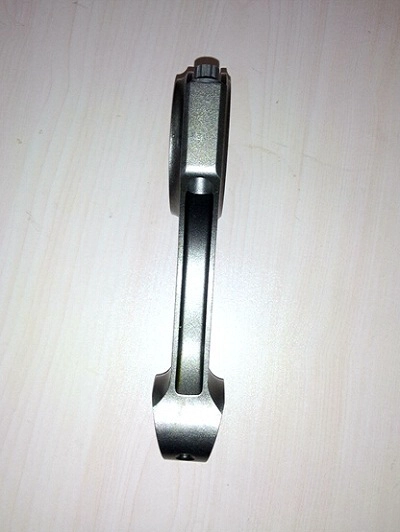

Note: GM Duramax performance connecting rods finished with tapered small end .

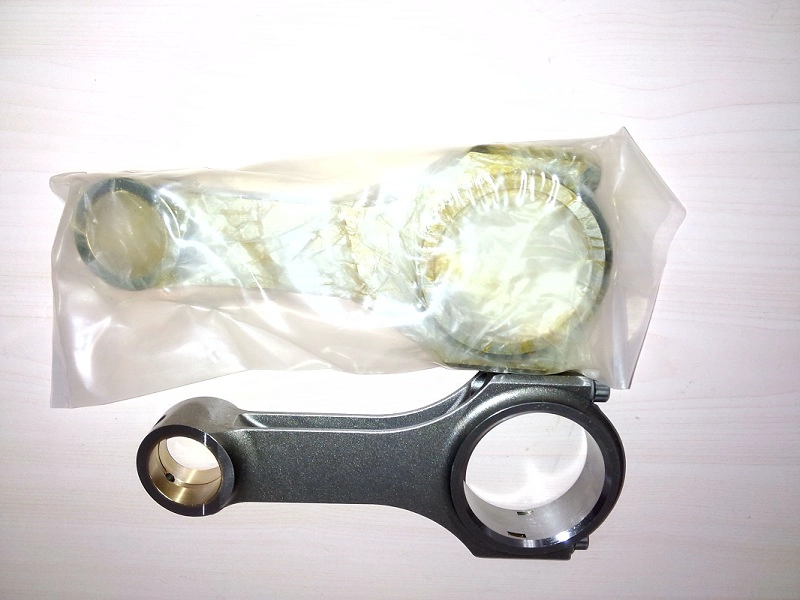

![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/4c/20180502100111302.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/34/20180502100123411.jpg.webp)
If you prefer I beam design connecting rods for GM Duramax engine, please check: Hurricane 4340 GM 6.420 duramax diesel connecting rods I beam

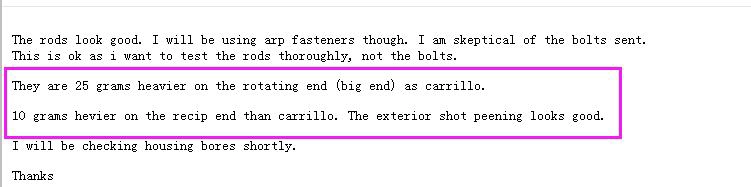

Customer Feedback for Duramax Connecting Rods
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/6a/20180502100803982.jpg.webp)

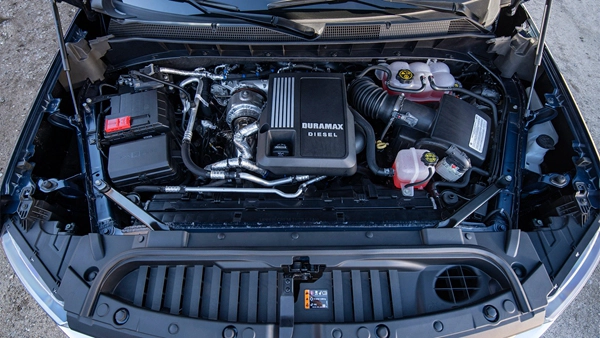

Duramax diesel engine and car
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/4e/20200727150536607.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/c9/20200727150147729.jpg.webp)
If you have any interest, please contact us now or send inquiry for us online. your message will get reply within 24 hours.
