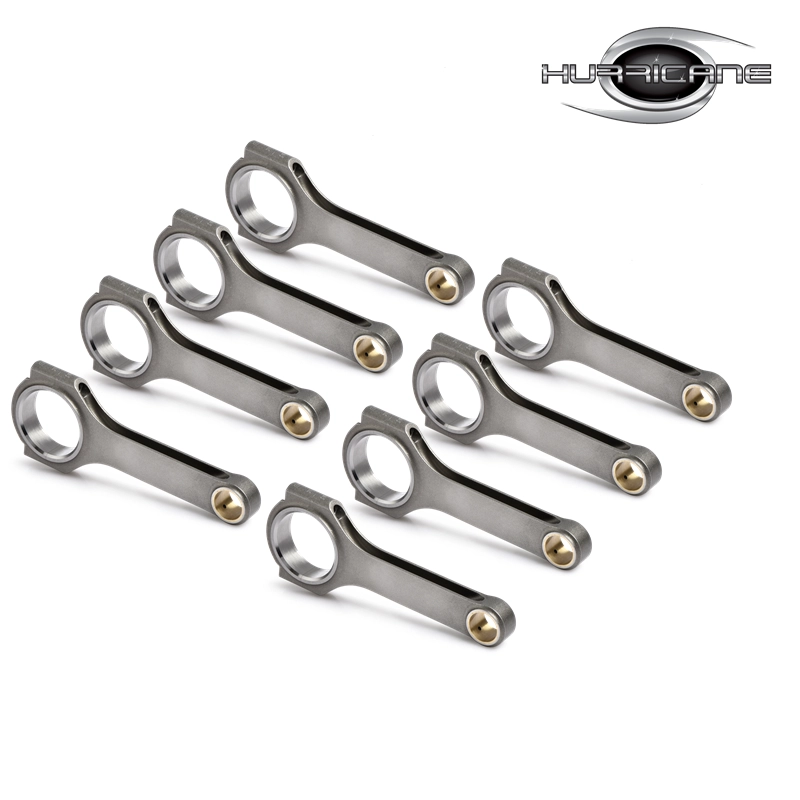

GM 396/454/502 BBC 6.700 inch Connecting Rods
- Material : Forged 4340 Steel
- Bolts Size : 7/16"
- High Strength
- Competitive Price
- MOQ: 100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : Chevrolet(gm) h-beam connecting rod
- GM V8 performance H beam connecting rods
- Chevy forged 4340 steel V8 BBC conrods
- Chevy V8 BBC 6.700" H beam conrods
- Racing-car connecting rod manufacturer
GM V8 performance H beam Connecting Rods Main Sizes

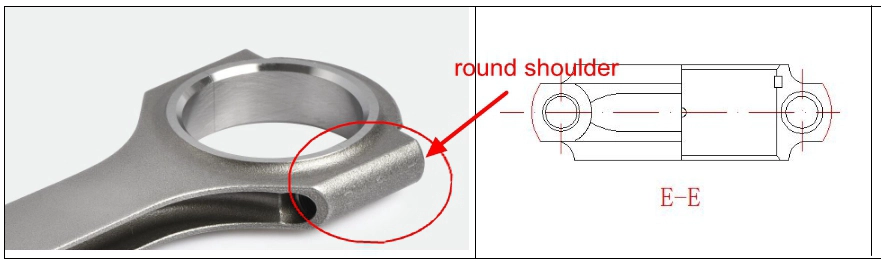

GM BBC forged connecting rods made from high tensile chromoly 4340 steel forgings for super strength and durability, GM V8 performance H beam connecting rods are 100% CNC machine to meet high quality standard , engineered to H-beam to save more weights and designed to round shoulder for beautiful appearance , bronze wrist pin bushings are also fitted to each bbc rods for increased wear resistance, and are compatible with aftermarket forged pistons without additional machining. Chevy V8 BBC 6.700" H beam conrods could support 1000 horsepower.

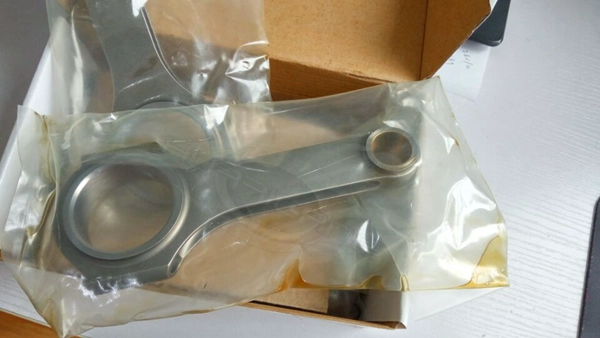

Chevrolet(gm) H-beam Connecting Rod Picture
Q : Can you do custom connecting rods ?
A : Yes , there are some steps for your reference as below :

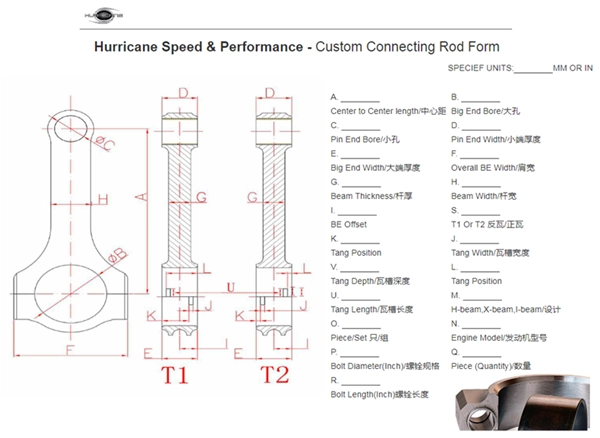

1)received the drawing or sample or the full specs of your rods( Custom Connecting Rod Form ) , then we make quote detail
2) if you agree our quote , then we design drawing
3) Confirm the drawing and deal details
4) All confirm finished , 30% deposit required , then we make sample for you to test if necessary
5) balance before shipping , then we arrange shipping by your forwarder or our forwarder in time once received payment .
You also can click here to fill in all your rods sizes and send file back to us, after checked , accurate quotation will be sent to you by email within 3 days .
| Brand: Hurricane |  |

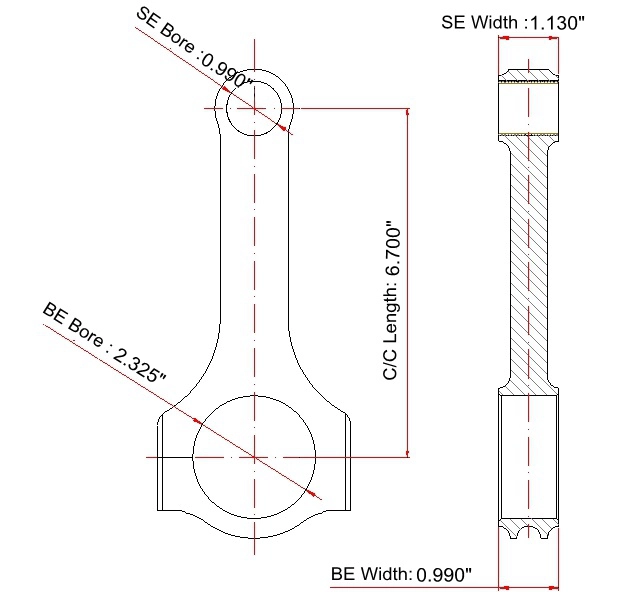

| Center to Center Length: 170.18mm/6.700" | |
| Big End Bore Diameter: 59.047mm /2.325" | |
| Big End Width: 25.17mm/0.990" | |
| Small End Bore Diameter: 25.146mm/0.990" | |
| Small End Width: 28.70mm/1.130" | |
| Beam Style: H-beam |
Chevy forged 4340 steel V8 BBC conrods Features
| Connecting Rod Bolt Diameter | 7/16" |
| Approximate Connecting Rod Weight | xxx |
| Advertised Horsepower Rating | 1000hp |
| Quantity | Sold as 8 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes, Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
Chevy V8 BBC 6.700" H beam Conrods Description

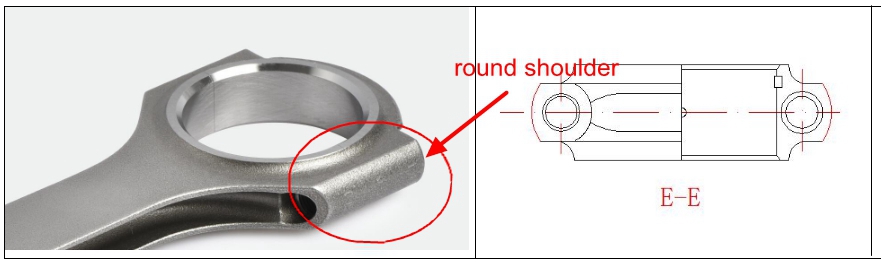

GM BBC forged connecting rods made from high tensile chromoly 4340 steel forgings for super strength and durability, GM V8 performance H beam connecting rods are 100% CNC machine to meet high quality standard , engineered to H-beam to save more weights and designed to round shoulder for beautiful appearance , bronze wrist pin bushings are also fitted to each bbc rods for increased wear resistance, and are compatible with aftermarket forged pistons without additional machining. Chevy V8 BBC 6.700" H beam conrods could support 1000 horsepower.
Chevrolet(gm) H-beam Connecting Rod Picture
FAQs:
Q : Can you do custom connecting rods ?
A : Yes , there are some steps for your reference as below :
1)received the drawing or sample or the full specs of your rods( Custom Connecting Rod Form ) , then we make quote detail
2) if you agree our quote , then we design drawing
3) Confirm the drawing and deal details
4) All confirm finished , 30% deposit required , then we make sample for you to test if necessary
5) balance before shipping , then we arrange shipping by your forwarder or our forwarder in time once received payment .
You also can click here to fill in all your rods sizes and send file back to us, after checked , accurate quotation will be sent to you by email within 3 days .
