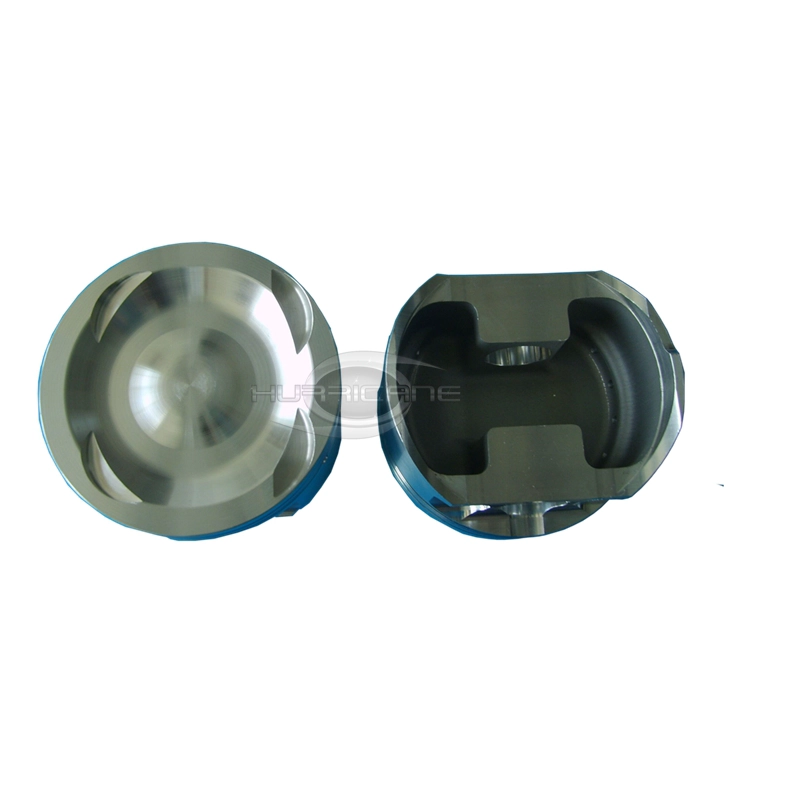

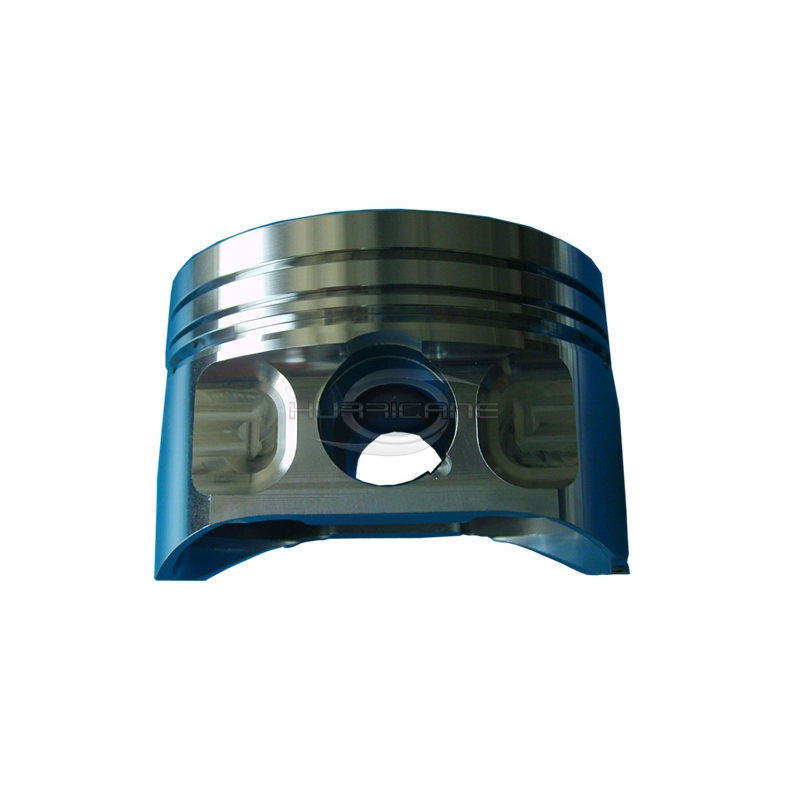

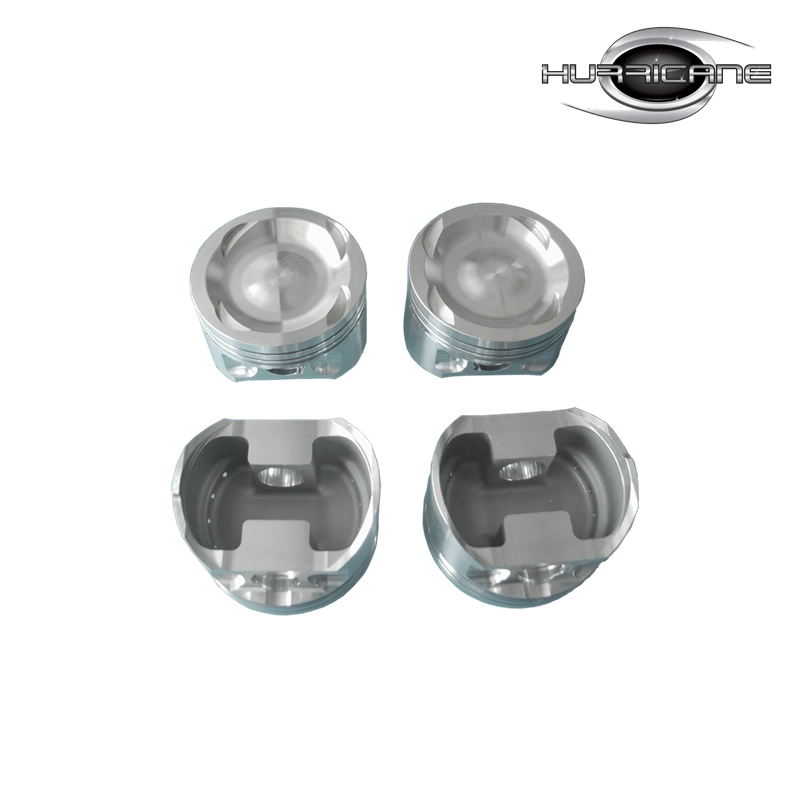

Forged pistons for the Vauxhall Opel C20XE 2.0ltr 16v engine, 86.5mm Pistons
- Fast Shipping Great Price Guarantee
- Tech Advice Easy Returns
- Forged Pistons,4032 Aluminum, Hurricane, Flat, 86.50mm Bore,Opel c20xe
- Set of 4
- Part Number: Opel-00301
- Estimated lead time: 35-45days
- Product Details
Part Number: Opel-00301
Engine model: Opel c20xe
Material: 4032 Forged Aluminum
Bore: 3.405in/86.50mm
Pin Diameter: 0.827 in/21mm
Total Height : 2.126in/ 54mm
Piston Style: Flat Top
Wrist Pin Included: No
Piston Ring: 1.50mm x 1.20mm x 2.5mm
Piston Rings Included: No
Highly compacted : 1.181in/30mm
Quantity: Sold as a set of 4
Weight : 0.308kg/piece
MOQ : 400pcs

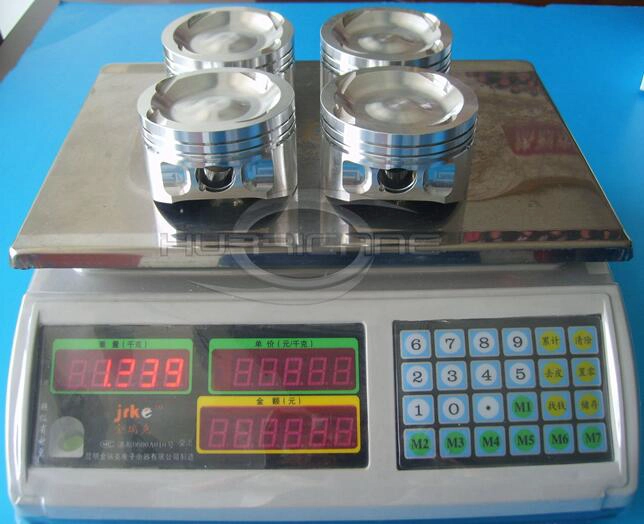

These forged piston sets designed and engineered for high performance Opel C20XE applications , all the Opel C20XE piston sets balanced to +/- 1gram, 100% CNC machined，weight balanced , fully inspected, include property paramater of metal Inspection, Chemical Inspection, Mechanical Inspection, Hardness Inspection and Over sintering Inspection etc . Compared to casting pistons , forged pistons are more lighter and stronger .
Hurricaine Piston Testing Equipment :

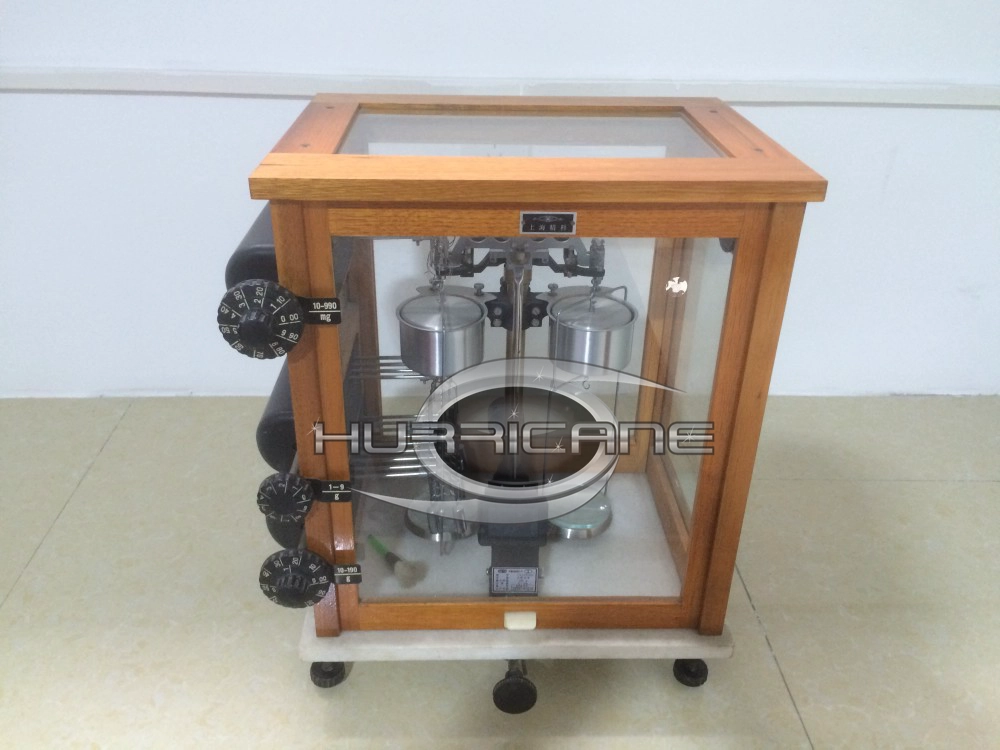

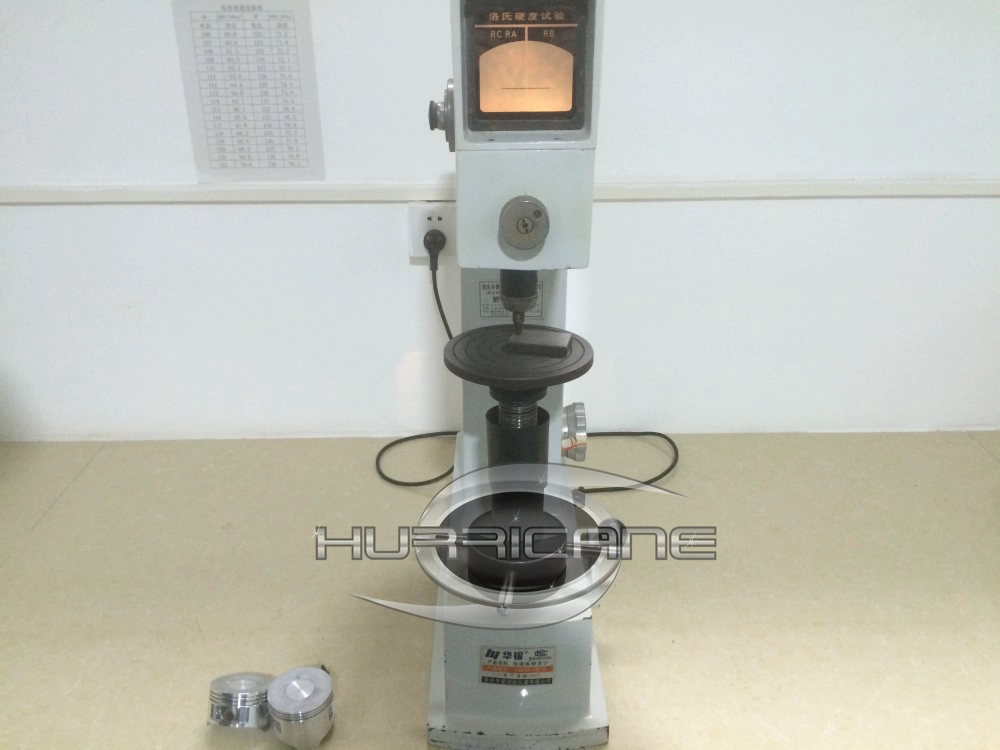

Banlance Weight Machine Hardness Test Machine

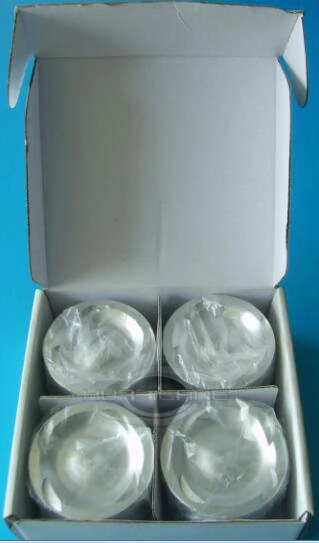

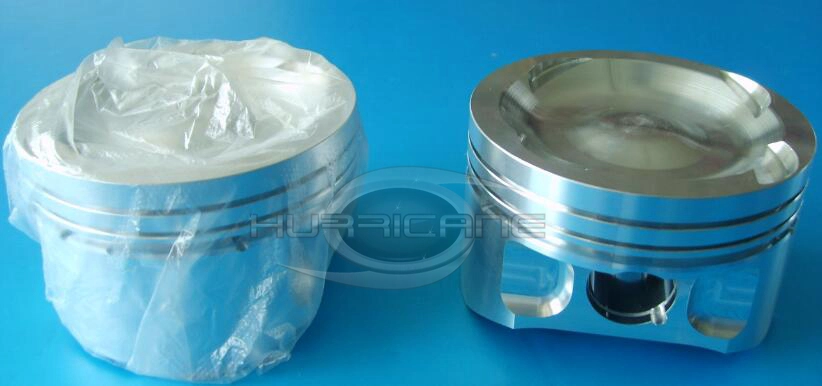

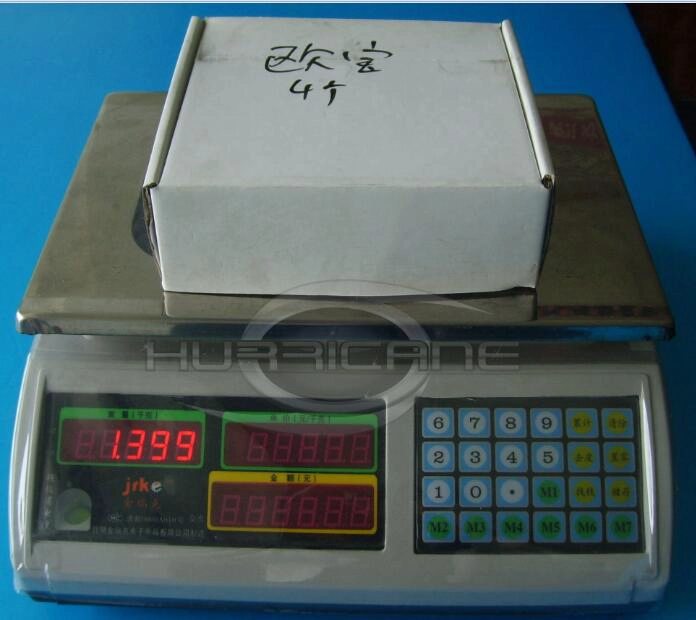

All these set pistons are not include piston rings and wrist pins, packaged set of 4pcs , and each piston separated by cardboard inside of carton box to protect pistons during transportation .
Custom application pistons are available , various sizes pistons are acceptable , welcome to contact us for your private needs !
