For Fiat 128mm Connecting Rod - High Performance 4340 EN24 H-Beam Conrod

For Fiat 128mm Connecting Rod - High Performance 4340 EN24 H-Beam Conrod

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Fiat series connecting rod factory
  •               128mm Connecting Rod
  •               Fiat H-Beam Connecting Rods
  •               Engine Forged Con Rod For Fiat
  •               4340 forged H-beam connecting rod 128mm

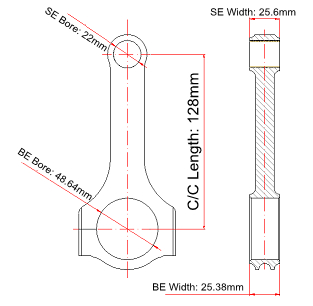

Fiat 128mm Connecting Rod Main Sizes


 Brand: Hurricane
 Center to Center Length: 128mm/5.039"
 Big End Bore Diameter: 48.64mm/1.915"
 Big End Width: 25.38mm/0.999"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 25.6mm/1.008"
 Beam Style: H-beam

Fiat H-Beam Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  550hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Fiat 4340 forged H-beam connecting rod 128mm Description


Hurricane Fiat 128mm H Beam Connecting rods are precision CNC-machined from the finest 4340 Chrome-moly forgings. Each rod is mirco-polished and then full-coverage shot peened. The rods are end to end balanced in sets and then final sized on the big and small ends. Each rod comes with Hurricane Race Specs 3/8 bolts rated at 211,829 psi tensile strength and aluminum-bronze wrist pin bushing. Each set comes complete with (4) rods and (8) rod bolts.

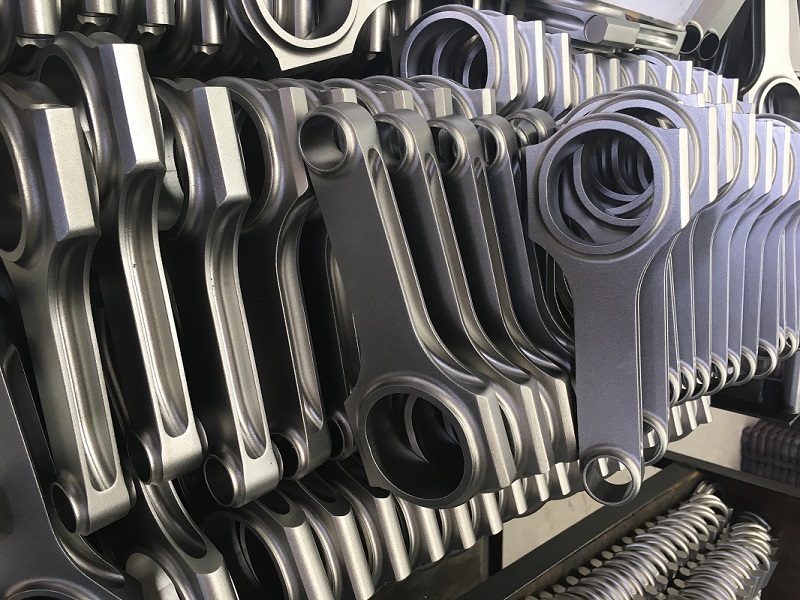

At the picture below, is just one of our conrods progress, you can check more at this page: Hurricane High Performance connecting rods - Process of machining rods




Note: Burring, polishing,(remove burrs and make surface smooth) and shot blasting (Small ball hit surface and make them on surface, increase rods strength with Small ball) are all crucial operations in the making of a competition connecting rod.


Sample is available, Please feel free to Contact our skilled staff to get stock info, price, freight cost and many more.
