Connecting Rod - Toyota 3RZ Chrome-moly

Connecting Rod - Toyota 3RZ Chrome-moly

  • Material: Forged 4340 Steel
  • Copper bush: QAL10-3-1.5
  • Dowel: 40Cr
  • Bolts: 7/16"
  • Competitive Price
  • Quality Assurance
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: Hurricane Connecting Rod Chrome-moly X-Beam 3RZ
  •           CON ROD TOYOTA 3RZ-FE
  •           Toyota 3RZ Conrods - Hurricane Speed and Performance
  •           3RZ race connecting rod
  •           Forged 4340 steel performance 3rz rods

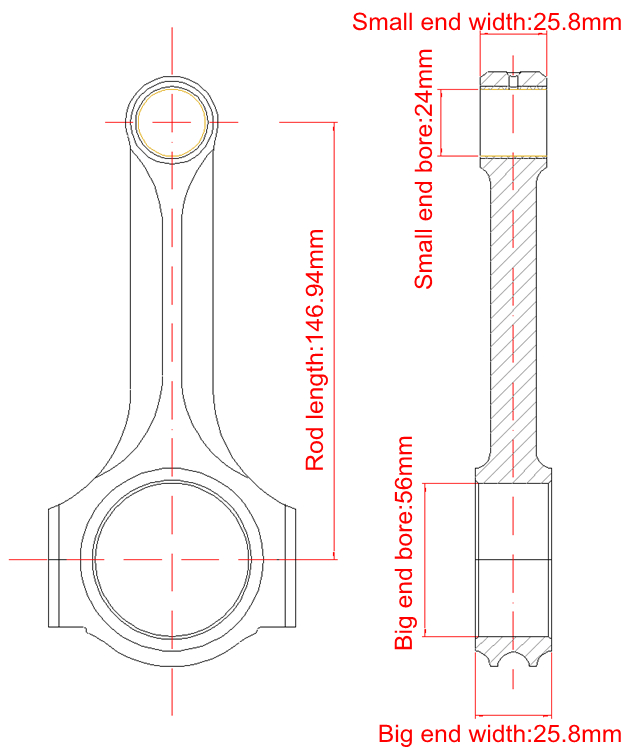

Hurricane Toyota 3RZ connecting rods Main Sizes


 Brand: Hurricane*
 Center to Center Length: 146.94mm/5.785"
 Big End Bore Diameter: 56mm/2.205"
 Big End Width: 25.8mm/1.016"
 Small End Bore Diameter: 24mm /0.945"
 Small End Width: 25.8mm /1.016"
 Beam Style: X-beam

Con rod Toyota 3RZ-FE Connecting Rods Features


 Connecting Rod Bolt Diameter  7/16"
 Approximate Connecting Rod Weight  ~
 Advertised Horsepower Rating  800hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Hurricane Connecting Rod Chrome-moly X-Beam Toyota 3RZ

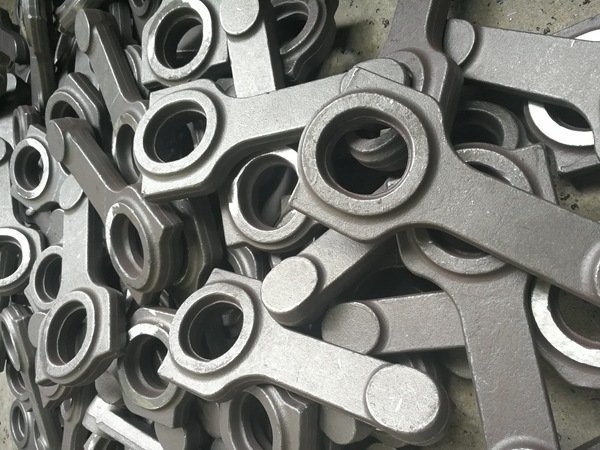

Hurricane X-Beam 4340 Forged Chrome-moly Steel Connecting Rods are manufactured from a one-piece forging process. This process forces the grain into the shape of a connecting rod, resulting in superior fatigue life.

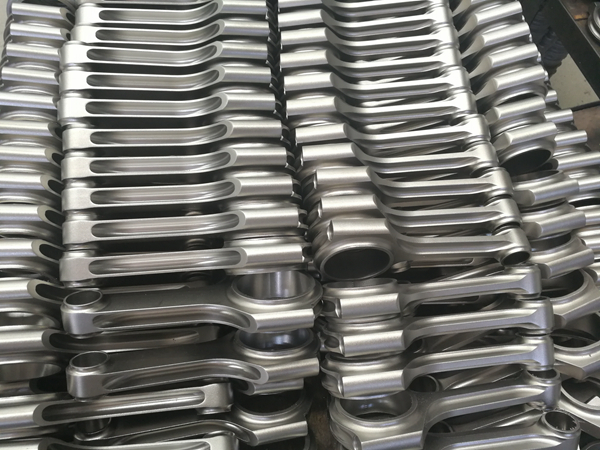

Every rod is shot peening to stress relieve the metal. x-rays, measure, and Magna-fluxes each rod to ensure quality. Every rod is multi-stage heat treated. And if necessary, Hurricane 7/16 bolt can be installed and provided.

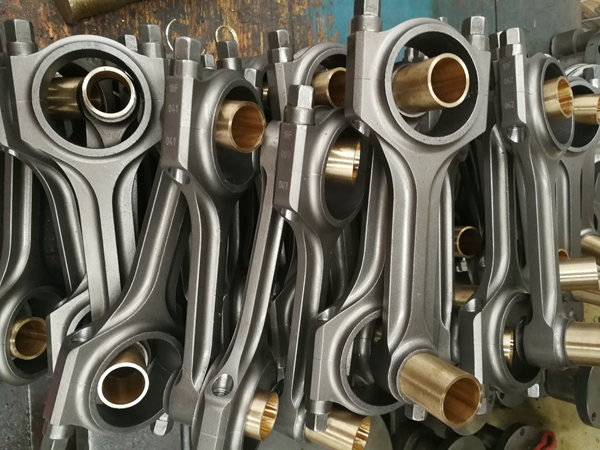

Silicon bronze bushings are inserted for a floating piston pin.


Contact us for further information on Live Chat. Check out www.hurricanerods.com for New Products, Tech Articles, Specials & Custom rods!
