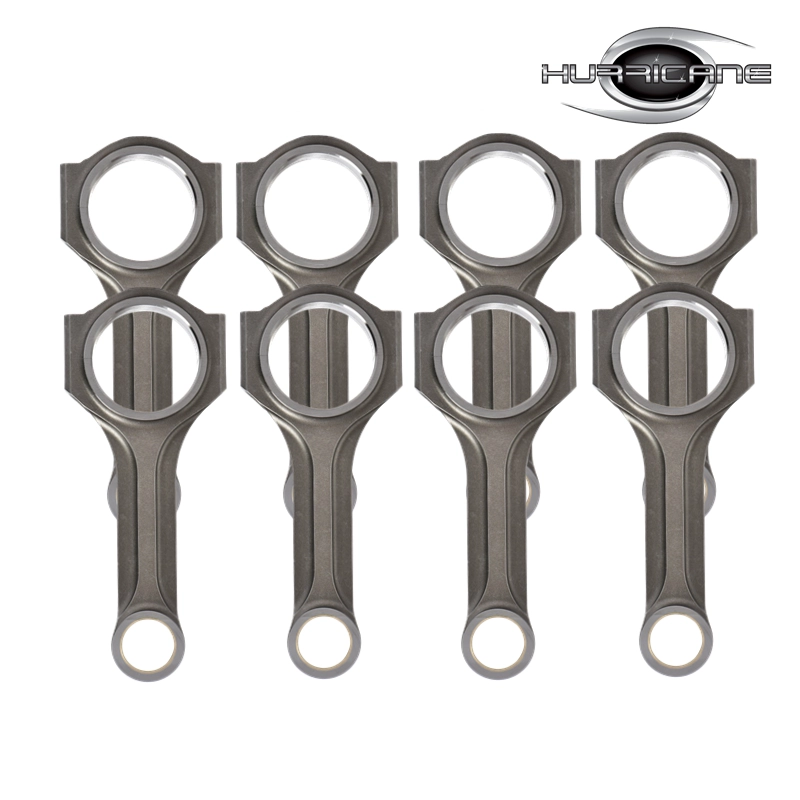

Chrysler Hemi 6.860" X-beam 4340 Forged Connecting Rods

Chrysler Hemi 6.860" X-beam 4340 Forged Connecting Rods

  • Material :Forged 4340 Steel
  • Beam Style: X-beam
  • Bolts Threads: 7/16"
  • MOQ: 100 pieces per model
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union

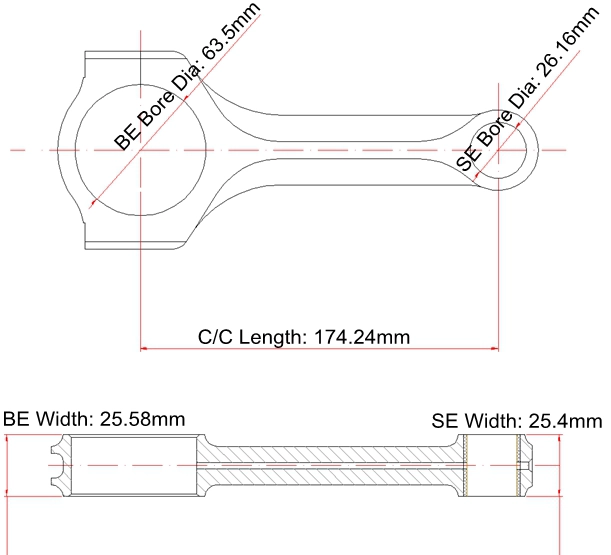

 Chrysler Hemi 6.860" X-beam Conrods Main Dimensions

 Brand: Hurricane*
 Center to Center Length: 174.24mm/6.860"
 Big End Bore Diameter: 63.5mm/2.500"
 Big End Width: 24.95mm/0.982"
 Small End Bore Diameter: 26.16mm /1.030"
 Small End Width: 25.4mm/1.250"
 Beam Style: X-beam

Chrysler Hemi 6.860" X-beam Conrods Features 

 Connecting Rod Bolt Diameter  7/16"
 Approximate Connecting Rod Weight  xxx gram per piece
 Advertised Horsepower Rating 1000 HP
 Quantity  Sold as 8 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g per set
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept

Additional Description :

1). MOQ: 100pcs per model .

2). CNC Machined from premium 4340 forged steel forgings .

3). Finished as X-beam beam shape for weight saving and high strength .

4). Per rod polished fully to remove knife mark better .

5). Shot peeded to relieve stress.

6).Magnaflux inspected and dimensionally inspected to insure quality.

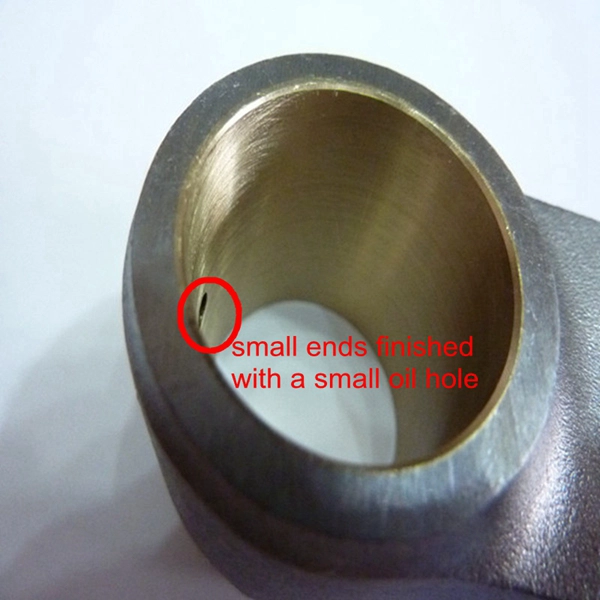

7).Oil hole featured at the pin ends to provide enough lubrication and cooling .

8). Packaged in balanced per set: end to end +/- 1 gram.

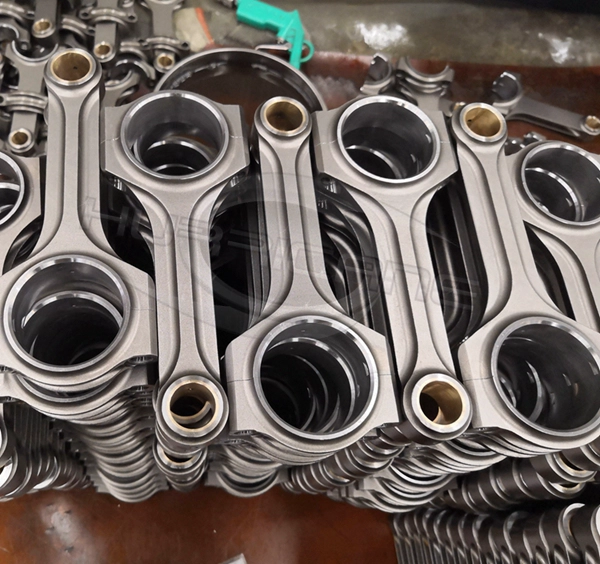

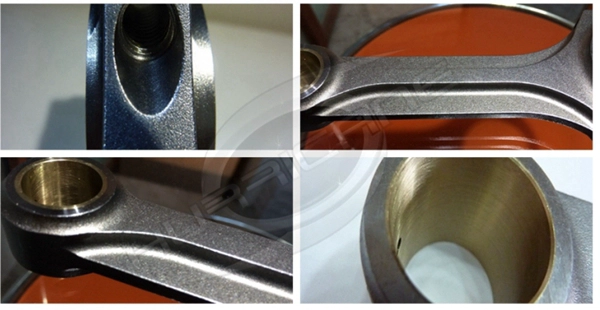

Hurricane finished X-beam connecting rods picture

Welcome to contact us if you any further question. marketing@hurricane-rod.com.cn
