Chevy Small Block 5.565 inch Rod Length Set of 8PCS H-Beam Connecting Rods

Fully CNC Machine

Quality Assurance

Forged 4340 steel4/40CrNiMoA/EN24

Competitive Price

MOQ：80pieces

Delivery Time: If the goods are in stock , the delivery time is 1-3 days.

If the goods are not in stock , the delivery time is 60-65 days .

Payment Terms : T/T , Paypal , Western Union

Keywords:H-Beam Rods Chevrolet 400 Small Block 5.565

Chevrolet 400 Connecting Rods 5.565" Center Length

H-Beam Forged 4340 Steel Connecting Rods Manufacturer

5.565" C/C Length, Forged 4340 H-Beam Rods for the Chevrolet Small Block 5.565" Length

5.565 in Forged H-Beam Connecting Rod SBC 8 pc

Display Parameters Contact Now

Product Details

Brand: Hurricane
Engine: Chevy GM 305/350/400
Part Type: Connecting Rods
Center to Center Length: 141.35mm/5.565"
Big End Bore Diameter: 56.52mm/2.225"
Big End Width: 23.90mm/0.941"
Small End Bore Diameter: 23.55mm /0.927"
Small End Width: 26.95mm/1.061"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Quantity :8pcs/set
Approximate Connecting Rod Weight: 580g/piece
Advertised Horsepower Rating: 1000hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1gram
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

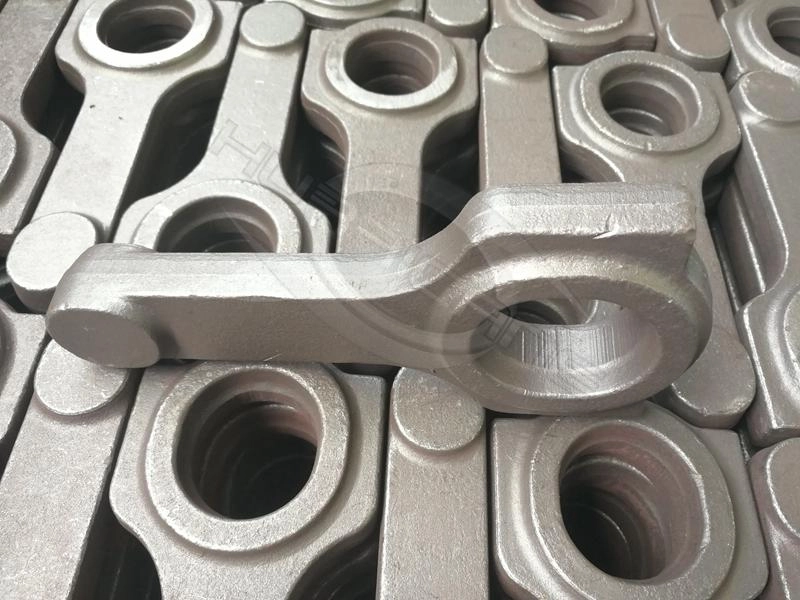

Hurricane GM Chevy H-beam connecting rods are produced from quality 4340 steel, each Chevy rods come in 5.565 inch length are designed and machined for for superior reliability , and magnafluxed and stress relieved for high strength , it can rate 1000HP for GM Chevy SBC engine .

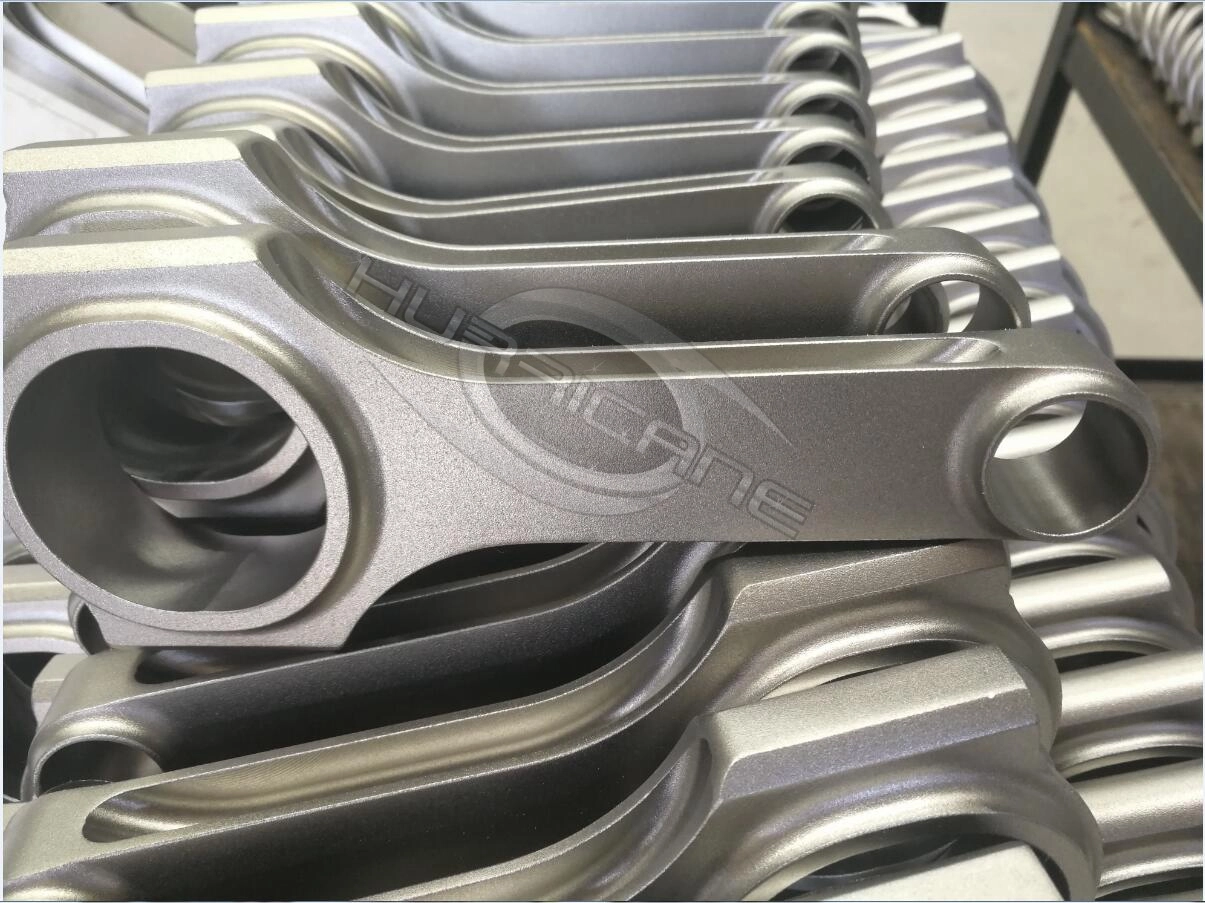

All these Chevy SB rods are polished and shot-peened , so the surface looks very smooth and beautiful .

FAQ

Q: How do you package the rods ?

A: If the rods shipped by air-express , they will be packaged by carton ; If shipped by sea , they will be packaged by iron box . A picture for your review as below :

Q: Which express you can provide ?

A : DHL , TNT , UPS, Fedex, EMS , CDEK and so on .

For further question , you can view more FAQ in here or contact our staffs directly.

Hot Tags : connecting rods chevy Chevy connecting rods Performance rods Chevy SBC forged 4340 connecting rod Chevrolet Small Block Forged 4340 Rods HUR32-001Y5565 Chevy 305/350/400 Forged Rods
