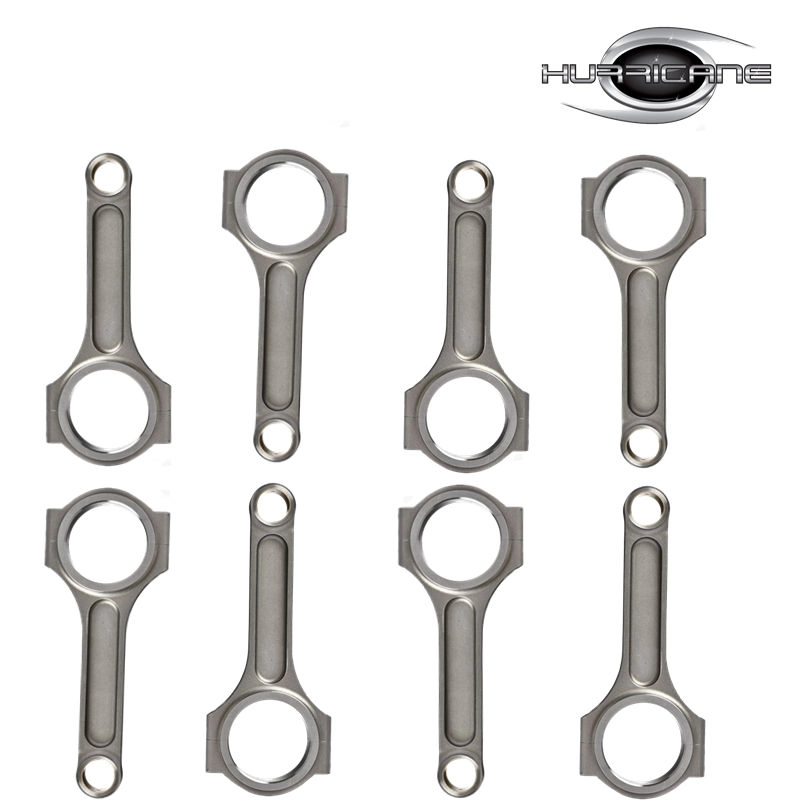

Chevy SBC 283 327 6.000in I-beam Forged Connecting Rods
- Material : 4340 Steel
- Bolts Threads : 7/16"
- High Performance
- Chevrolet Small Block
- 6.000" Rods Center Length
- MOQ: 80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : Chevrolet Small Block Forged Rod
- SBC 4340 Steel I beam Conrods
- Performance 4340 Racing Conrod For SBC Applications
- Racing 4340 Connecting Rods For Chevy 287 327 Small Block

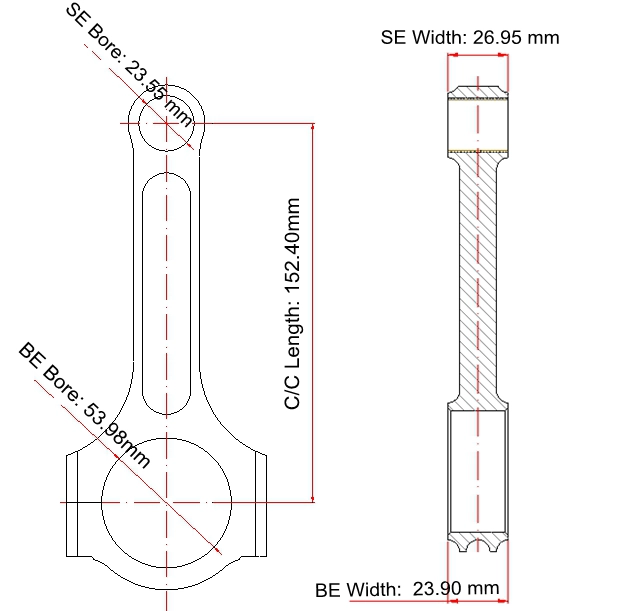

| Brand: Hurricane |  |
| Center to Center Length: 152.40mm/6.000 " | |
| Big End Bore Diameter: 53.98mm/2.125 " | |
| Big End Width: 23.90 mm/0.941 " | |
| Small End Bore Diameter: 23.55 mm/0.927 " | |
| Small End Width : 26.95 mm/1.061 " | |
| Beam Style: I-beam |
Chevy SBC 283 327 Connecting Rods Features
| Connecting Rod Bolt Diameter | 7/16" |
| Approximate Connecting Rod Weight | xxx |
| Advertised Horsepower Rating | 1200hp |
| Quantity | Sold as 8 pieces /set |
| Material | High Tensile Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
Chevy SBC 283 327 Connecting Rods Description

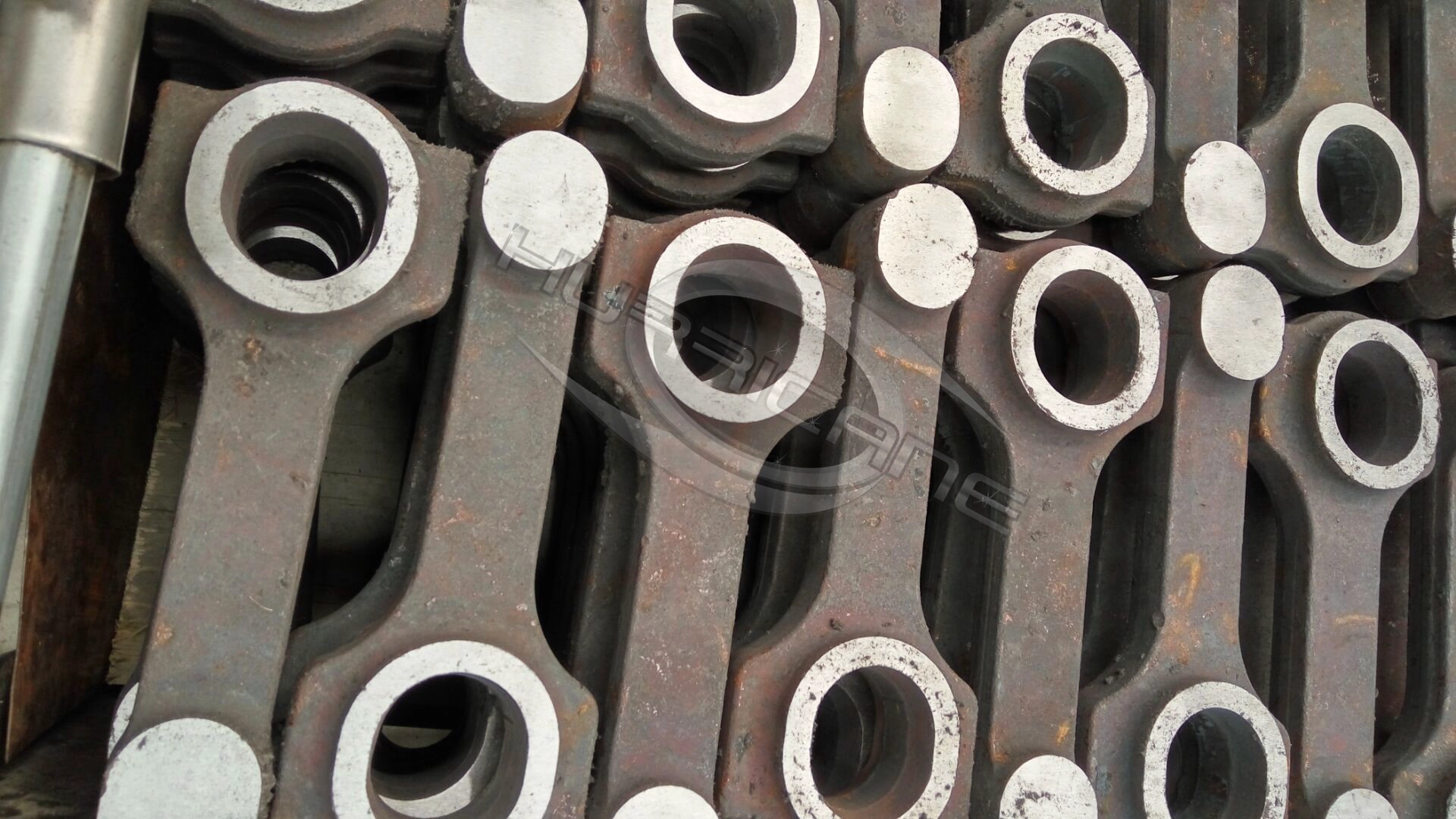

Firstly , all these chevy sbc 283 327 connecting rods forged from high tensile 4340 steel material , but not all 4340 steel connecting rods are same, Hurricane always use top quality 4340 material. All the Hurricane 4340 steel connecting rods heat treated with 34-38HRC and forged as Hurricane strict technical system to meet high quality standard.
Secondly , these rods built as I-beam shape which can handle extreme engine loads to meet your needs of high engine horsepower. Of course , if you are interested in more beam designs , please click here to view a article of Hurricane hot sell beam designs on conrods. If you can not find the beam style you like , please feel free contact us online or email to marketing@hurricane-rod.com.cn. Our experienced staff will be very willing to help you .

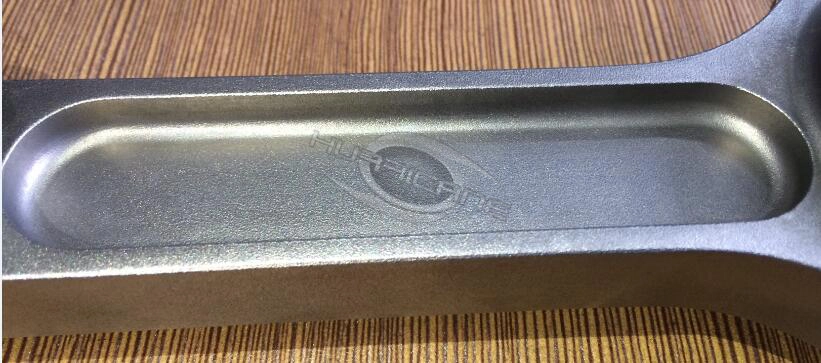

Thirdly, per sbc rod polished and shot peened at Hurricane factory to stress relieved for high fatigue strength. On one hand , it makes the I-beam rods be more reliable in the racing industry; On the other hand, it helps to make the rods' surface become more bright , smooth and beautiful .
Finally , you could click here to watch a factory video at our website Home page , then you can see Hurricane is different compared with other rods supplier in market , we have our own connecting rods factory in Chengdu , Sichuan , China and have 20+ years’ experience . All the staff at the Hurricane team trained well , they can answer and deal with much sales , marketing and technical questions to make you obtain good service .
So welcome to text us online or mail to marketing@hurricane-rod.com.cn if you have any question for Hurricane products or company .
So welcome to text us online or mail to marketing@hurricane-rod.com.cn if you have any question for Hurricane products or company .
