Chevrolet Corvair Connecting Rod set of 6

Chevrolet Corvair Connecting Rod set of 6

  • Material : 40CrNiMoA/EN24/4340
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 5/16
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: Corvair forged steel connecting rods
  •           Corvair engine conrods
  •           Corvair connecting rod length
  •           Custom corvair connecting rods

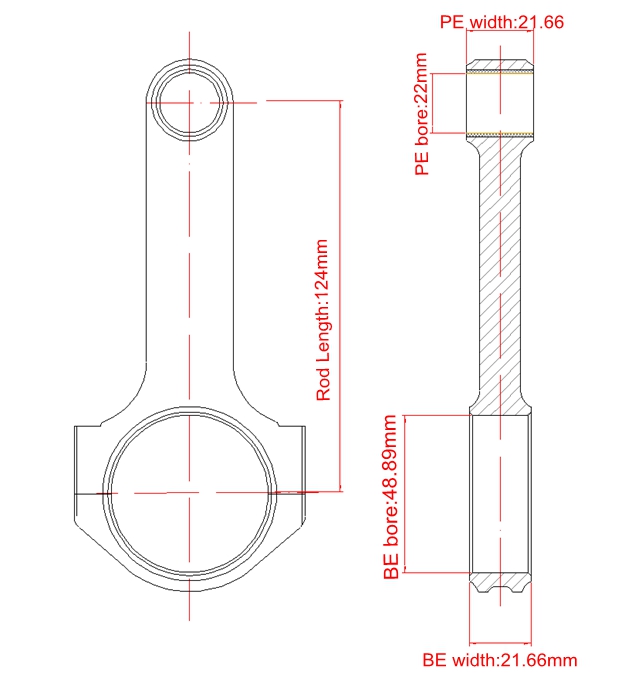

Corvair forged steel connecting rods Main Sizes


 Brand: Hurricane *
 Center to Center Length: 124mm/4.882"
 Big End Bore Diameter: 48.89mm/1.925"
 Big End Width: 21.66mm/0.856"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 21.66mm/0.856"
 Beam Style: H-beam

Hurricane Corvair engine conrods 4.882 Features


 Connecting Rod Bolt Diameter  5/16"
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Chevrolet Corvair FORGED STEEL CONNECTING RODS Description

"At a reasonable price"

Hurricane forged steel connecting rods are a competitive priced alternative to the time and expense involved in racing connecting rods. They are stronger than the OEM connecting rods, these are rated to 600HP. Chevy Corvair rods have two designs available:H-beam and -beam. They are 22mm steel to steel full-floating wrist pin design

Corvair performance rods are custom forged for customer using 4340. They are precision machined with Full CNC machine. They are heat treated to 34-38HRC and then shot peened. They weigh 440 grams which is 10 grams within a batch. The bolts are 5/16 ARP2000 and require special torquing procedures: 45N*M. Hurricane Speed and Performance fully warranty all our products against manufacturing defect.



Feature Products

FAQ

A: What kind of package will you ship for rods?
B: By air, foam package, Neutral white box and Carton; By Ocean, foam package, Neutral white box and iron box.

By air, foam package, Neutral white box and Carton

By Ocean, foam package, Neutral white box and iron box
