Set of 6, Forged BMW E36 M50B25 M50B28 connecting rods, 135mm c/c length
Brand: Hurricane Engine: BMW E36 M50B25 M50B28Part Type: Connecting RodsCenter to Center Length: 135mm/5.315"Big End Bore Diameter: 48mm/1.890"Big End Width: 21.79mm/0.858"Small End Bore Diameter: 22mm /0.866"Small End Width: 21.79mm/0.858"Beam Style: H-beam
-
-Connecting-Rods-Custom-conneting-rods.jpg.webp "China Honda / Acura K Series (K20 & K24) Connecting Rods - Custom conneting rods manufacturer")
Honda / Acura K Series (K20 & K24) Connecting Rods - Custom conneting rods
Brand: Hurricane Engine: Honda K24Part Type: Connecting RodsCenter to Center Length: 151.99mm/5.984"Big End Bore Diameter: 51.006mm/2.008"Big End Width: 19.8mm/0.780"Small End Bore Diameter: 22.015mm /0.867"Small End Width: 19.8mm/0.780"Beam Style: H-beam
-
Racing Forged Conrod For BMW N54B30 N54(Connecting Rod)| Hurricane
Brand: Hurricane Engine: BMW N54B30 N54Part Type: Connecting RodsCenter to Center Length: 145mm/5.709"Big End Bore Diameter: 53.6mm/2.110"Big End Width: 20.86mm/0.821"Small End Bore Diameter: 22mm /0.866"Small End Width: 20.90mm/0.823"Beam Style: H-beam
-
H beam Honda Acura RSX 2.0 VTEC K20 K20A K20A2 connecting rods
Brand: Hurricane Engine: Honda Acura RSX 2.0 VTEC K20 K20A K20A2Part Type: Connecting RodsCenter to Center Length: 138.98mm/5.472"Big End Bore Diameter: 51mm/2.008"Big End Width: 19.8mm/0.7795"Small End Bore Diameter: 22mm /0.8661"Small End Width: 19.8mm/0.7795"Beam Style: H-beam
News
Hurricane Factory VW Air Cooled Forged Steel Crankshaft Info
2019-07-12 09:16:56
Hurricane factory manufactured in a wide variety of strokes with either VW or Chevy journals to fit your exact engine configuration. All of hurricane ...
Hurricane Connecting Rod Features - Various Beam Designs
2017-10-08 13:11:22
With many years experience of designing, developing , engineering and manufacturing in the connecting rods fields, Hurricane has ability to handle different customers needs on connecting rods designs . Except connecting rods shoulder and small end, Hurricane also can build various connecting rods beam style .
Hurricane High Performance connecting rods - Process of machining rods
2017-09-19 10:13:15
Main rods includes Chevy,Ford, Harley Davidson, VW & Audi, Opel, Honda, Nissan,Subaru, Mitsubishi, Toyota, Isuzu, Suzuki, Mazda, Buick, BMW, Chrysler & Dodge, Fiat
Here in the following process of pictures are the 13 major operations undertaken in the production of Hurricane Speed&Performance:
The difference of the connecting rod manufacturing process: Forged vs Billet
2017-05-30 22:40:17
Forging and billet as two different manufacturing processes to make high performance connecting rods, both can produce strong finished produc

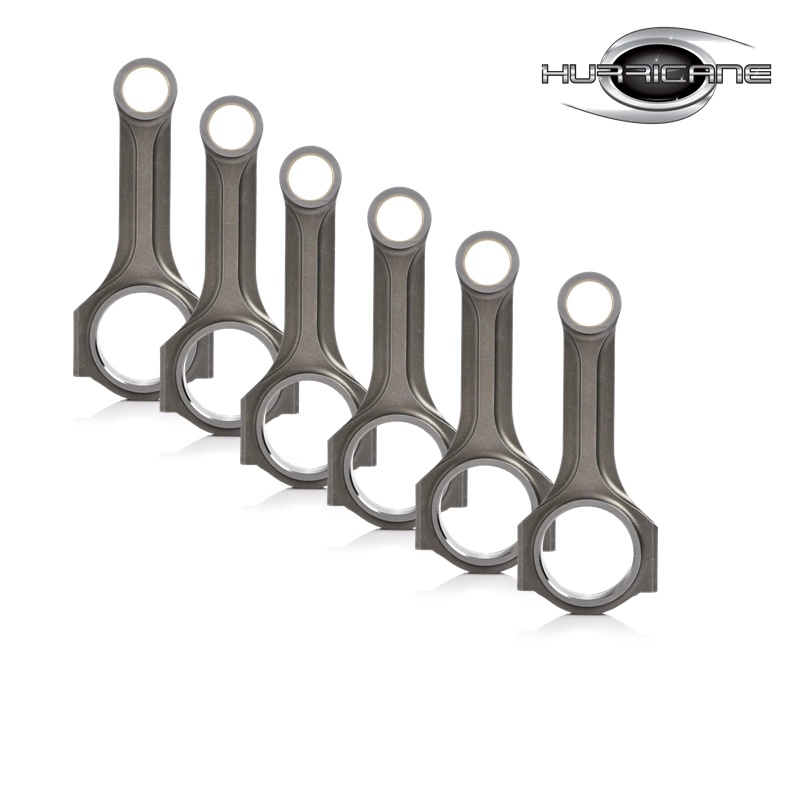

Buick V6 5.600" X-beam Forged Connecting Rods
- Material : 4340 Steel
- Bolts : 3/8"
- High Performance
- Buick racing applications
- MOQ: 100 pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T, Paypal, Western Union
- Keywords :Buick connecting rod
- Buick V6 racing rods
- Buick V6 x-beam forged con rod
- High performance Buick V6 forged steel rods
- Product Details

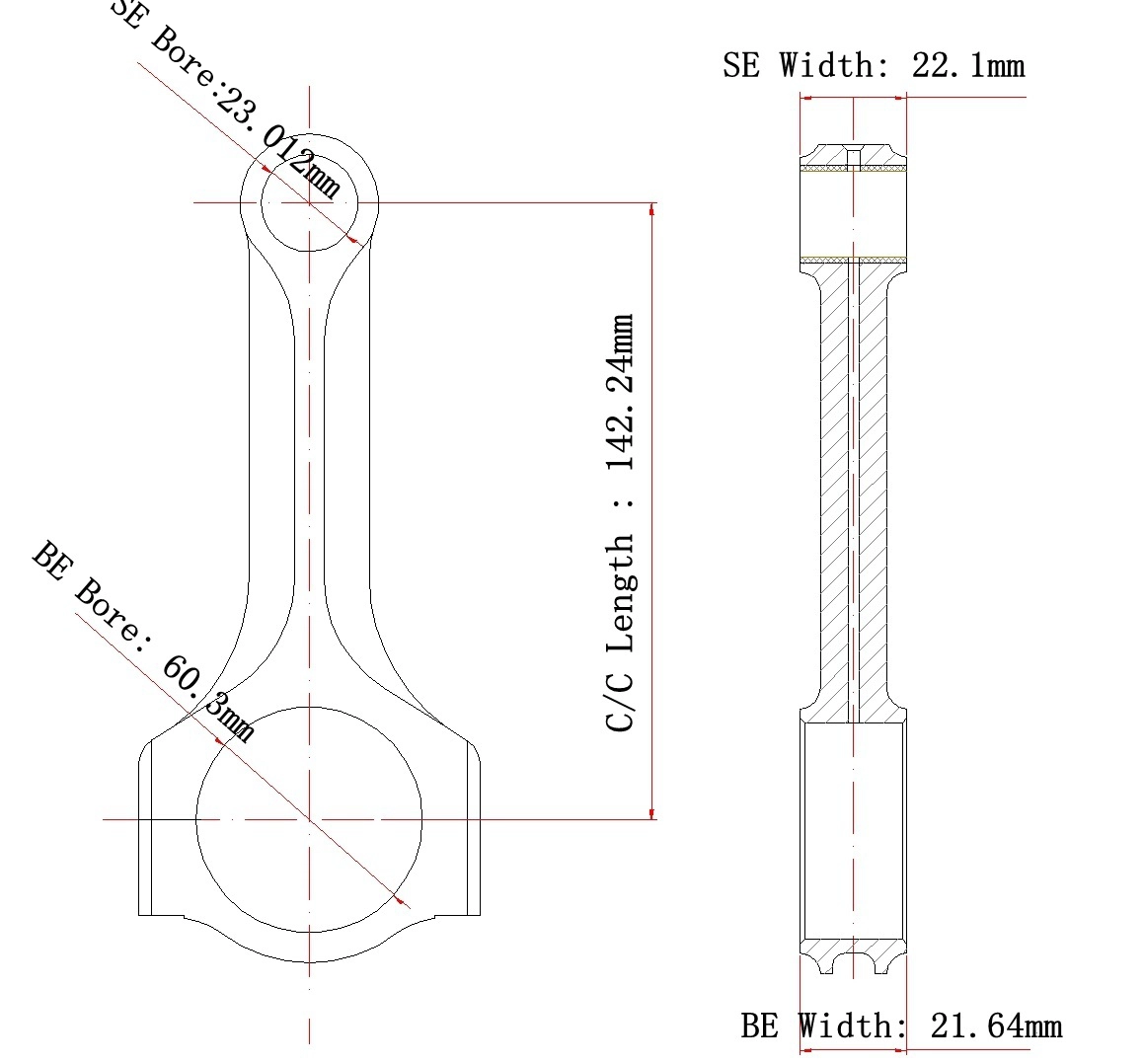

| Brand: Hurricane |  |
| Center to Center Length: 142.24mm/5.600" | |
| Big End Bore Diameter: 60.3mm/2.374" | |
| Big End Width: 21.64mm/0.852" | |
| Small End Bore Diameter: 23mm /0.906" | |
| Small End Width : 22.1mm/0.870" | |
| Beam Style: X-beam |
Buick V6 X Beam Forged Con Rod Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | xxx |
| Advertised Horsepower Rating | 900hp |
| Quantity | Sold as 6 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes, Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
Buick V6 Forged stell Connecting Rods Description
These Buick V6 performance X beam 4340 forged chromoly connecting rods are magnaflux inspected to ensure extreme reliability , shot peened for a higher fatigue life , Multi-stage heat treated for high strength. Packed with sets of 6, perfect for engines producing 900+ HP, they can handle extreme engine loads. In addition, all these connecting rod assemblies to almost same weight sets to sets , matched weight sets within 2 gram.
This X-beam style rod is combination with lighter and stronger perfectly, and engineered to chamfer shoulder to make the surface be more stereoscopic and beautiful .
Custom connecting rods can be ordered at Hurricane , Hurricane have 20+ years experience on designing and producing connecting rods for professional racing engines, we can manufacture strong rods to meet your specific needs and performance levels that you want to reach .
Buick Riviera Car
Note: Picture from Wikipedia.
