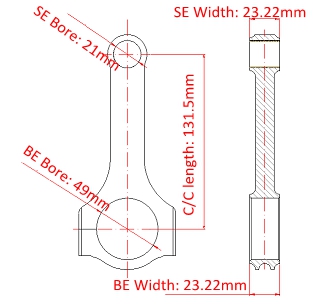

MINI Cooper S Rods Main Sizes
Brand: Hurricane*
Center to Center Length: 131.5mm/5.177"
Big End Bore Diameter: 49mm/1.929"
Big End Width: 23.22mm/0.914"
Small End Bore Diameter: 21mm /0.827"
Small End Width: 23.22mm/0.914"
Beam Style: H-beam
MINI cooper S 131.5mm Connecting Rods Features
Connecting Rod Bolt Diameter
3/8"
Approximate Connecting Rod Weight
XXX
Advertised Horsepower Rating
600HP
Quantity
Sold as 4 pieces /set
Material
Forged 4340 steel
Connecting Rod Finish
Shot-peened, Polished
Pin
Bronze wrist pin bushings
Wrist Pin Style
Floating
Cap Retention Style
Cap screw
Weight Matched Set
Yes ,Balanced +/- 1g
Magnafluxed
Yes
Private Label
Yes ,available
Custom design
Yes, accept
BMW/Mini Cooper S Tritec Connecting Eods Description
Hurricane factory strives to bring customers quality guaranteed connecting rod at an affordable price. Premium 4340 steel is used to manufacture all of hurricane connecting rods. BMW/Mini Cooper S Tritec connecting rods Shot peenning finish provides for longer life and Bronze bushings allow for a full-floating pin. Those Mini Cooper S 131.5mm connecting rods are honed in-house and sizes are held to accepted tolerances in the industry. H-Beam Steel Connecting Rod for BMW Mini Tritec 131.5mm are designed for high-stress racing applications and could reach 600 horsepower.

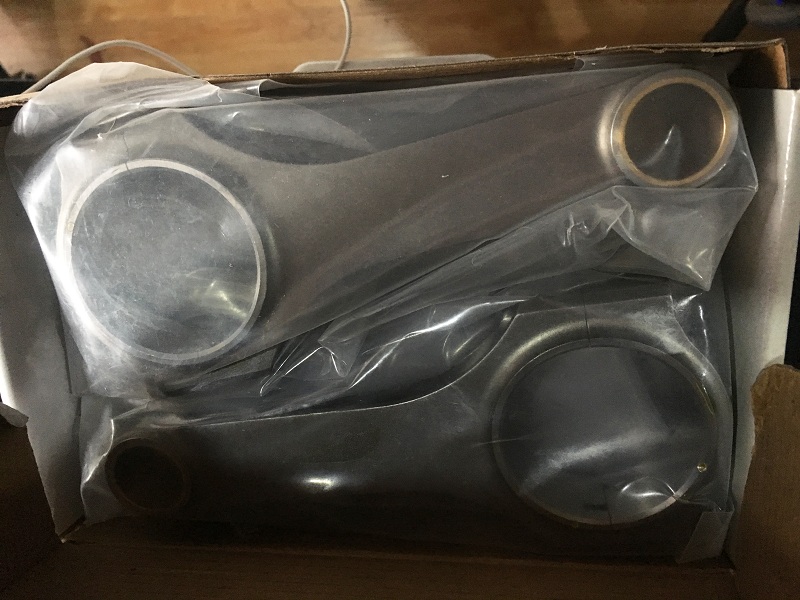

Note: MINI Cooper S Rods are weight-matched into sets and boxed
If you have any interests for our product, please feel free to contact us.
Mini cooper S Race Car
Note: Picture from Pinterest.
