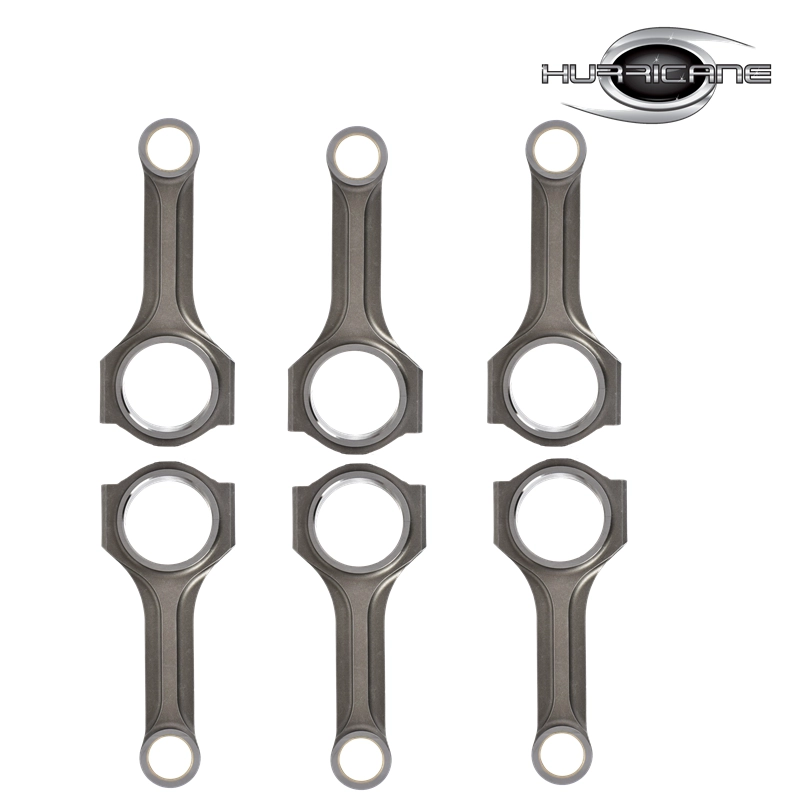

BMW E92 335i N54 3.0L X beam Connecting Rods 145mm

BMW E92 335i N54 3.0L X beam Connecting Rods 145mm

  • Vehicle: BMW Z4 35i 135i 335i 535i N54B30
  • Material : 40CrNiMoA (4340 Steel)
  • Bolts : 3/8"
  • Competitive Price
  • High Performance
  • X-beam design
  • MOQ: 90 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :N54B30 Connecting Rods
  •           BMW E92 335i N54 3.0L Connecting Rod
  •           X-beam Forged connecting rods for BMW N54 3.0L
  •           Forged 4340 Steel Connecting Rod For BMW N54B30 engine
  •           Forged Connecting Rods BMW Z4 35i 135i 335i 535i N54B30

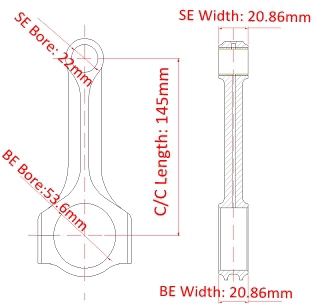

N54B30 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 145mm/5.709"
 Big End Bore Diameter: 53.6mm/2.110"
 Big End Width: 20.86mm/0.821"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 20.86mm/0.821"
 Beam Style: X-beam


BMW E92 335i N54 3.0L Connecting Rod Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000HP
 Quantity  Sold at 6 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes, Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept

X-beam Forged Connecting Rods for BMW N54 3.0L Details

Forged 4340 Steel Connecting Rod For BMW N54B30 engine are machined from proprietary forged steel,  produced through CNC machining and finished to the final specification.BMW E92 335i N54 3.0L Connecting Rod are polished, shot peened, dimensionally inspected and balance weighted in +/-1 gram per set. Hurricane N54B30 connecting rods strength, high quality, and excellent finish have satisfied many customers.These are the perfect choice for engines up to1000 hp

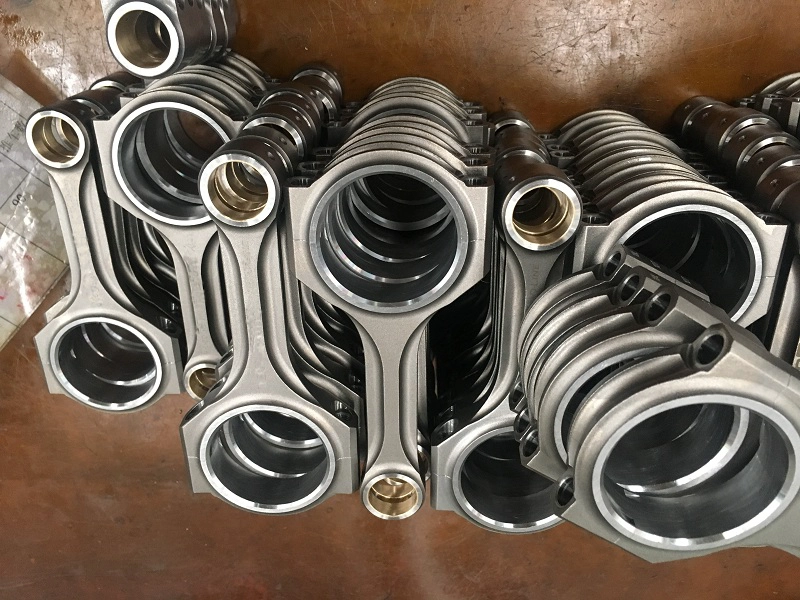

Note: This is our finishedForged Connecting Rods BMW Z4 35i 135i 335i 535i N54B30 and ready for packing.X beam design adds a cross brace down the length of the rod shaft to improve rigidity and strength, X-beam Forged connecting rods for BMW N54 3.0L are very strong and resist cracking.

Fitting Info

 Make  Model  Engine
 BMW  E60 535i&535xi  N54B30
 BMW  E61 535xi  N54B30
 BMW  E71X6 35iX & X6 xDrive35i  N54B30
 BMW  E821 M Coupe & 135i  N54B30
 BMW  E88 135i  N54B30
 BMW  E90 335i & 335xi  N54B30
 BMW  E92 335i & 335is & 335xi  N54B30
 BMW  E93 335i & 335is  N54B30
 BMW  Z4  N54B30
 BMW  F01  N54B30

Thanks for checking hurricane products at our websites, Any questions please feel free to contactHurricane team, we are wating to hear from you.
