BENZ 605 Forged Steel 4340 Connecting Rod CC 149 mm

BENZ 605 Forged Steel 4340 Connecting Rod CC 149 mm

  • Vehicle: BENZ 605
  • Material : 40CrNiMoA (4340 Steel)
  • Bolts : 3/8"
  • Competitive Price
  • High Performance
  • H-beam
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : BENZ 605 Connecting Rods
  •            4340 Forged Connecting Rod BENZ 605
  •            BENZ 605 Connecting Rod with 149mm CC Length

BENZ 605 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 149mm/5.866"
 Big End Bore Diameter: 51.61mm/2.032"
 Big End Width: 22.00mm/0.866"
 Small End Bore Diameter: 28.00mm /1.102"
 Small End Width: 22.00mm/0.866"
 Beam Style: H-beam

BENZ 605 Connecting Rods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  550hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

BENZ 605 Connecting Rods Manufacturing Process


Hurricane connecting rods machined for high performance racing applications , all the rods finish with high technical standard to meet high quality needs . We only show some production process in here, if you are interested in more details , please feel free contact us . And welcome to search “Hurricane connecting rods video” on google to view more production videos.

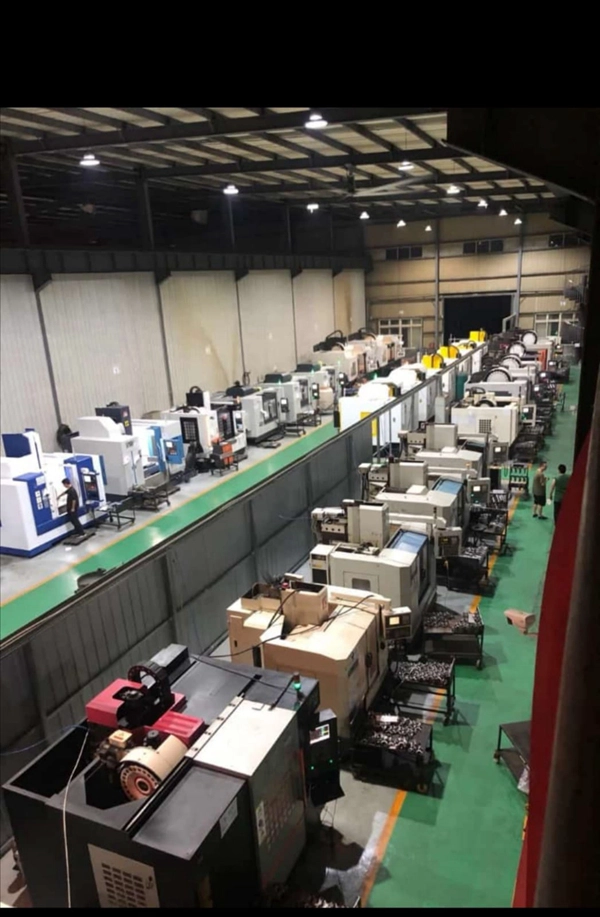

Hurricane factory workshop

Chengdu hurricane speed and performance co., ltd
