Alfa Romeo 2.0L 157x22 H beam Connecting rods
- Material : 4340 Steel
- Copper bush : QAL10-3-1.5
- Dowel : 40Cr
- Bolts : 3/8"
- Competitive Price
- Quality Assurance
- MOQ: 80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : Engine components factory China
- Alfa Romeo 157mm conrods
- H-Beam Connecting Rods Alfa Romeo 157mm
- 4340 EN24 H-Beam connecting rods for Alfa Romeo
- Connecting Rod for Alfa Romeo nord 2000 157mm
- Product Details
Alfa Romeo 157mm conrods Main Sizes
| Brand: Hurricane * |  |
| Center to Center Length: 157mm/6.181" | |
| Big End Bore Diameter: 53.7mm/2.114" | |
| Big End Width: 26.72mm/1.052" | |
| Small End Bore Diameter: 22mm /0.866" | |
| Small End Width: 22.86mm/0.900" | |
| Beam Style: H-beam |
H-Beam Connecting Rods Alfa Romeo 157mm Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | XXXg |
| Advertised Horsepower Rating | 550hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
Connecting Rod for Alfa Romeo nord 2000 157mm Description

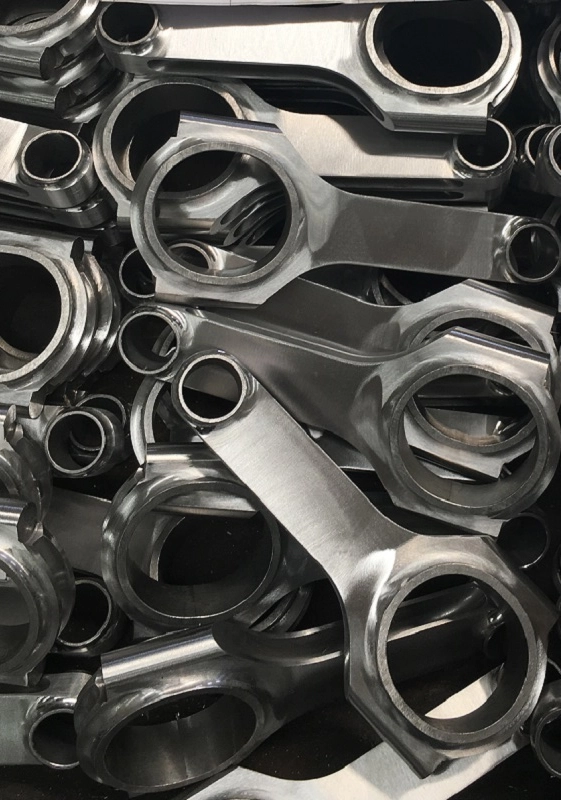

Those Alfa Romeo 157mm conrods are made from forged 4340 Chrome Moly Steel, designed to H beam for the highest strength, durability and dedicated for Racing. Connecting rod for Alfa Romeo Nord 2000 157mm are fully CNC machine and shot peened for higher fatigue strength, also are optimal balancing for weight matched sets within +/- 1g. Alfa Romeo 4340 EN24 H -beam connecting rods all big, small ends are honed to use size by SUNNEN honing machine.
Note: Burring, polishing,(remove burrs and make surface smooth) and shot blasting (Small ball hit surface and make them on surface, increase rods strength with Small ball) are all crucial operations in the making of a competition connecting rod. You can check more detailed information at: Hurricane High Performance connecting rods - Process of machining rods Or check our opreations at Youtube Viedo: How it's made: Connecting rod
4340 EN24 H-Beam connecting rods for Alfa Romeo FAQs
1, What is your connecting rod MOQ, Could you accept customized connecting rod order?
MOQ: 80 pieces and Yes, there are 2 ways to start business:
1. Provide used sample or full drawing to us directly.
2. Download and Fill: Hurricane Speed & Performance - Custom Connecting Rod Form
If you still have any concerns,welcome to contact us online.
2, What is the bolt torque required on rods?
Copy ARP2000 5/16-1.500” 45N*m
Copy ARP2000 3/8 -1.600” 75N*m
Copy ARP2000 7/16-1.600” 95N*m
Copy ARP2000 3/8 -1.600” 75N*m
Copy ARP2000 7/16-1.600” 95N*m
3, Could you provide logo printing(private label) service on connecting rods?
Yes, Welcome to contact our skilled staff and discuss more.
