6.200 C/C length, Ford h beam connecting rod set for 351 WINDSOR
- Competitive Price
- Quality Assurance
- MOQ:80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: FORD 351 WINDSOR
Part Type: Connecting Rods
Center to Center Length: 157.48mm/6.200"
Big End Bore Diameter: 56.52mm/2.250"
Big End Width: 23.88mm/0.940"
Small End Bore Diameter: 23.55mm /0.927"
Small End Width: 26.92mm/1.060"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 660g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
A higher quality connecting rod will typically have a superior heat treatment that improves tensile and yield strength, also will usually have a better surface treatment that reduces the risk of stress fractures and rod failure. Hurricane ford 351 WINDSOR connecting rod have the ability to reach above standards because of the facts:
Engine: FORD 351 WINDSOR
Part Type: Connecting Rods
Center to Center Length: 157.48mm/6.200"
Big End Bore Diameter: 56.52mm/2.250"
Big End Width: 23.88mm/0.940"
Small End Bore Diameter: 23.55mm /0.927"
Small End Width: 26.92mm/1.060"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 660g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes, Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
Ford 351 6.200 connecting rods Descripition
As with all Hurricane performance connecting rods, our Ford Series h beam conrods are finished in the advance CNC machinery and designed to withstand the abuse from today’s high rpm naturally aspirated engines as well as high horsepower forced induction applications. This Ford 351 6.200" connecting rods features premium 7/16” bolts. 0.927 Wrist Pin / 0.940 Big End Width / 2.225 Big End Bore.
A higher quality connecting rod will typically have a superior heat treatment that improves tensile and yield strength, also will usually have a better surface treatment that reduces the risk of stress fractures and rod failure. Hurricane ford 351 WINDSOR connecting rod have the ability to reach above standards because of the facts:
1.100% premium AISI4340 forged billet steel
2.Strict forge and heat treatment processed forgings, hardness of 34-38 HRC.
3..Mirco polishing and shot blasting.
4..Bend and twist is tightly controlled
3..Mirco polishing and shot blasting.
4..Bend and twist is tightly controlled
Note: The ford small block 351 forged connecting rods are very beautiful and tough after shot peened progress.

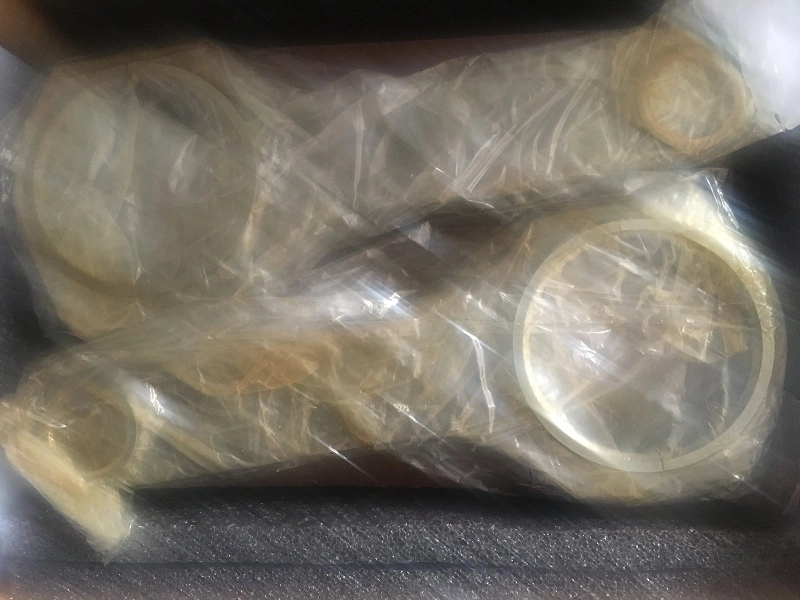

connecting rod for ford 351 windsor Package
Those connecting rods for Ford 351 Windsor engine are balance weighted in + / - 1g and packaged in 8 pieces per set. we will put foam or cardboard in the box in order to make sure the conrods will not collision in transit. any question, please feel free to contact hurricane sales team or leave your message below. you will get replied within 24 hours.
