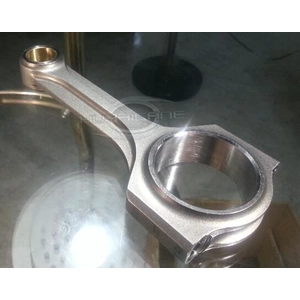

With many years experience of designing, developing , engineering and manufacturing in the connecting rods fields, Hurricane has ability to handle different customers needs on connecting rods designs . Except connecting rods shoulder and small end, Hurricane also can build various connecting rods beam style .
The Performance Racing Industry Trade Show (PRI) took place through 7-9 December 2023 in Indianapolis, Indiana.
Honda F20C Connecting Rods Main Sizes
Brand: Hurricane
Center to Center Length: 152.984mm/6.023"
Big End Bore Diameter: 51.003mm/2.008"
Big End Width: 23.85mm/0.939"
Small End Bore Diameter:23.015mm/0.906"
Small End Width: 22mm/0.866"
Beam Style: H-beam
Honda F20C Connecting Rods Features
Connecting Rod Bolt Diameter
3/8"
Approximate Connecting Rod Weight
503g/piece
Advertised Horsepower Rating
550hp
Quantity
Sold as 4 pieces /set
Material
Forged 4340 steel
Connecting Rod Finish
Shot-peened, Polished
Pin
Bronze wrist pin bushings
Wrist Pin Style
Floating
Cap Retention Style
Cap screw
Weight Matched Set
Yes ,Balanced +/- 1g
Magnafluxed
Yes
Private Label
Yes ,available
Custom design
Yes, accept
Honda F20C Connecting Rods Description
Each Honda F20C rods is made from high tensile 4340 EN24 aircraft chrome moly forged steel, designed and CNC machined to H-beam design, H-beam rod increases twisting strength and rod reliability, and each F20C rods featured dual oil at the small ends to provide additional lubrication and cooling, which leads to an more stronger rod.
Also bronze wrist pin bushings are fitted to all the F20C rods for increased wear resistance.
Same with all the high performance 4340 forged connecting rods in racing industry, all the F20C rods 100% X-rayed, sonic tested , magnafluxed and shot peened for improved fatigue life.
Each F20C connecting rods sold as 4 pcs/set , and packaged in balanced sets end to end +/- 1 gram.
Hurricane also provide X-beam style for Honda F20C/S2000 applications ,click here to view more details : Hurricane Speed & Performance -4340 Chrome-Moly F20C/S2000 X-beam Connecting Rods .
