4032 Forged Racing Pistons For Audi VW 1.8L  20MM Pin 83.5MM Bore4032 Forged Racing Pistons For Audi VW 1.8L  20MM Pin 83.5MM Bore4032 Forged Racing Pistons For Audi VW 1.8L  20MM Pin 83.5MM Bore

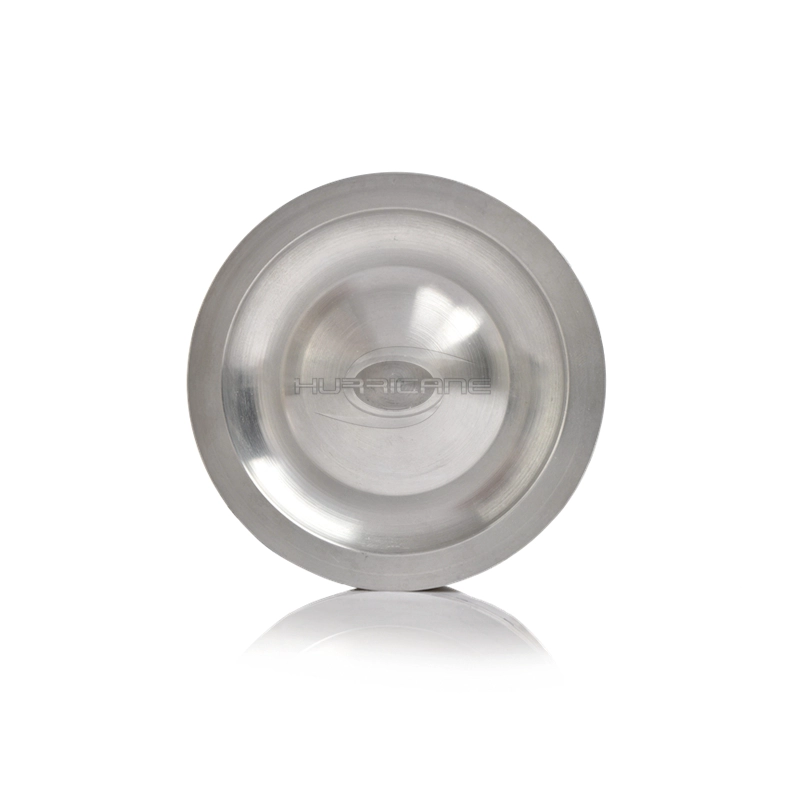

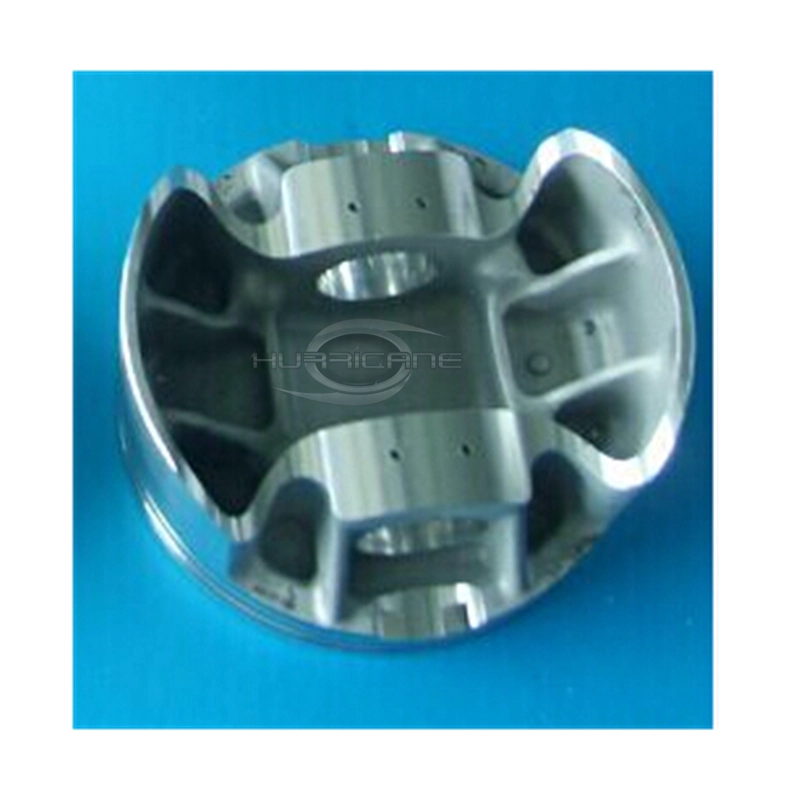

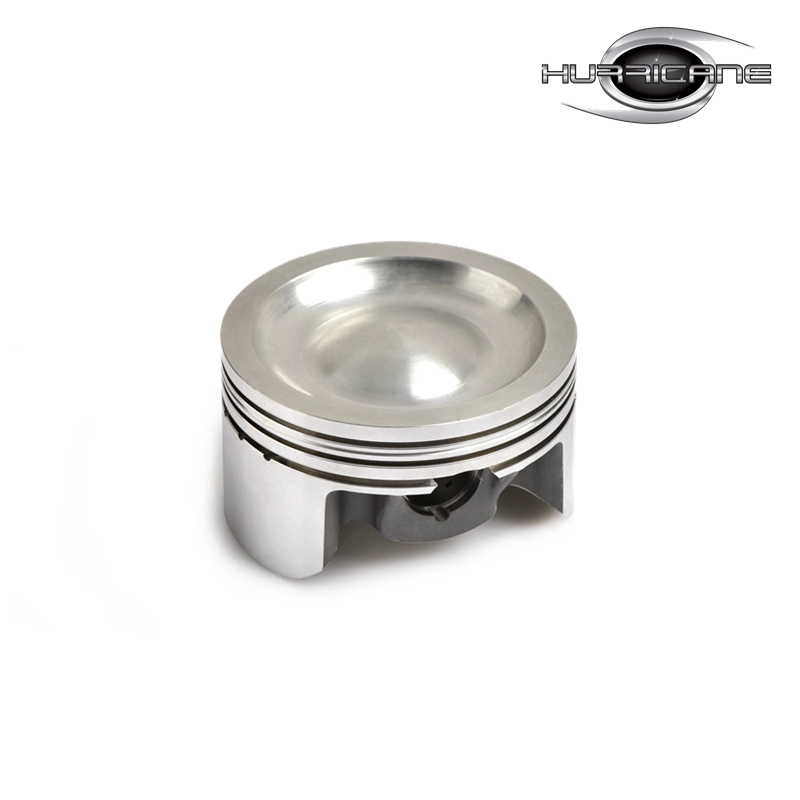

4032 Forged Racing Pistons For Audi VW 1.8L 20MM Pin 83.5MM Bore

  • Fast Shipping    Great Price Guarantee
  • Tech Advice      Easy Returns
  • Forged Pistons,4032 Aluminum, Hurricane, Flat, 83.5MM Bore ,Audi VW 1.8L
  • Set of 4
  • Part Number: VW-00301
  • Estimated lead time: 35-45days
Brand: Hurricane
Part Number: VW-00301
Engine model: VW 1.8L
Material: 4032 Forged Aluminum
Bore: 3.287in/83.50mm
Pin Diameter: 0.787 in/20mm
Total Height : 1.890in/ 48mm
Piston Style: Flat Top
Wrist Pin Included: No
Piston Ring: 1.50mm x 1.50mm x 3.0mm
Piston Rings Included: No
Highly compacted : 0.886in/22.5mm
Quantity: Sold as a set of 4
MOQ : 400pcs

These forged pistons have been designed for VW/Audi applications, made from high tensile 4032-T6 forged aluminum, fully CNC machined in Hurricane factory , all pistons balanced within 2 gram, each piston are fully inspected during production, include property paramater of metal Inspection, Chemical Inspection, Mechanical Inspection, Hardness Inspection and Over sintering Inspection.

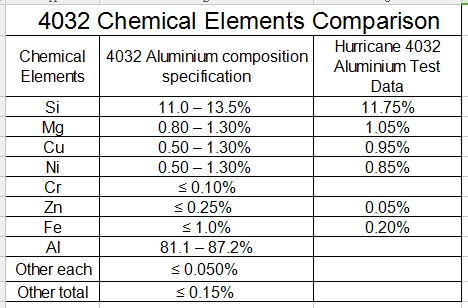

Hurricane 4032 Aluminium Test Report as follow :

Hurricane start to produce high performance forged pistons from 2013, Standard and Custom Pistons are acceptable, fully finish machine 4032 billet piston and half-finish machine 4032 forged piston are available . And if we have suitable mold and fixture for the piston , the delivery time of forged pistons approx 45days ; If the mold and fixture is unavailable , The delivery time approx 70days , the details as below :

Developing mold and purchase blank:1month
Prepare order: 2week
Production time: 25-30days

Welcome to contact us for your any needs for pistons !
