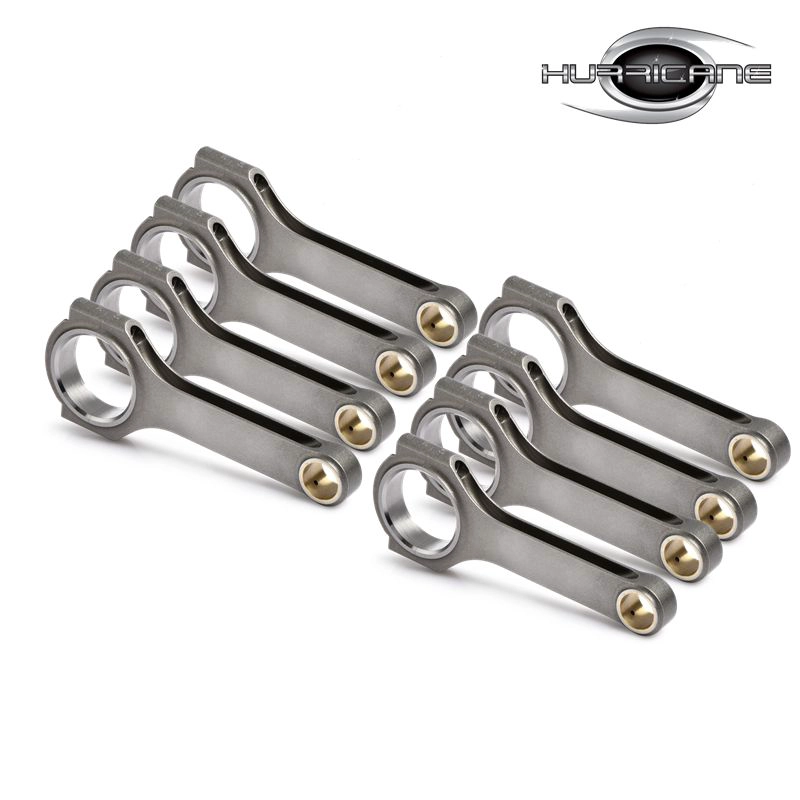

5.155 in Forged H-Beam Connecting Rods for Small Block Ford 289/302 , Set of 8pcs
- Competitive Price
- Quality Assurance
- MOQ：80pieces
- Material : Forged 4340 Steel
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane*
Engine: Ford 4.7L/289, 5.0L/302
Part Type: Connecting Rods
Center to Center Length: 130.94mm/5.155"
Big End Bore Diameter: 56.87mm/2.239"
Big End Width: 21.13mm/0.832"
Small End Bore Diameter: 23.19mm /0.913"
Small End Width: 26.95mm/1.061"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
These 5.155” length H-Beam Connecting Rods designed for the Small Block Ford 289 and 302 Engines, Made from high strength 4340 steel material , 100% forged in Hurricane CNC machine center, All rods are Shot peened and mirco polished to reduce the risk of stress fractures and rod failure , to meet high performance Ford racing applications needs .
Engine: Ford 4.7L/289, 5.0L/302
Part Type: Connecting Rods
Center to Center Length: 130.94mm/5.155"
Big End Bore Diameter: 56.87mm/2.239"
Big End Width: 21.13mm/0.832"
Small End Bore Diameter: 23.19mm /0.913"
Small End Width: 26.95mm/1.061"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
These 5.155” length H-Beam Connecting Rods designed for the Small Block Ford 289 and 302 Engines, Made from high strength 4340 steel material , 100% forged in Hurricane CNC machine center, All rods are Shot peened and mirco polished to reduce the risk of stress fractures and rod failure , to meet high performance Ford racing applications needs .
All the Hurricane rods specs tolerance controled in a good standard , more importantly , some tolerance could be adjusted based your expectation , please confirm with our experienced staff if you have special request on that .
Per rod heat treated before threads tapped to protect the threads well , and the genuine ARP bolts are suitbale for these rods, you can install the ARP bolts on the rods easily . Hurricane also supply connecting rods bolts , please feel free contact us if you are interested , you also can view some details in here . -Hurricane Connecting Rod Bolt Information
